The solar powered irrigation valve can be applied in agricultural irrigation, like slope orchards, woodlands, nurseries, vegetable
bases, tea plantations,greenhouse micro-spraying, fruit tree drip irrigation, farmland irrigation, greenhouse seedling raising,
open-air vegetable fields, greenhouse irrigation, fungus moisturizing. And it also can be applied in urban greening project like
lawn watering, overhead bridge flower planter, green belts in urban streets and districts, vertical greening.

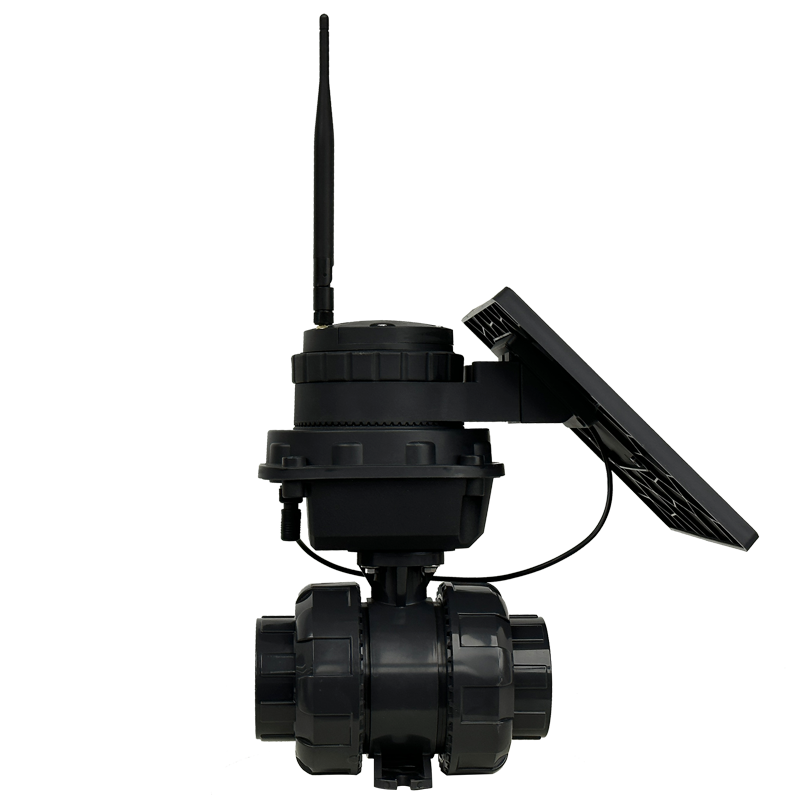

The All-in-one design make solar panel and rechargeable batteries are all in one actuator. The actuator can match ball valves and
butterfly valves. The 4G smart motorized valve uses SIM card to connect internet and realize remote control automatic irrigation.
- Product Details
- {{item.text}}
Quick Details
-
Diameter:
-
2 inch
-
Weight:
-
4.7 KG
-
Product name:
-
solar powered motorized ball valve
-
Solar panel:
-
Polysilicon 6V 5.5W
-
conversion efficiency:
-
19.40%
-
rechargeable battery:
-
3.7V 2000mAh*4 pcs
-
ball valve:
-
DN50
-
ball valve pressure:
-
PN10
-
Global frequency:
-
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
-
Application:
-
Agriculture Garden Farm Irrigaiton
-
Communication protocol:
-
4G/LoRa
-
Advantage:
-
Large Water Flow
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QOTO
-
Feature:
-
electric actuator
-
Diameter:
-
2 inch
-
Weight:
-
4.7 KG
-
Product name:
-
solar powered motorized ball valve
-
Solar panel:
-
Polysilicon 6V 5.5W
-
conversion efficiency:
-
19.40%
-
rechargeable battery:
-
3.7V 2000mAh*4 pcs
-
ball valve:
-
DN50
-
ball valve pressure:
-
PN10
-
Global frequency:
-
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
-
Application:
-
Agriculture Garden Farm Irrigaiton
-
Communication protocol:
-
4G/LoRa
-
Advantage:
-
Large Water Flow
Specification
|
product model
|
QT-02-G
|
|
battery
|
18650 lithium battery(wide temperature)，
battery capacity: 2000mAh，four pcs |
|
solar panel
|
polysilicon 6V 5.5W
|
|
botton connector port
|
solar power charging port can support 5V 1A USB charger（6.5V/2A max）
|
|
flow meter
|
external flow meter
|
|
|
max speed：10m/s
|
|
|
min speed：0.3m/s
|
|
|
working pressure：5kg/cm^2
|
|
valve torque
|
60 N.m
|
|
Max power
|
communication：3.8W
|
|
|
block：25W
|
|
low power mode
|
sleep current：<10uA
|
|
non low power mode
|
stand-by current：NB<48mA,4G<65mA,lora<26mA
|
|
Global frequency
|
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66LTE-TDD:
B34/B38/B39/B40/B41WCDMA:B1/B2/B4/B5/B6/B8/B19GSM:850/900/1800/1900MHz |
Product Description
Title goes here.
