Quick Details
-
Use:
-
plantting
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
dadi
-
Weight:
-
145 KG
-
Dimension(L*W*H):
-
corn planter
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
color:
-
blue
Quick Details
-
Number of Rows:
-
1, 2, 3, 4, 5
-
Type:
-
seeder
-
Application:
-
corn planter
-
Use:
-
plantting
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
dadi
-
Weight:
-
145 KG
-
Dimension(L*W*H):
-
corn planter
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
color:
-
blue

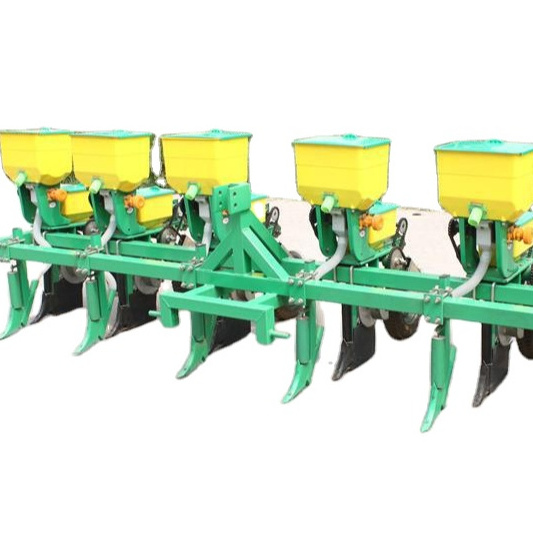

Agricultural Machine Factory 5-row corn maize soybean planter seed drill/ corn planter and seeder
5-row corn maize soybean planter seed drill
The machine is suitable for sowing corn in the zero-tillage field,and also can fertilize and plant in the manure field.The fertilizer and sowing can complete at one operation,this spurs the seeding fast and sturdy,helthy and rapid growth.
The machine is suitable for corn,peanut and cotton.On the front beam of the machine's frame,there are equipped with a passive entangling-proof fitting (can also used for fertilizing and furrowing).This fitting can cut down the working resistance and improve working efficiency.
Main Specifications:
5-row corn maize soybean planter seed drill
| Model | 2BYF-3 | 2BYF-4 | 2BYF-5 | 2BYF-6 | |
| Overall dimensions(L*W*H)mm | 1230×1500×890 | 1230×1850×890 | 1230×2200×890 | 1230×2750×890 | |
| Weight(kg) | 145 | 190 | 240 | 360 | |
| Row spacing(mm) | 500-640 | ≥540 | ≥487 | ≥487 | |
| Sowing rows | 3 | 4 | 5 | 6 | |
| Furrowing depth(mm) | 60-80 | 60-80 | 60-80 | 60-80 | |
| Sowing depth of fertilizer(mm) | 30-50 | 30-50 | 30-50 | 30-50 | |
| Sowing depth of seeds(mm) | 22.50-35.25 | 22.50-35.25 | 22.50-35.25 | 22.50-35.25 | |
| Seeds quantity(kg/ha) | 112.5 | 112.5 | 112.5 | 112.5 | |
| Pure working efficiency(ha/hour) | 0.20-0.33 | 0.33-0.40 | 0.40-0.54 | 0.60-0.90 | |
| Matched power(hp) | 12~25 | 15~40 | 25~50 | 40~70 | |
| Capacity of fertilizer tank(L) | 9×3 | 9×4 | 9×5 | 9×6 | |
| Capacity of seeds tank(L) | 8×3 | 8×4 | 8×5 | 8×6 | |
