Quick Details
-
Voltage:
-
220V (customized)
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WANBON
-
Dimension(L*W*H):
-
1850mm*1150mm*1690mm
-
Weight:
-
1000 KG
-
Certification:
-
CE / ISO
-
Marketing Type:
-
New Product 2021
-
Configuration:
-
Europe Standard
-
outer paper:
-
composite heat-melt packing paper
-
sealing:
-
heat seal
-
Fin Seal:
-
end seal
-
Product name:
-
soap packing machine
-
Advantage:
-
high speed
-
Keyword 1:
-
soap flow wrapping machine
-
keyword 2:
-
soap overwrapping machine
-
keyword 3:
-
soap double layer wrapping machine
-
keyword 4:
-
soap heat shrink machine
Quick Details
-
Packaging Type:
-
Cartons, Film
-
Packaging Material:
-
Plastic
-
Driven Type:
-
Electric
-
Voltage:
-
220V (customized)
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WANBON
-
Dimension(L*W*H):
-
1850mm*1150mm*1690mm
-
Weight:
-
1000 KG
-
Certification:
-
CE / ISO
-
Marketing Type:
-
New Product 2021
-
Configuration:
-
Europe Standard
-
outer paper:
-
composite heat-melt packing paper
-
sealing:
-
heat seal
-
Fin Seal:
-
end seal
-
Product name:
-
soap packing machine
-
Advantage:
-
high speed
-
Keyword 1:
-
soap flow wrapping machine
-
keyword 2:
-
soap overwrapping machine
-
keyword 3:
-
soap double layer wrapping machine
-
keyword 4:
-
soap heat shrink machine
Soap double paper overwrapping machine Speed 150 pack per minitue made in China
Products Description
Working process and function
1.Product comes into the input conveyor from up-stream machines continuously
2.
Special-designed 4-phase soap sucking mechanism will place the soaps to conveying chain one by one
3.
When the products come into the packer, the out and inner paper will be cut at same time and be pushed in to rotary
4.
After rotating for 180 degree, the product will be pushed into the conveyor, during the process, packing paper will be folded and heat sealed
5.
After sealing, products will be conveyed out by output coneyor,pls
note that when products come out, bottom side faces up.
Main Electric parts (Configuration)
Wanbon is a famous brand in China.
Produce high grade overwrapping machine
|
No
|
Component
|
Brand
|
|
1
|
PLC
|
Schneider
|
|
2
|
HMI
|
Schneider
|
|
3
|
Servo motor
|
Schneider
|
|
5
|
Synchronization VFD
|
DANFOSS
|
|
6
|
Circuit breaker
|
Schneider
|
|
7
|
Electricity leaking protection switch
|
Schneider
|
|
8
|
Contactor
|
Schneider
|
|
9
|
Button
|
Schneider
|
|
10
|
Optical coupler
|
PHOENIX
|
|
11
|
Color sensor
|
SICK
|
|
12
|
Sensor
|
OMRON
|
|
13
|
Auxiliary relay
|
OMRON
|
|
14
|
Temperature controller
|
OMRON
|
|
15
|
Encoder
|
KOYO
|
|
16
|
Lamp and beacon
|
YAYEE
|
|
17
|
Power switch
|
YAYEE
|
|
18
|
DC power supply
|
Meanwell
|
|
19
|
Suction unit AC motor
|
China
|
|
20
|
vacuum generator
|
SMC
|
Soap flow wrapping machine
High speed 60-200pcs per minitue

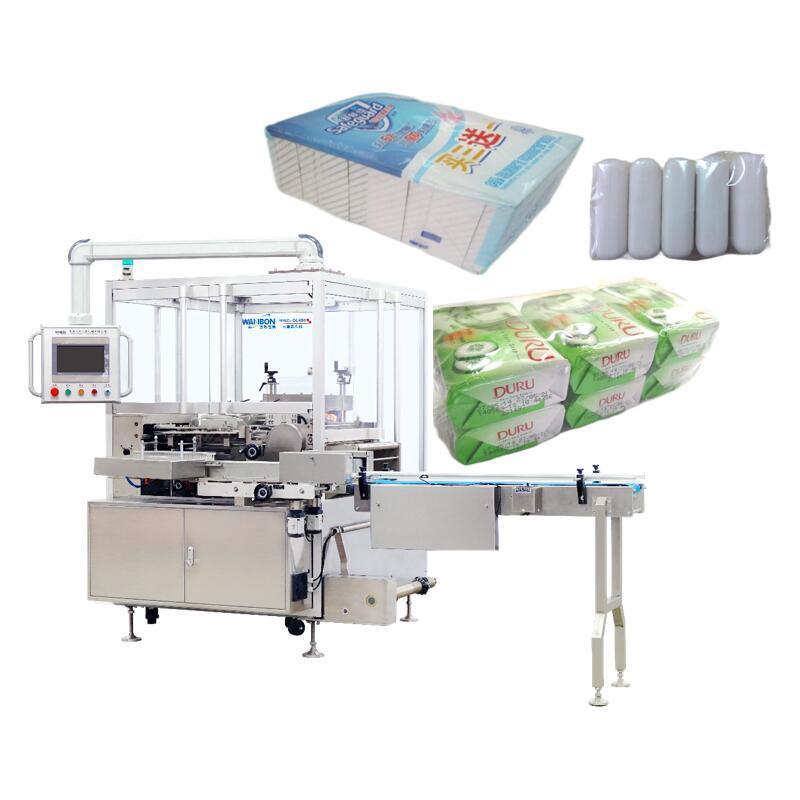

Soap box bundle wrapping machine
pack type 1x3 1x4 1x5 2x3
Soap package solution
We will supply package solution for customer
cartoner machine
Soap cartoning machine with high speed,it can connect with overwrapping machine.
Product packaging
Spary-Anti-rust oil
When machine arrive at customer's factory,just remove the oil,the machine
will be bright and looks perfect.
Wrapped film to protect machine
Machine and spare parts are fixed by wrapped film,prevent bump
Wooden case package
Good for container LCL transportation
After Sale Service
Pre-Sales Service
*Inquiry and consulting support
*Sample testing support
*24 hours on line answer your confusion
*welcome to visit our factory
*Full communication before make order
*Help client to choose the most suitable machine
*Technique support
After-Sales Service
*Report the machine production progress on time
*Install and trial machine before shipment
*Take video to guide client how to unload,assemble,install and trial machine
*Free spare parts will be packed in carton box with packing list.
*24 hours on line to reply client’s question
