Quick Details
-
Product name:
-
ferry head cap screw
-
Grade:
-
Demands
-
Surface treatment:
-
Plain/Nickel/Zinc Plate/ Black
-
Size:
-
M3-M100
-
Certificate:
-
ISO9001:2008
-
MOQ:
-
1 Piece
-
Head type:
-
Double Hex
-
Thread:
-
Coarse
-
Application:
-
Home Appliance Equipment/Building/Industry
Quick Details
-
Finish:
-
ZINC, Plain, Black
-
Material:
-
Stainless steel, Steel, Titanium
-
Place of Origin:
-
Shanghai, China
-
Product name:
-
ferry head cap screw
-
Grade:
-
Demands
-
Surface treatment:
-
Plain/Nickel/Zinc Plate/ Black
-
Size:
-
M3-M100
-
Certificate:
-
ISO9001:2008
-
MOQ:
-
1 Piece
-
Head type:
-
Double Hex
-
Thread:
-
Coarse
-
Application:
-
Home Appliance Equipment/Building/Industry
Product Description

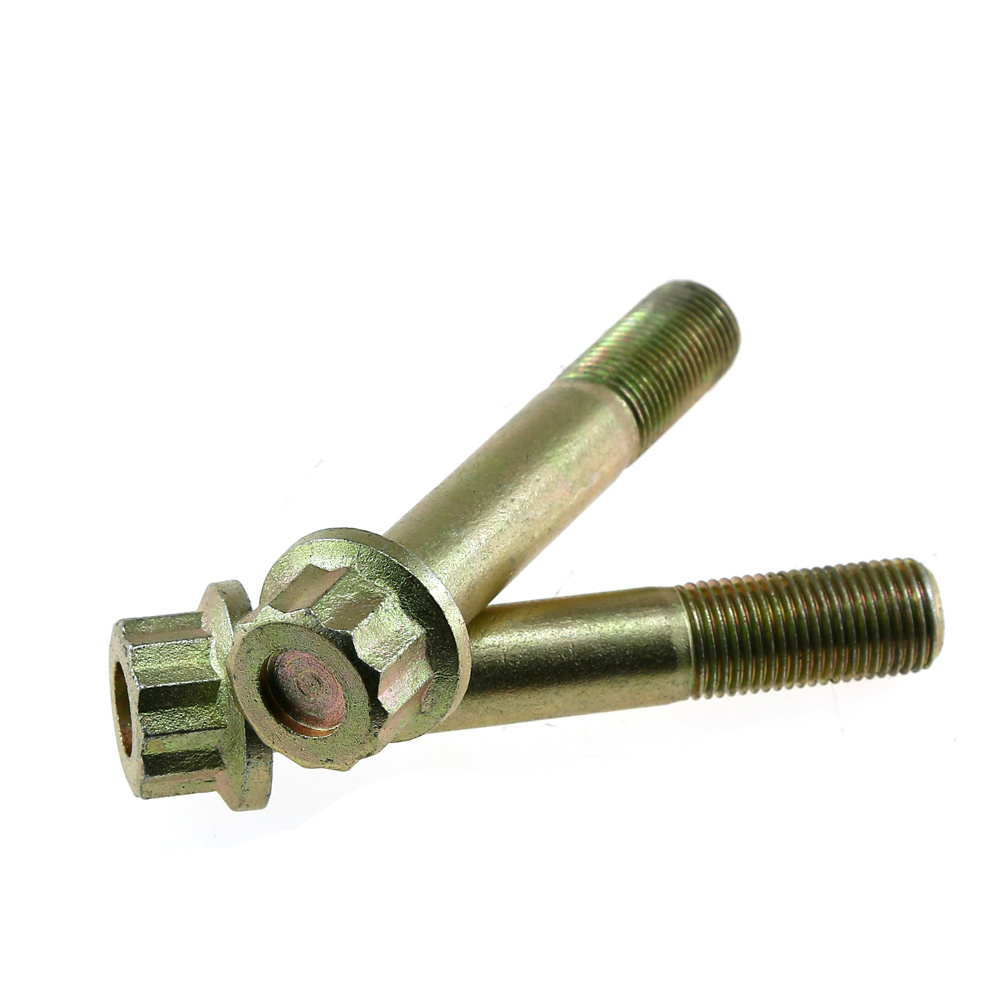

Twelve Point Flange Screws, Ferry Cap Screws and Counter-bor Screws from Big Bolts are normally used as replacement screws for standard socket head cap screws, or as attachment bolts for use on diesel engines. We think you might find other uses for these handy screws as well! The specialty, industrial-grade fasteners come in large diameters, with long lengths, and are available in both coarse and fine thread grades.
| Product name | pt spline bolts head metric ferry cap screw |
| Brand name | GT |
| Material | Titanium/Stainless Steel/ Steel |
| Standard | DIN/ANSI/ISO |
| Size | M3-M100 |
| Grade | Gr1 / Gr2 / Gr5 |
| Surface treatment | Plain/Nickel |
| Application | Building/Industry/Home appliance equipment Ect |
| D | ds max | ds min | dc max | dc min | dk | h max | h min | k max | k min |
|---|---|---|---|---|---|---|---|---|---|
| M5 | 5.0000 | 4.8200 | 8.7200 | 8.2700 | 5.6000 | 2.2500 | 2.0000 | 5.0000 | 4.8800 |
| M6 | 6.0000 | 5.8200 | 10.2200 | 9.2770 | 6.7000 | 2.7000 | 2.4500 | 6.0000 | 5.8200 |
| M8 | 8.0000 | 7.7800 | 13.2700 | 12.7200 | 9.0000 | 3.6000 | 3.3500 | 8.0000 | 7.7800 |
| M10 | 10.0000 | 9.7800 | 16.2700 | 15.6900 | 11.2000 | 4.5000 | 4.1300 | 10.0000 | 9.7800 |
| M12 | 12.0000 | 11.7300 | 18.2700 | 17.6700 | 13.5000 | 5.4000 | 5.0300 | 12.0000 | 11.7300 |
| M14 | 14.0000 | 13.7300 | 21.3300 | 20.6700 | 15.8000 | 6.3000 | 5.9300 | 14.0000 | 13.7300 |
| M16 | 16.0000 | 15.7300 | 24.3300 | 23.6200 | 18.0000 | 7.2000 | 6.8300 | 16.0000 | 15.7300 |
| M20 | 20.0000 | 19.6700 | 30.3300 | 29.5500 | 22.5000 | 9.0000 | 8.5000 | 20.0000 | 19.6700 |
| M24 | 24.0000 | 23.6700 | 36.3900 | 35.5200 | 27.0000 | 10.8000 | 10.3000 | 24.0000 | 23.6700 |
| M30 | 30.0000 | 29.6700 | 45.3900 | 44.5200 | 33.8000 | 13.5000 | 13.0000 | 30.0000 | 29.6700 |
| M36 | 36.0000 | 35.6100 | 54.4600 | 54.4600 | 40.5000 | 16.2000 | 15.6000 | 36.0000 | 35.5700 |
