- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Fullas
-
Dimension(L*W*H):
-
466*480*356
-
Weight:
-
42
-
Rated power/speed:
-
17kw
-
Marketing Type:
-
New Product 2023
-
Key Selling Points:
-
powerful output
-
Engine type:
-
V-twin cylinder, 4 stroke, Air-forced,OHV
-
Bore x Stroke:
-
80*76mm
-
Net power:
-
17 (kw)
-
Starting system:
-
Electric
-
Lubrication system:
-
Splash+pressure
-
Air filter:
-
Dual-filter element
-
Engine oil capacity:
-
2.4 (L)
-
Net weight:
-
42 (kg)
-
Product Dimension:
-
466*480*356 (mm)
Quick Details
-
Displacement:
-
764cc, 764cc
-
Emission Standard:
-
EPA Tier3
-
Power:
-
17.2 kw
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Fullas
-
Dimension(L*W*H):
-
466*480*356
-
Weight:
-
42
-
Rated power/speed:
-
17kw
-
Marketing Type:
-
New Product 2023
-
Key Selling Points:
-
powerful output
-
Engine type:
-
V-twin cylinder, 4 stroke, Air-forced,OHV
-
Bore x Stroke:
-
80*76mm
-
Net power:
-
17 (kw)
-
Starting system:
-
Electric
-
Lubrication system:
-
Splash+pressure
-
Air filter:
-
Dual-filter element
-
Engine oil capacity:
-
2.4 (L)
-
Net weight:
-
42 (kg)
-
Product Dimension:
-
466*480*356 (mm)
Product descriptions from the supplier

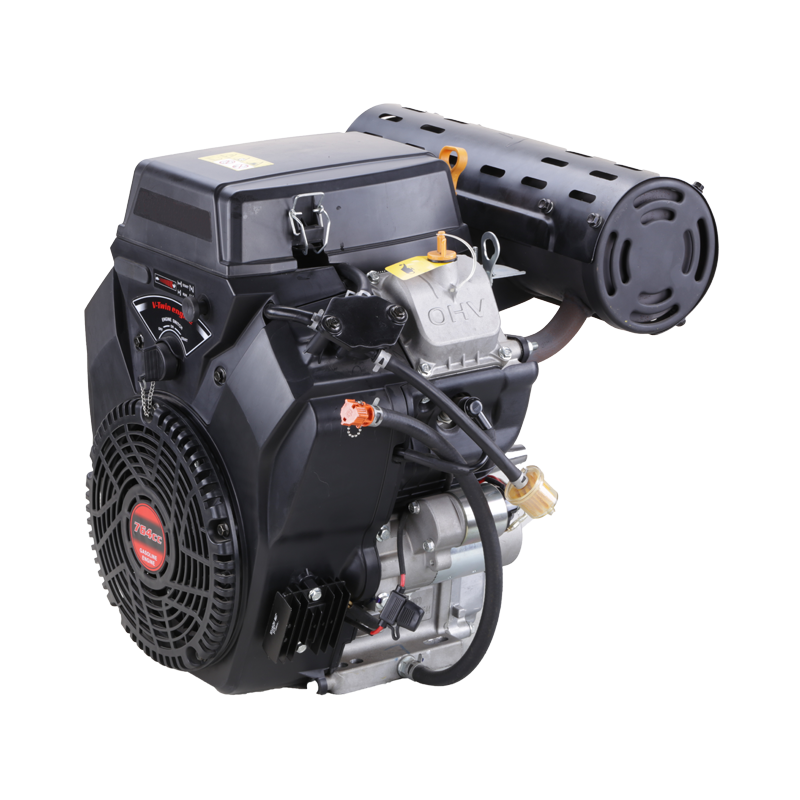

Fullas FP2P80F Twin Cylinders 17 KW 764 CC 24HP Electric Start Vertical Shaft Gasoline Engine
Features:
1.Comfortable
Accurate match on fuel system, friction pair, Automatical decompression structure can ensure an Easy starting, less battery
current are consumed.
2.powerfull output
V-twin cylinder 90 angled OHV design, small size, large displacement, strong power output.
3.Soft tone noise and reduced vibration
CAE analysis technology are used to optimizes design on component, reduces vibration and noise.
4.Low oil consumption
Labyrinth type fuel and air separation structure decreases oil consumption. Optimized air vent cooling system, equipped with oil
cooler, decreases oil temperature.
5.Superior reliability
Imported fuel pump, stable and reliable. Full pressure lubrication, extends service life. Special material filter element are used
to prevent dust entering in engine.
Features:
1.Comfortable
Accurate match on fuel system, friction pair, Automatical decompression structure can ensure an Easy starting, less battery
current are consumed.
2.powerfull output
V-twin cylinder 90 angled OHV design, small size, large displacement, strong power output.
3.Soft tone noise and reduced vibration
CAE analysis technology are used to optimizes design on component, reduces vibration and noise.
4.Low oil consumption
Labyrinth type fuel and air separation structure decreases oil consumption. Optimized air vent cooling system, equipped with oil
cooler, decreases oil temperature.
5.Superior reliability
Imported fuel pump, stable and reliable. Full pressure lubrication, extends service life. Special material filter element are used
to prevent dust entering in engine.
Specification
|
Model
|
FP2P76F
|
FP2P77F
|
FP2P80F
|
||
|
Engine type
|
V-twin cylinder, 4 stroke, Air-forced,OHV
|
|
|
||
|
Displacement(cc)
|
635
|
708
|
746
|
||
|
Net power
(kW/3600r/min)SAE |
13.5
|
16
|
17
|
||
|
Bore x Stroke (mm)
|
76*70
|
77*76
|
80*76
|
||
|
Net Torgue Nm / r / min
|
40/2400
|
47.5/2400
|
52/2400
|
||
|
Starting system
|
Electric
|
Electric
|
Electric
|
||
|
Lubrication system
|
Splash+pressure
|
Splash+pressure
|
Splash+pressure
|
||
|
Air filter
|
Dual-filter element
|
Dual-filter element
|
Dual-filter element
|
||
|
Engine oil capacity(L)
|
1.7
|
2.4
|
2.4
|
||
|
Fuel tank capacity(L)
|
/
|
/
|
/
|
||
|
Net weight (kg)
|
36
|
42
|
42
|
||
|
Product Dimension (mm)
|
430*425*412
|
466*480*356
|
466*480*356
|
||
Details
Production line
Packing & Delivery
carton box/ wooden box
