- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V 50hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HZPK
-
Dimension(L*W*H):
-
260*345*165mm
-
Weight:
-
3 KG
-
Core Components:
-
Induction heater
-
Input power:
-
≥1200W
-
Out power:
-
≤600W
-
Ambient temperature:
-
10-400℃
-
Seal diameter:
-
20-90mm
-
Enclosure rating:
-
IP20
-
After-sales Service Provided:
-
Video technical support, Online support
-
Certification:
-
CE
-
Warehouse:
-
1004
Quick Details
-
Packaging Type:
-
CANS, Foil
-
Packaging Material:
-
Plastic, Paper
-
Driven Type:
-
Electric
-
Voltage:
-
220V 50hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HZPK
-
Dimension(L*W*H):
-
260*345*165mm
-
Weight:
-
3 KG
-
Core Components:
-
Induction heater
-
Input power:
-
≥1200W
-
Out power:
-
≤600W
-
Ambient temperature:
-
10-400℃
-
Seal diameter:
-
20-90mm
-
Enclosure rating:
-
IP20
-
After-sales Service Provided:
-
Video technical support, Online support
-
Certification:
-
CE
-
Warehouse:
-
1004
Why Choose Us
1. More than 20 years manufacture in packing machine
2. 12 years alibaba
supplier
3. 100% QC inspection before shipment
4. 12 months warranty
5. Product Certificated by CE
3. 100% QC inspection before shipment
4. 12 months warranty
5. Product Certificated by CE
Product Description

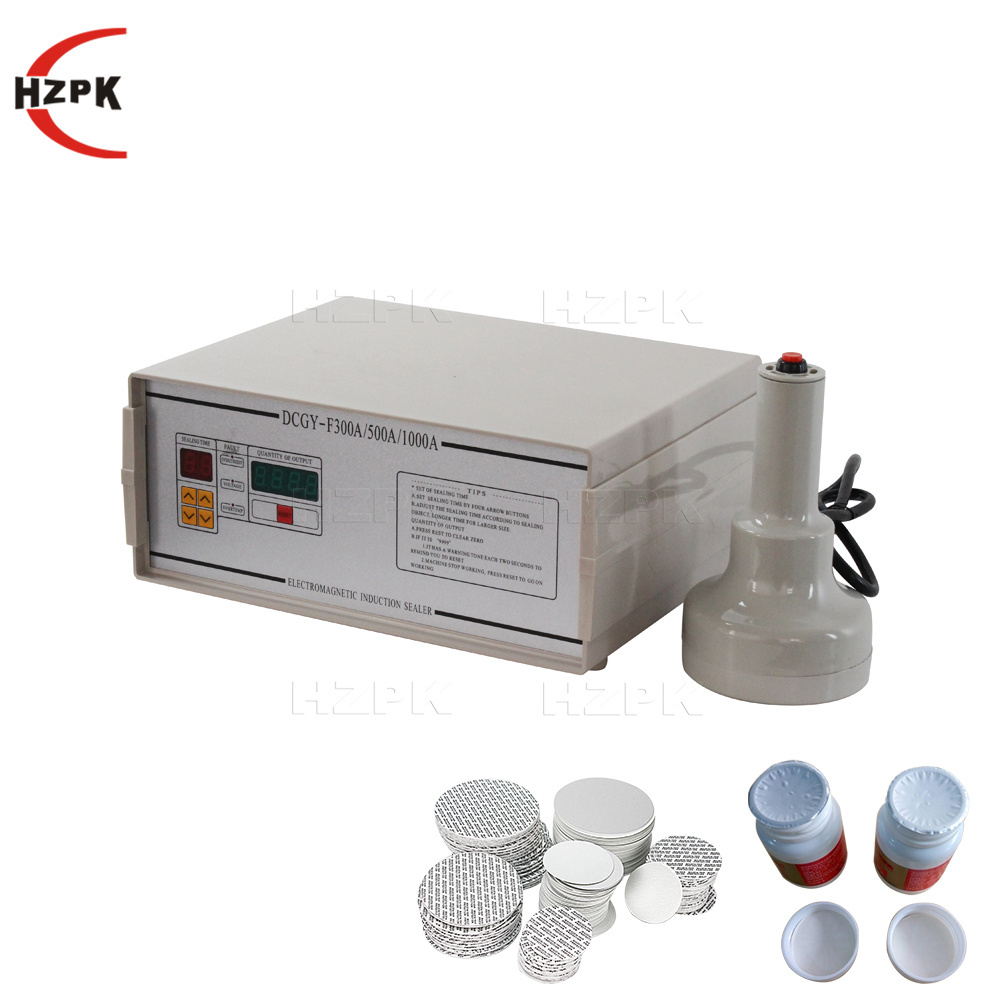

DCGY-500 induction sealing machine is suitable for aluminum foil sealing of glass and plastic bottles.
The machine is used in chemical industry, pesticide, foodstuffs, cosmetics and light industry.
Principle of electromagnetic induction: The aluminum foil on the bottle top is highly heated instantaneously and melted so that the bottle mouth is closely wrapped and sealed. The sealing is damp-proof, mould-proof, forgery-proof and prolongs goods storage time.
Features:
1. Small size, light weight, it is suitable for low-volume production and operation in labs.
2. Fast and efficient. The foil seals tightly without being affected by moisture, grease or powder contamination on sealing area.
5. Modular design, easy to maintain.
|
MODEL
|
|||||||
|
Power
|
AC220V/50HZ-80HZ
|
|
|
|
|||
|
Input power
|
≥1200W
|
|
|
|
|||
|
Out power
|
≦600W
|
|
|
|
|||
|
Ambient temperature
|
10-400℃
|
|
|
|
|||
|
Seal diameter
|
Ø20-80
|
Ø15-50
|
Ø20-100
|
Ø70-130
|
|||
|
Seal type
|
handle type
|
|
|
|
|||
|
size
|
280*230*115mm
|
260*345*165mm
|
260*345*165mm
|
260*345*165mm
|
|||
|
Enclosure rating
|
IP20
|
|
|
|
|||
The containers sealable can be made of PE, PP, PS, PET, ABS, glass, porcelain etc. Note: Not suitable for metal bottles.
Details Images
Control Panel
Intelligent control panel, all functions are clearly labeled on the display panel, easy to operate.
It can adjust the sealing time, count the quantity.
Electromagnetic Induction Head
Suitable for the sealing of flat cap with screw thread for glass bottles and plastic bottles.
Cap diameter between 20mm and 100mm.
Package
Our products are packed in boxs. We will check that if the machine can run before it is sent out. When you receive the goods, please open the package to check out if the goods are in good condition before the courier. If the boxs are damaged or other situations happen, please contact us in time.
