Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huadong
-
Model Number:
-
CCW
-
Size:
-
6 4 3 2 1/0 awg
-
Product Name:
-
15KV CCW Armoured Power Cable
-
Conductor:
-
Bare annealed copper
-
Core:
-
3 Core
-
Rated voltage:
-
15kv
-
Standard:
-
UL 1072/ 1569 /2225/ 1309
Quick Details
-
Insulation Material:
-
EPR
-
Application:
-
Industrial
-
Conductor Material:
-
Bare annealed copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huadong
-
Model Number:
-
CCW
-
Size:
-
6 4 3 2 1/0 awg
-
Product Name:
-
15KV CCW Armoured Power Cable
-
Conductor:
-
Bare annealed copper
-
Core:
-
3 Core
-
Rated voltage:
-
15kv
-
Standard:
-
UL 1072/ 1569 /2225/ 1309
Product Description
Corrugated Armor

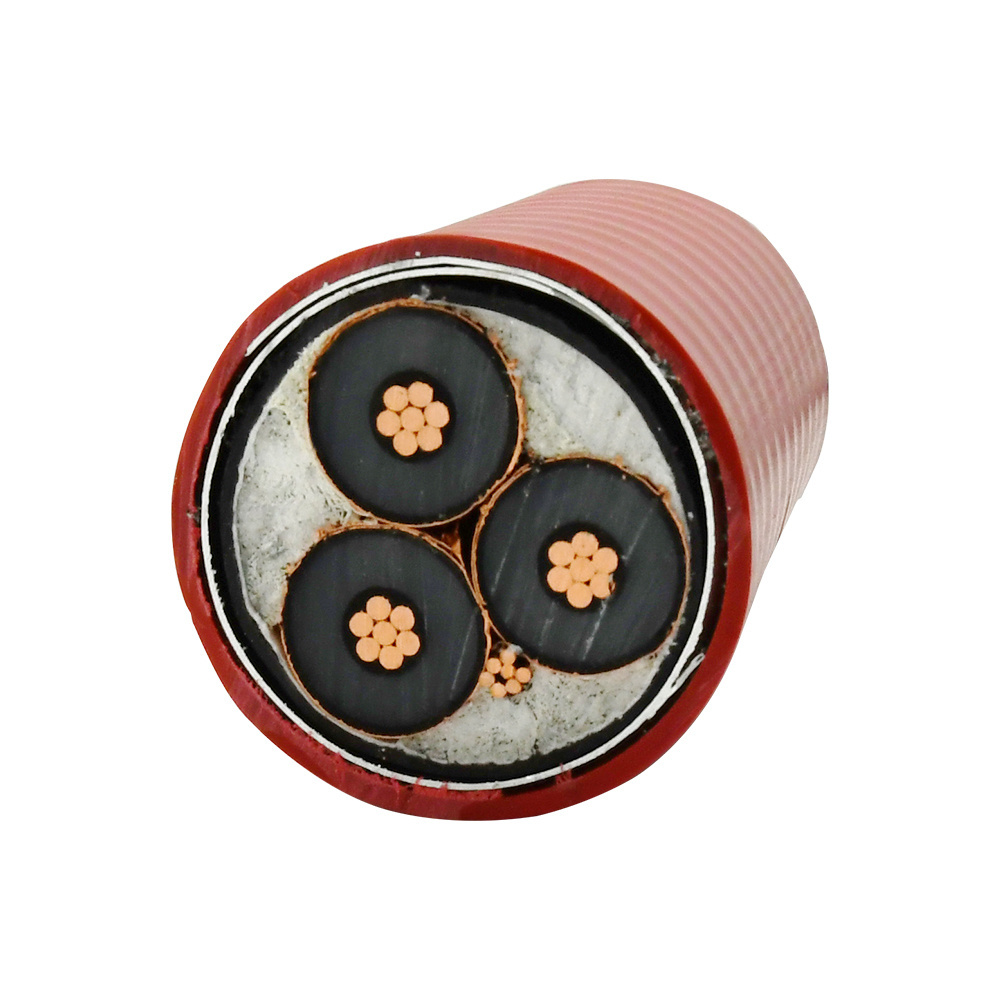

15kV - CCW Armored Power, 133%, Shielded, 3/C
Continuously Corrugated Welded Cable – CCW
133% EPR Insulation – PVC Jacket
105°C – UL Type MC-HL or MV-105
15kV – 3-Conductor – Shielded
15kV - CCW Armored Power, 133%, Shielded, 3/C
Continuously Corrugated Welded Cable – CCW
133% EPR Insulation – PVC Jacket
105°C – UL Type MC-HL or MV-105
15kV – 3-Conductor – Shielded
For use in feeders and branch circuits in industrial power distribution systems per NEC articles 328 and 330
Approved for Classes I, II and III, Divisions 1 and 2; and Class I, Zones 1 and 2, hazardous locations covered under NEC Articles 501, 502, 503 and 505
Installed on metal racks, troughs, in raceways, in cable trays or secured to supports spaced no more than 6 feet apart
Installed in both exposed and concealed work, wet or dry
Approved for Classes I, II and III, Divisions 1 and 2; and Class I, Zones 1 and 2, hazardous locations covered under NEC Articles 501, 502, 503 and 505
Installed on metal racks, troughs, in raceways, in cable trays or secured to supports spaced no more than 6 feet apart
Installed in both exposed and concealed work, wet or dry
|
Conductor
|
Bare annealed copper per ASTM B3 Compact stranding per ASTM B496
|
|
Extruded Strand Shield
|
Extruded thermoset semi-conductor stress control layer over
conductor per ICEA S-93-639 and UL 1072 |
|
Insulation
|
Ethylene Propylene Rubber (EPR)
|
|
Extruded Insulation Shield
|
Thermoset semi-conducting polymeric layer, free stripping
from the insulation per ICEA S-93-639 and UL 1072 |
|
Ground Conductor
|
Class B stranded bare annealed copper grounding
conductor Sized in accordance with UL 1072 and NEC Article 250 |
|
Shield
|
5 mil annealed bare copper tape with 25% overlap Color
coded polymeric identification tape laid under the shield:Black, Red, & Blue |
|
Armor
|
Impervious, continuously welded and corrugated aluminum alloy sheath
|
|
Outer Jacket
|
Flame-retardant, moisture and sunlight resistant Polyvinyl
Chloride (PVC), red Low temperature performance meets ASTM D746 brittleness temperature at or below 40 C |
