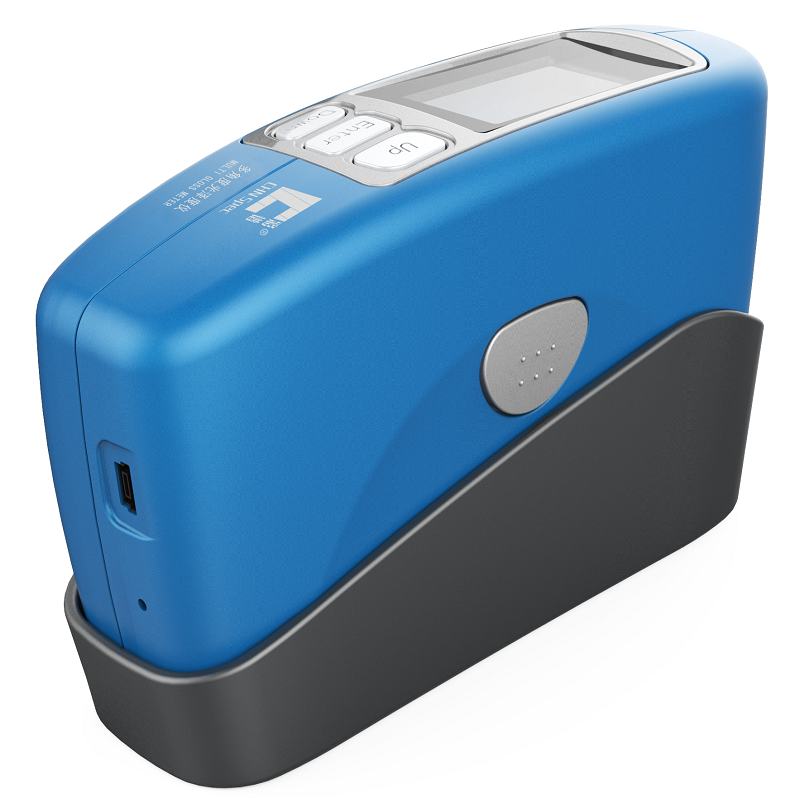

CS-300、CS-380 Gloss meters are mainly used in the surface gloss measurement for paint, plastic, metal, ceramics, building materials and so on. Our gloss meter conform to the DIN 67530, ISO 2813, ASTM D 523, JIS Z8741, BS 3900 Part D5, JJG696 standards and so on.
Main Feature
1). High Precision Our gloss meter adopts sensor from Japan, and processor chip from the US to ensure highly precise of the measured data. Our gloss meters conform to JJG 696 standard for first class gloss meters. Every instrument has verification certificate from National Modern Metrology and Instruments Testing Laboratory and the Education Engineering Ministry in China. 2).Super Stability Every gloss meter made by us has done the following test: 412 calibration tests; 43200 stability tests; 110 hours of accelerated aging test; 17000 vibration test 3). Comfortable Grab Feeling The shell is made by Dow Corning TiSLV material, a desirable elastic material. It is resistant to UV and bacteria and do not cause allergy. This design is for better user experience 4).Large Battery Capacity We fully utilized every space of the device and specially custom made advanced high density lithium battery in 3000mAH , which ensures continuous testing for 54300 times.
Technical Data
Model
CS-380
CS-300
Test Angle
20°,60°,85°
60°
Test light spot(mm)
20°:10*10
60°:9*15
85°:5*38
60°:9*15
Test range
20°:0-2000GU
60°:0-1000GU
85°:0-160GU
60°:0-1000GU
Stability
0.1GU
Test modes
Simple mode, standard mode and sample testing mode
Repeatability
0-100GU:0.2GU
100-2000GU:0.2%GU
Accuracy
Conform to JJG 696 standard for first class gloss meter
Test time
Less than 1s
0.5s
Data storage
100 standard samples; 10000 test samples
Size(mm)
165*51*77 (L*W*H)
Weight
About 400g
Language
Chinese and English
Battery capacity
3000mAh lithium battery
Port
USB, Bluetooth (optional)
Upper-PC Software
Include
Working Temperature
0-40℃
Working Humidity
<85%, no condensation
Accessories
5V/2A charger, USB cable, operating manual, software CD, calibration boards, metrology accreditation certification
