Quick Details
-
Voltage:
-
380V or Customizable
-
Power:
-
150KW-500KW or Customizable
-
Dimension(L*W*H):
-
Customized
-
Chamber size:
-
Stainless Steel Sheet Coating Machine
-
Chamber material:
-
304/316 STAINLESS STEEL
-
Chamber structure:
-
Vertical front door, vertical top door, horizontal front door.
-
Raw coating material:
-
Titanium , chrome, Aluminum, Brass, Zirconium,etc.
-
Coating application field:
-
Stainless steel sheets, Stainless steel furniture, SS parts,etc.
-
Coating color:
-
Golden, rose golden, black, dark black,champagne, Brown,etc.
-
Coating technology:
-
Multi arc ion pvd coating technology
-
Installation and training:
-
Free oversea installing and training service
-
Control mode:
-
IPC+PLC+Touch screen+Alarm system , Full Automatic
-
Vacuum system:
-
Diffussion pump+roots pump+rotary vacuum pump
-
Weight:
-
less than 30TONS
-
Certification:
-
ISO9001:2015& CE
Quick Details
-
Machine Type:
-
vacuum Coating
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CICEL
-
Voltage:
-
380V or Customizable
-
Power:
-
150KW-500KW or Customizable
-
Dimension(L*W*H):
-
Customized
-
Chamber size:
-
Stainless Steel Sheet Coating Machine
-
Chamber material:
-
304/316 STAINLESS STEEL
-
Chamber structure:
-
Vertical front door, vertical top door, horizontal front door.
-
Raw coating material:
-
Titanium , chrome, Aluminum, Brass, Zirconium,etc.
-
Coating application field:
-
Stainless steel sheets, Stainless steel furniture, SS parts,etc.
-
Coating color:
-
Golden, rose golden, black, dark black,champagne, Brown,etc.
-
Coating technology:
-
Multi arc ion pvd coating technology
-
Installation and training:
-
Free oversea installing and training service
-
Control mode:
-
IPC+PLC+Touch screen+Alarm system , Full Automatic
-
Vacuum system:
-
Diffussion pump+roots pump+rotary vacuum pump
-
Weight:
-
less than 30TONS
-
Certification:
-
ISO9001:2015& CE
You are here: Home >> CCZK-ION-L series large scale PVD vacuum coater

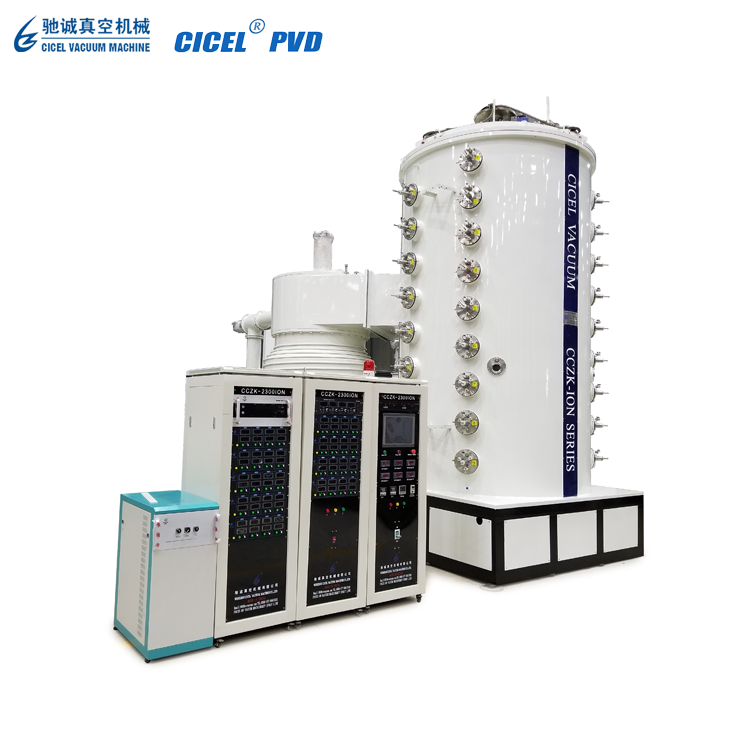

CICEL Stainless Steel Sheet Titanium Gold PVD Vacuum Magnetron Sputtering Coating Machine
|
configuration Model |
CCZK-2000-ION |
CCZK-2200-ION |
CCZK-2400-ION |
Customized Size is available |
|
Chamber size |
D2000*H3000mm |
D2200*H4000mm |
D2400*H5000mm |
Customized |
|
Vacuum system |
Diffusion pump/ + Roots pump + Double stage direct driver Rotary pump + Holding pump + Cryogenic pump(optional) |
Customized |
||
|
Arc power supply |
7 th generation 32sets |
7 th generation 40sets |
7 th generation 48sets |
Customized |
|
Arc source |
7 th generation 32sets |
7 th generation 40sets |
7 th generation 48sets |
Customized |
|
Bias power supply |
50KW |
80KW |
100KW |
Customized |
|
Gas MFC system |
4-way intake sys |
4-way intake sys |
4-way intake sys |
Customized |
|
Baking system |
Up to 350C |
Up to 350C |
Up to 350C |
Customized |
|
Control system |
IPC + PLC+HMI Full automatic + Remote control system ( optional) |
Customized |
||
|
Ultimate vacuum |
5.0*10 -4 pa |
5.0*10 -4 pa |
5.0*10 -4 pa |
Customized |
|
Total power |
360KW |
455KW |
567KW |
Customized |
|
Coating Cycle time |
Around 15 to 50 mins one cycle ( Depending on the coating film layer of different coating products) |
Customized |
||
|
Delivery container size |
1set 20FR 1set 40HQ |
1set 20FR 2sets 40HQ |
1set 20FR 3sets 40HQ |
Customized |
|
Machine installing time |
15days(2engineers) |
20days(2engineers) |
20days(2engineers) |
Customized |
