Quick Details
-
Blade Length (mm):
-
2 mm
-
Backgauge Travel (mm):
-
20 - 1000 mm
-
Throat Depth (mm):
-
100 mm
-
Brand Name:
-
GENUO
-
Power (kW):
-
6 kW
-
Weight (KG):
-
3000 KG
-
Place of Origin:
-
ANHUI
-
Voltage:
-
Three-phase 380V/ 50HZ
-
Dimension(L*W*H):
-
1400*2200*1100
-
Year:
-
2023
-
Marketing Type:
-
Hot Product 2022
-
Application:
-
Electric Shearing Machine
-
Product name:
-
Guillotine
-
Type:
-
Cutting Sheet Sheet
-
Cutting material:
-
Stainless Steel Metal Sheet
-
Name:
-
Hydraulic Shearing Machine
-
After-sales Service Provided:
-
Online Support
-
Hydraulic System:
-
QC11Y Hydraulic Sheet Metal Guillotine
-
Control system:
-
Estun E21 NC Control
-
Usage:
-
Metal Plate Cutting
Quick Details
-
Max. Cutting Width (mm):
-
4000
-
Max. Cutting Thickness (mm):
-
20 mm
-
Shearing Angle:
-
2
-
Blade Length (mm):
-
2 mm
-
Backgauge Travel (mm):
-
20 - 1000 mm
-
Throat Depth (mm):
-
100 mm
-
Brand Name:
-
GENUO
-
Power (kW):
-
6 kW
-
Weight (KG):
-
3000 KG
-
Place of Origin:
-
ANHUI
-
Voltage:
-
Three-phase 380V/ 50HZ
-
Dimension(L*W*H):
-
1400*2200*1100
-
Year:
-
2023
-
Marketing Type:
-
Hot Product 2022
-
Application:
-
Electric Shearing Machine
-
Product name:
-
Guillotine
-
Type:
-
Cutting Sheet Sheet
-
Cutting material:
-
Stainless Steel Metal Sheet
-
Name:
-
Hydraulic Shearing Machine
-
After-sales Service Provided:
-
Online Support
-
Hydraulic System:
-
QC11Y Hydraulic Sheet Metal Guillotine
-
Control system:
-
Estun E21 NC Control
-
Usage:
-
Metal Plate Cutting
Products Description
GENUO has rich production experience and technology in shearing cutting machines,we began to
produce the simplest hydraulic metal sheet cutter many years ago, and now we provide hydraulic
metal cutting machines manufactured in our world-class manufacturing facilities. Through
continuous innovation and solution orientation, our existing shears around the world have made
some suggested adjustments.Both swing beam type and guillotine type plate shears can bring
you
simple and efficient sheet metal cutting.In recent years, various cutting machines for metal
sheet
are popular. But we have not stopped the pace of innovation. The new generation of hybrid
low
energy consumption and noise CNC plate shears will be one of your indispensable choices.
|
Standard Equipment
|
|
|
Optional Equipment
|
|
|
||||
|
■ ESTUN E21S NC control
|
|
|
□ E200PS/ CybTouch 8/ DAC-360T CNC control
|
|
|
||||
|
■ Shilin stepping motor frequency converter
|
|
|
□ Sheet support system for thin sheets
|
|
|
||||
|
■ Back gauge with roll guide and ball screw
|
|
|
□ Energy saving main servo motor pump system
|
|
|
||||
|
■ SIEMENS main motor, Schneider electric
|
|
|
□ Moveable controller panel,Wireless foot pedal
|
|
|
||||
|
■ Sunny pump,Rexroth hydraulic valve
|
|
|
□ Hydraulic oil cooling and heating system
|
|
|
||||
|
■
EMB ferrule type pipe connector,NOK sealing rings
|
|
|
□ Automatic blade gap adjustment device
|
|
|
||||
|
■ Roller bearings on the front support table
|
|
|
□ Front angle gauge and side gauge
|
|
|
||||
|
■ Sheet sliding system and front support arms
|
|
|
□ Light safety system for finger protection
|
|
|
||||
|
■
Collapsible guardrail finger protection
|
|
|
□ 4~40mm thickness,1.6~8M length optional
|
|
|
||||
To Learn More
Click Here >>
E21S(ESTUN)
Backgauge control;
Control ordinary motors or inverters;
Intelligent posi- tioning;
Dual programmable digital output;
Workpiece count; 40 program
storage, Each program has 25
steps;Unilateral positioning;
Metric system.Yield function;
One-key backup and restore of
parameters;
E200PS(ESTUN)
CAN bus control X axis sevo;Shear
control;Dual programmable digital
output;40 program storage, each
program has 25 steps;
Unilateral
positioning;Built-in cutting time,
retreat delay; One-key backup
and
restore of parameters; Full-
function
online diagnosis, real-time alarm
prompt Reserve a safe, supporting
material interface;
Color LCD HD display;
Metric/English;Chinese-English.
CybTouch 8 G(CYBELEC)
High-contrast touchscreen,
with vivid colors.Simple pages,
large keys, clear display with all
the information the operator
needs.
Intuitive and user-
friendly interface.Complete
programming of parts in seconds.
Quick set up of the machine with
the EasyCut page.Contextual
help and waming pop-up.
DAC-360T (Delem)
Panel based housing;Bright LCD
screen;Back / front gauge
control;
Retract function;
Cutting angle and gap control;
Stroke length limitation;
Manual movement of all axes;
Force control;Sheet thickness
measurement;
Retum to Sender function;
Sheet support.

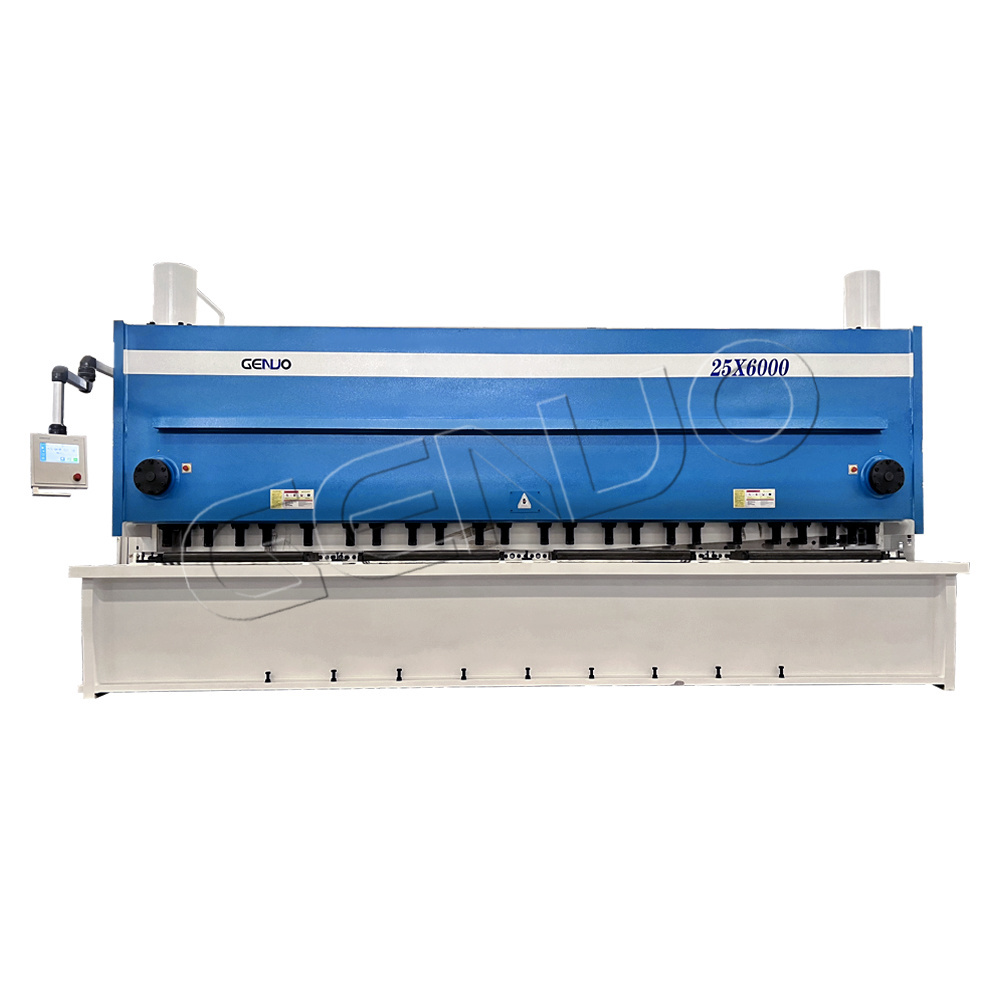

The guillotine shear designed with European style monoblock welding structure to fully
ensure the strength and rigidity of the machine. The advanced integrated hydraulic system
and three-point supporting rolling guide rail can adapt to the shearing of different materials
and thicknesses. The electric adjustment of the upper and lower blade edge clearance and
the
accurate back gauge system make shearing more convenient, rapid and accurate.
Four rectangular blades ensure extremely long service life.GENUO's guillotine shears, which
have the advantages of stable and reliable operation, low noise, low energy consumption
and fast speed, bring stable profits to the enterprise.
Hydraulic Hold downs
Built-in spring structure,
where the lower part
with
special materal gasketstoad
leing trace line On aluminum
alloy or other sensitive material .
Shear Blades
High Precision Ball Screw，Made using
special alloy steel according to the
customer's needs: material to be cut,
holes & hardening.suitable to guarantee
reliability & wear resistance.
The machine can be equipped with 9CrSi,
6CrW2Si and SKD-11 all steel shear blade.
Light Barrier Protection
Fast Blade Gap Adjustment
Exquisitely Back Gauge
- Fast and high accuracy
- Reliable movement
- Adjustment from each point
- Resistance to crash
- Maintenance free
The unique and novel ball screw linear guide
structure back-gauge ensures high positioning
accuracy.
Adjustable beam guiding rule and synchronous transmission structure, stable and reliable .
Vertical Adjustment and
Front Stop Position Device
Angle Protractor
Positioning Device
Pneumatic Sheet
Support System
Up to 2０ Feet Cut Length
Up to 2”Mild Steel Cutting Capacity
Mild Steel
Smooth and neat
Stainless Steel
Smooth and neat
Aluminum plate
Smooth and neat
Sheet Copper
Smooth and neat
|
Model
|
Cutting Thickness
|
Cutting Length
|
Angle Range
|
Stroke
|
Main Power
|
Approx. Weight
|
Overall Dimension
|
|||||||
|
Type
|
(mm)
|
(mm)
|
( ° )
|
(mm)
|
(Kw)
|
( T )
|
（L x W x H) （mm）
|
|||||||
|
6x2500
|
6
|
2500
|
0.5-1.5
|
20~600
|
7.5
|
5.5
|
3800x1700x1950
|
|||||||
|
6x3200
|
6
|
3200
|
0.5-1.5
|
20~600
|
7.5
|
6.5
|
4100x1700x2000
|
|||||||
|
6x4000
|
6
|
4000
|
0.5-1.5
|
20~600
|
7.5
|
8.5
|
5200x1840x2150
|
|||||||
|
6x5000
|
6
|
5000
|
0.5-1.5
|
20~600
|
11
|
11
|
6000x1840x2150
|
|||||||
|
6x6000
|
6
|
6000
|
0.5 - 2
|
20~600
|
11
|
16
|
7000x2100x2300
|
|||||||
|
10x2500
|
10
|
2500
|
0.5 - 2
|
20~750
|
11
|
6.8
|
3800x1800x1950
|
|||||||
|
10x3200
|
10
|
3200
|
0.5 - 2
|
20~750
|
11
|
8.5
|
4300x1830x2000
|
|||||||
|
10x4000
|
10
|
4000
|
0.5 - 2
|
20~750
|
15
|
12.5
|
5200x2100x2000
|
|||||||
|
10x5000
|
10
|
5000
|
0.5 - 2
|
20~750
|
15
|
18
|
6000x2100x2000
|
|||||||
|
10x6000
|
10
|
6000
|
0.5 - 2
|
20~750
|
15
|
24
|
7000x2100x2300
|
|||||||
|
10x8000
|
10
|
8000
|
0.5 - 2
|
20~750
|
18.5
|
32
|
8800x2100x2300
|
|||||||
|
13x2500
|
12
|
2500
|
0.5-2.5
|
20~750
|
15
|
8.5
|
3800x1830x2390
|
|||||||
|
13x3200
|
12
|
3200
|
0.5-2.5
|
20~750
|
18.5
|
10.5
|
4300x1830x2390
|
|||||||
|
13x4000
|
12
|
4000
|
0.5-2.5
|
20~1000
|
18.5
|
13.5
|
5200x1830x2390
|
|||||||
|
13x6000
|
12
|
6000
|
0.5-2.5
|
20~1000
|
18.5
|
26
|
7000x1930x2650
|
|||||||
|
13x8000
|
12
|
8000
|
0.5-2.5
|
20~1000
|
22
|
46
|
8950x2130x2850
|
|||||||
|
16x2500
|
16
|
2500
|
0.5-2.5
|
20~1000
|
22
|
10.8
|
3800x1940x2830
|
|||||||
|
16x3200
|
16
|
3200
|
0.5-2.5
|
20~1000
|
22
|
12.5
|
4300x1940x2830
|
|||||||
|
16x4000
|
16
|
4000
|
0.5-2.5
|
20~1000
|
22
|
16.5
|
5200x1980x2830
|
|||||||
|
16x5000
|
16
|
5000
|
0.5-2.5
|
20~1000
|
22
|
25
|
6000x2600x2830
|
|||||||
|
16x6000
|
16
|
6000
|
0.5-2.5
|
20~1000
|
22
|
34
|
7000x2700x2830
|
|||||||
|
16x8000
|
16
|
8000
|
0.5-2.5
|
20~1000
|
30
|
70
|
8950x2900x3430
|
|||||||
|
20x2500
|
20
|
2500
|
0.5-2.5
|
20~1000
|
22
|
13
|
3800x1980x2830
|
|||||||
|
20x3200
|
20
|
3200
|
0.5-2.5
|
20~1000
|
22
|
17
|
4300x1900x2830
|
|||||||
|
20x4000
|
20
|
4000
|
0.5-2.5
|
20~1000
|
22
|
22
|
5200x2600x2900
|
|||||||
|
20x6000
|
20
|
6000
|
0.5-2.5
|
20~1000
|
30
|
45
|
7000x3000x3000
|
|||||||
|
30x2500
|
30
|
2500
|
1 - 3.5
|
20~1000
|
37
|
24
|
3800x1900x2830
|
|||||||
|
30x3200
|
30
|
3200
|
1 - 3.5
|
20~1000
|
37
|
29
|
4300x1900x3000
|
|||||||
|
40x2500
|
40
|
2500
|
1 - 3.5
|
20~1000
|
45
|
36
|
3800x2000x3000
|
|||||||
|
The above data is only for reference only,to prevail in kind. More specifications available.
