Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
IVEN
-
Dimension(L*W*H):
-
2500*2500*1300 mm - 4280*1650*2400 mm
-
Weight (KG):
-
3000
-

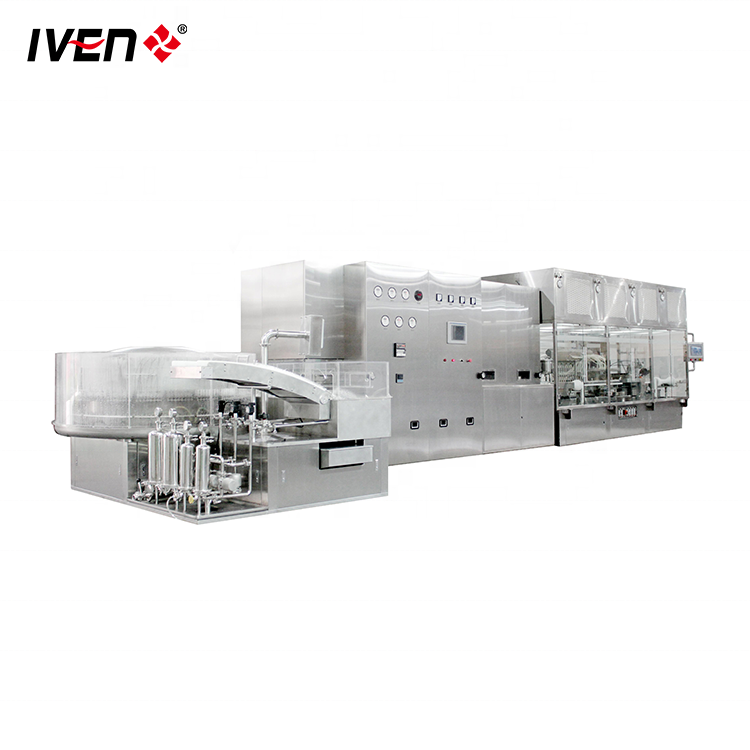

Product name:
-
Ampoule Filling and Sealing Machine
-
Keywords 1:
-
ampoule filling machine
-
Size:
-
1~20 ml
-
Capacity:
-
7000~10000 pcs/h
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
After Warranty Service:
-
Video technical support,Field maintenance and repair service
-
Machinery Capacity:
-
4000BPH--20000BPH
-
Filling Material:
-
Water
-
Certification:
-
CE, ISO, GMP
-
Filling Accuracy:
-
±2%
Quick Details
-
Production Capacity:
-
customized
-
Automatic Grade:
-
Automatic
-
Voltage:
-
220 / 380 V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
IVEN
-
Dimension(L*W*H):
-
2500*2500*1300 mm - 4280*1650*2400 mm
-
Weight (KG):
-
3000
-
Product name:
-
Ampoule Filling and Sealing Machine
-
Keywords 1:
-
ampoule filling machine
-
Size:
-
1~20 ml
-
Capacity:
-
7000~10000 pcs/h
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
After Warranty Service:
-
Video technical support,Field maintenance and repair service
-
Machinery Capacity:
-
4000BPH--20000BPH
-
Filling Material:
-
Water
-
Certification:
-
CE, ISO, GMP
-
Filling Accuracy:
-
±2%
|
Maximum capacity
|
7,000-10,000pcs/h
|
|
WFI consumption
|
0.2-0.3Mpa 1.0 m3/h
|
|
Compressed air consumption
|
0.4Mpa 50 m3/h
|
|
Electric capacity
|
CLQ114Vertical ultrasonic washing machine:15.7KW
|
|
|
RSM620/60 Sterilizing and drying machine 46KW, heating power: 38KW
|
|
|
AGF12 Ampoule filling and sealing machine 2.6KW
|
|
Dimensions
|
CLQ114Vertical ultrasonic washing machine:2500×2500×1300mm
|
|
|
RSM620/60 Sterilizing and drying machine:4280×1650×2400mm
|
|
|
AGF12 Ampoule filling and sealing machine:3700×1700×1380 mm
|
|
Weight
|
CLQ114Vertical ultrasonic washing machine:2600 Kg
|
|
|
RSM620/60 Sterilizing and drying machine:4200 Kg
|
|
|
AGF12 Ampoule filling and sealing machine:2600 Kg
|
Standard washing process
Bottle sprayingUltrasonic pre-washing
Recycled water: inside washing, outside washing
Compressed air: inside blowing
Recycled water: inside washing, outside washing
Compressed air: inside blowing
WFI: inside washing
Compressed air: inside blowing, outside blowing
Compressed air: inside blowing, outside blowing
Recycled water: inside washing, outside washing
Compressed air: inside blowing
Recycled water: inside washing, outside washing
Compressed air: inside blowing
WFI: inside washing
Compressed air: inside blowing, outside blowing
Compressed air: inside blowing, outside blowing
