The roof beam is made of C-shaped steel, the upper part is connected with the top ring of the silo, the lower part is connected
with the pillar of the silo,and the beam is horizontally connected by angle steel to form the framework of the silo top.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
According to the capacity
-
Weight:
-
45000 KG
-
Product name:
-
200 tons 1000tons 5000 Tons Steel Silos
-
Application:
-
Cereal / bulk grain storage
-
Capacity:
-
10-10000 T
-
Coating:
-
Galvanized 275g/m2
-
Safety inspection device:
-
Temperature and moisture monitoring systems
-
Handling equipment:
-
Bucket elevator, drag conveyor, belt conveyor, screw auger.
-
Bottom Type:
-
Flat bottom/Hopper bottom
-
Discount:
-
Contact to get more discount
-
WhatsApp:
-
+86 19139962050
-
Silo type:
-
Assembly Storage Silo
Quick Details
-
Core Components:
-
Steel Plate
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Coban
-
Dimension(L*W*H):
-
According to the capacity
-
Weight:
-
45000 KG
-
Product name:
-
200 tons 1000tons 5000 Tons Steel Silos
-
Application:
-
Cereal / bulk grain storage
-
Capacity:
-
10-10000 T
-
Coating:
-
Galvanized 275g/m2
-
Safety inspection device:
-
Temperature and moisture monitoring systems
-
Handling equipment:
-
Bucket elevator, drag conveyor, belt conveyor, screw auger.
-
Bottom Type:
-
Flat bottom/Hopper bottom
-
Discount:
-
Contact to get more discount
-
WhatsApp:
-
+86 19139962050
-
Silo type:
-
Assembly Storage Silo
Product Description
Coban grain silos are made of high quality 275g/m2, 300g/m2, 350g/m2 hot-dip galvanized steel plates which are rolled into corrugation and made into standard connecting holes. The vertical friction is support by the steel silo stiffeners which are evenly vertically applied in the silos. The connecting screw bolts are served with round galvanized steel washers, the connecting holes are served with age-resistant and water-proof daub belts that are for aviation special purpose.These plates and stiffeners are connected by high-strength screw bolts to keep the flat silo strong and durable. The hopper bottom silos are equipped with flat repairing doors, outside ladder and ladder guard rings.
Feature:
1. Assembly, easy to ship and save freight.
2. Hot-dip galvanized plates (275g/m2-600g/m2), very WATERPROOF &RUST-PROOF.
3. Hopper bottom has low cost price.
4. Silos can store grain safely and save labor cost and space.
Specification
|
Hopper Bottom Steel Silo Technical Specifications
|
|
|
|
|
|
|
|
|
||||||||
|
Capacity(T)
|
50
|
100
|
150
|
200
|
300
|
500
|
1000
|
1500
|
||||||||
|
Φ(m)
|
3.667
|
4.584
|
5.5
|
6.417
|
7.334
|
7.334
|
11
|
12.834
|
||||||||
|
Total H.(m)
|
9.56
|
12.53
|
13.25
|
12.85
|
14.70
|
21.42
|
20.95
|
23.51
|
||||||||
|
V(m3)
Density:0.75ton/m³
|
69
|
150
|
222
|
273
|
415
|
699
|
1346
|
2039
|
||||||||
|
Flat Bottom Steel Silo Technical Specifications
|
|
|
|
|
|
|
|
|
||||||||
|
Capacity(T)
|
1000
|
1500
|
2000
|
2500
|
3000
|
5000
|
8000
|
10000
|
||||||||
|
Φ(m)
|
10.084
|
11.918
|
13.750
|
15.584
|
15.584
|
18.334
|
24.751
|
25.668
|
||||||||
|
Total H.(m)
|
18.69
|
20.34
|
20.87
|
20.3
|
24.78
|
28.6
|
26.99
|
30.6
|
||||||||
|
V(m3)
Density:0.75ton/m³
|
1335
|
2009
|
2701
|
2467
|
4145
|
6693
|
10879
|
13484
|
||||||||
Details Images
Silo Roof
Silo Body
to the stress of each layer.
Access Ladder & Door
Recommend Products
Henan Coban Machinery Equipment Co., Ltd. specializes in the production of 100-10,000 ton hopper bottom and flat bottom corrugated galvanized steel silos. According to various factors such as site, weather, and geology, we provide professional silo design, equipped with elevators, unloading pits, pre-cleaner, conveyors, sweeping auger, and other accessories to meet the diverse needs of customers.
Packing & Delivery
Coban’s own installation engineers team plays a respectable role in the success high-performance whole silo system. Our motivated team has rich installation experience for various types of silos, work under a strict and standardized installation management system, has thorough installation cross-checking rules, and promise one-time project acceptance.

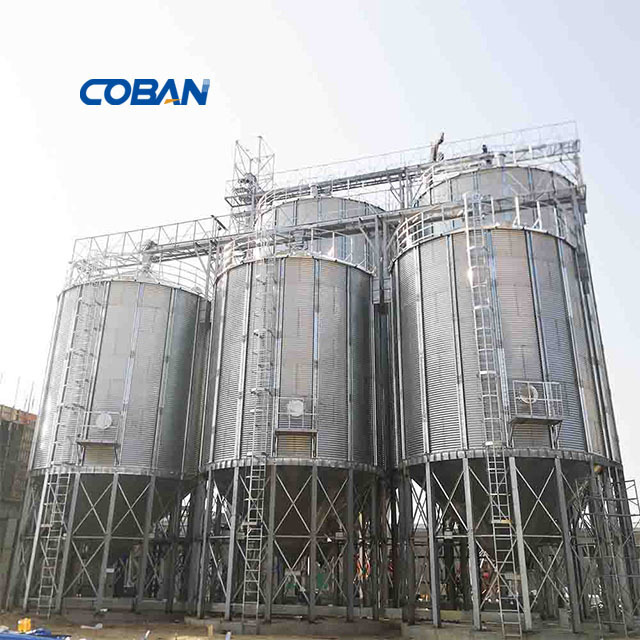

Customer site
Coban Grain Feed Silos have passed ISO, CE, and other certifications, attracting customers from all over the world with an efficient sales team and competitive price advantage, we have exported to more than 50 countries, including the United States, Russia, South Korea, Nigeria, Tanzania, Uganda, Colombia, Thailand, Philippines, Zimbabwe, Kenya, and other countries and regions.
