Quick Details
-
Model Number:
-
Y09-3016
-
Sampling flow rate:
-
2.83L/MIN
-
Particle channels:
-
0.3, 0.5, 1.0, 3.0, 5.0, 10μm
-
Sampling period:
-
1~10000(s)
-
Working hours:
-
6h
-
Count mode:
-
Cumulative value. difference value, concentration value
-
Communication interface:
-
RS232.9600 Baud rate
-
Print:
-
External Printer (Optional)
-
Size:
-
220mm* 130mm* 45mm
-
Weight:
-
0.6kg
-
Power:
-
AC power adapter, AC: 100V to 245 V, 50/60 Hz to DC: 7.4 V, 1 A;
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WEST TUNE
-
Model Number:
-
Y09-3016
-
Sampling flow rate:
-
2.83L/MIN
-
Particle channels:
-
0.3, 0.5, 1.0, 3.0, 5.0, 10μm
-
Sampling period:
-
1~10000(s)
-
Working hours:
-
6h
-
Count mode:
-
Cumulative value. difference value, concentration value
-
Communication interface:
-
RS232.9600 Baud rate
-
Print:
-
External Printer (Optional)
-
Size:
-
220mm* 130mm* 45mm
-
Weight:
-
0.6kg
-
Power:
-
AC power adapter, AC: 100V to 245 V, 50/60 Hz to DC: 7.4 V, 1 A;
Products Description

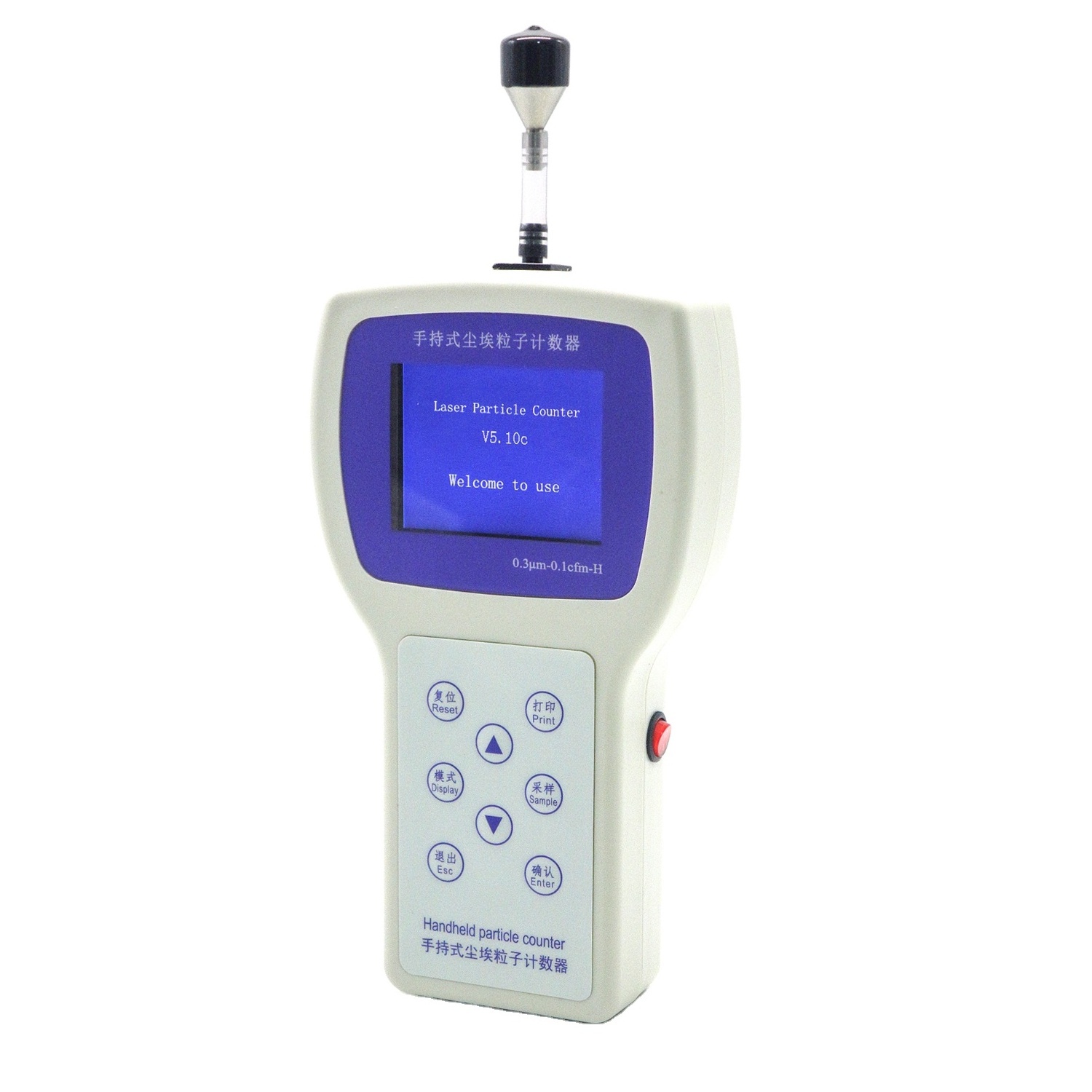

Y09-3016 Laser Particle Counter adopts the principle of light scattering, when the suspended particles in the air after a photosensitive area, scattering and its particle size with a certain proportion of luminous flux, get treated by photoelectric conversion, amplification and be harvested equivalent diameter and number of particles.
Features
1.Light source：Semiconductor laser, life is more than 35000 hours.
2.Sampling flow:2.83L/min(0.1ft3)Imported Pump.
3.Display: Touch Button display, a period, the concentration of the real-time display, can display time, date, measurements, temperature and humidity, room number, number of sampling points, sampling, battery, state parameters, such as 95% UCL coputing, can directly show the particle concentration.
4.Rechargeable Battery: Lithium ion battery, 7.4 V, 2200mAh.
5.Power supply: external AC power adapter, AC: 100V -245V, 50/60 Hz to DC:7.4V, 1A.
6.Working time: 6 hours(Provide a fuel gauge of remaining battery capacity)
7.Count mode: The cumulative values, the difference and density.
8.Test mode: Single, repetitive, continuous, computing, remote.
9.Unit conversion: The unit can be converted to M3.
10.Work environment: Temperature:10-40℃(50-104℉)Relative humidity: 20-90%RH, no dew, Atmospheric pressure: 86-106Kpa
Specifications
|
Model
|
Y09-3016
|
|
Sampling flow rate
|
2.83L/MIN
|
|
Particle channels
|
0.3, 0.5, 1.0, 3.0, 5.0, 10μm, six particle sizes are counted simultaneously.
|
|
Sampling period
|
1～10000(s) Delay count: 0～99(S)
Self-cleaning time: ≤10(min) |
|
Power
|
AC power adapter, AC: 100V to 245 V, 50/60 Hz to DC: 7.4 V, 1 A;
|
|
Dimension
|
230×130×45mm
|
|
Weight
|
0.6KG
|
Package
