Wearproof Shutter
----Distributed on both sides and above to provide additional wear.
Guide Bar
Yellow guide bars with reflec-tive properties provide better safety.
- Product Details
- {{item.text}}
Quick Details
-
Control System:
-
Tai'an brand
-
Single-phase or Three-phase Power Supply:
-
380,50Hz
-
Power:
-
0.75kw
-
Control Unit:
-
Extraposition
-
Control Module Protection Level:
-
IP54
-
Average Inflating Time of Airbag:
-
20 Seconds
-
Working Temperature:
-
From-35℃ To + 70℃
-
PVC Curtain Plate:
-
3.6kg/m
-
Thickness:
-
3mm
-
Medial / Lateral color:
-
White (RAL9003)
Quick Details
-
Size:
-
3000*3000/3400*3400/Customization
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Panda
-
Control System:
-
Tai'an brand
-
Single-phase or Three-phase Power Supply:
-
380,50Hz
-
Power:
-
0.75kw
-
Control Unit:
-
Extraposition
-
Control Module Protection Level:
-
IP54
-
Average Inflating Time of Airbag:
-
20 Seconds
-
Working Temperature:
-
From-35℃ To + 70℃
-
PVC Curtain Plate:
-
3.6kg/m
-
Thickness:
-
3mm
-
Medial / Lateral color:
-
White (RAL9003)
Dock Seal Type
Sponge dock seal
Mechanical dock seal
Inflatable dock seal
Product Show
Product Details
Inflatable Dock Seal
By continuously inflating the airbag using a fan, the airbag expands to tightly fit against the truck body, achieving high sealing performance and preventing the exchange of cold and hot air between the interior and exterior.
|
Control System
|
Tai'an brand
|
|
Single-phase or Three-phase Power Supply
|
380,50Hz
|
|
Power
|
0.75kw
|
|
Control Unit
|
Extraposition
|
|
Control Module Protection Level
|
IP54
|
|
Average Inflating Time of Airbag
|
20 Seconds
|
|
Working Temperature
|
From-35℃ To + 70℃
|
|
PVC Curtain Plate
|
3.6kg/m
|
|
Thickness
|
3mm
|
|
Unit Weight
|
3.6kg/m
|
|
Air Sac
|
0.5mm
|
|
Material
|
Cordura 1000
|
|
Thickness
|
0.5mm
|
|
Unit Weight
|
0.4kg/m
|
|
Maximum Tensile Capacity
|
Greater than 290 N/m m of ²
|
|
Foam Board
|
Polyurethane Foam
|
|
Thickness
|
50mm
|
|
Medial / Lateral color
|
White (RAL9003)
|

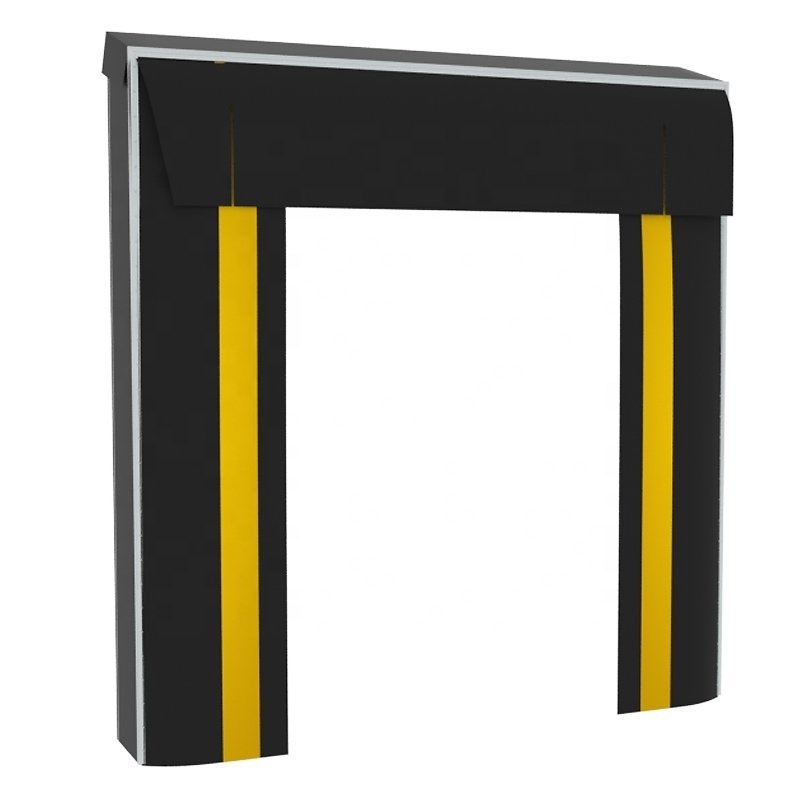

Mechanical Dock Seal
By closely contacting the top-hanging curtain and side-hanging curtain with the truck compartment, it achieves a preliminary rainproof sealing effect.
|
Front Curtain Panel Parameters
|
|
|
|
Longitudinal Tensile Resistance
|
＞550N
|
|
|
Lateral Tensile Force
|
＞900N
|
|
|
Maximum Tensile Strength
|
250N/mm²
|
|
|
Metal Friction Coefficient
|
0.3
|
|
|
PVC Friction Factor
|
0.4
|
|
|
Thickness
|
3mm
|
|
|
Unit Weight
|
3.6kg/mm
|
|
|
Working Temperature
|
From-35℃ to + 90℃
|
|
|
Side PVC Cord Fabric Parameters
|
|
|
|
Stretching Resistance
|
250N
|
|
|
Thickness
|
0.5mm
|
|
|
Unit Weight
|
0.7kg/mm
|
|
|
Working Temperature
|
From-35℃ to + 70℃
|
|
|
Aluminum Alloy Frame Parameters
|
|
|
|
Back End Profile Size
|
50*44*4mm
|
|
|
Front End Profile Size
|
45*44*4mm
|
|
|
Frame Size
|
50*25*4mm
|
|
|
Front Pressing Plate Size
|
34*4.8mm
|
|
Sponge Dock Seal
Fixed to the surface of the wall, the sponge dock seal is compressed by the truck, utilizing the natural rebound capability of the sponge to achieve a sealing effect.
Strictly Sealed Environment
----High performance sponge.
Enhanced High-Quality Performance
----The fabric fixed with screws and
metal buttonholes always ensures an even air spillage.
Better Security Assurance
----Effectively reduces energy consumption while ensuring personal and property safety.
|
Sponge Density
|
20 density (20 kg per cubic meter)
|
|
Sponge Specifications
|
W300* H250
|
|
Package Specification
|
Black 1.0PVC wear-resistant waterproof base cloth
|
|
Protective Scales
|
300mmx 250mm with 80mm wide warning strip
|
|
Fixed corner code
|
60 width x3mm thick galvanized
|
|
Fixed Frame
|
30mmx40mm galvanized square tube
|
|
Hanging Curtain Specifications
|
Lower portal hole 600mm
|
|
Adjustable shaft specification
|
89mm
|
|
Manual Adjustment (adjustable)
|
Hand hoist
|
|
Box Cover (adjustable)
|
1.0 Galvanized material
|
