Quick Details
-
Filling Accuracy:
-
0.5%, 1% (liquid Level)
-
Voltage:
-
220V / 380V /450V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
iPack
-
Dimension(L*W*H):
-
3880*2200*2800mm
-
Weight:
-
5000 KG
-
Key words:
-
Can filling machine
-
Function:
-
Filling & Seaming
-
Filling material:
-
Carbonated beverage / soda drinks
-
Material:
-
SUS304 / 316
-
Filling volume:
-
10L - 20L
-
Capacity:
-
2000-30000bph
-
Suitable for:
-
Carbonated drinks
-
PLC & Touch screen:
-
Siemens
-
Suitable bottle:
-
Pop can / Aluminum can
-
After-sales Service Provided:
-
Field maintenance and repair service
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 12000BPH, 6000BPH, 2000BPH, 1000BPH, Other
-
Packaging Material:
-
Plastic, Metal, Glass
-
Filling Material:
-
Beer, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
0.5%, 1% (liquid Level)
-
Voltage:
-
220V / 380V /450V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
iPack
-
Dimension(L*W*H):
-
3880*2200*2800mm
-
Weight:
-
5000 KG
-
Key words:
-
Can filling machine
-
Function:
-
Filling & Seaming
-
Filling material:
-
Carbonated beverage / soda drinks
-
Material:
-
SUS304 / 316
-
Filling volume:
-
10L - 20L
-
Capacity:
-
2000-30000bph
-
Suitable for:
-
Carbonated drinks
-
PLC & Touch screen:
-
Siemens
-
Suitable bottle:
-
Pop can / Aluminum can
-
After-sales Service Provided:
-
Field maintenance and repair service
Product Description
Beer Can
K
etchup / Sauce Can
Grain/ Olives/ Beans Can
|
Technical Parameter---Gallon Water Filling Machine
|
|
|
|
|
|
|
||||||
|
Model
|
GDF12-1
|
GDF18-4
|
GDF24-4
|
GDF32-6
|
GDF40-8
|
|
||||||
|
Capacity(for 500ml)
|
2000
|
8000
|
10000
|
15000
|
20000
|
|
||||||
|
Suitable bottle shapes
|
Pop can / Tin can / PET can
|
|
|
|
|
|
||||||
|
Bottle diameter(mm)
|
Dia50 ~ Dia99mm
|
|
|
|
|
|
||||||
|
Bottle height (mm)
|
70-133mm
|
|
|
|
|
|
||||||
|
Filling type
|
Isobaric filling/Normal pressure filling
|
|
|
|
|
|
||||||
|
Application
|
beverage can filling machine
|
|
|
|
|
|
||||||
|
Total power (KW)
|
2.4kw
|
4.5kw
|
5.2kw
|
6.5kw
|
7.2kw
|
|
||||||
|
Overall dimensions
|
2.5*1.9m
|
2.8*1.9m
|
3.2*2.2m
|
3.4*2.5m
|
4.8*2.3m
|
|
||||||
|
Height
|
2.3m
|
2.5m
|
2.5m
|
2.5m
|
2.5m
|
|
||||||
|
Weight(kg)
|
2000kg
|
3500kg
|
4500kg
|
5000kg
|
7000kg
|
|
||||||
Details Images

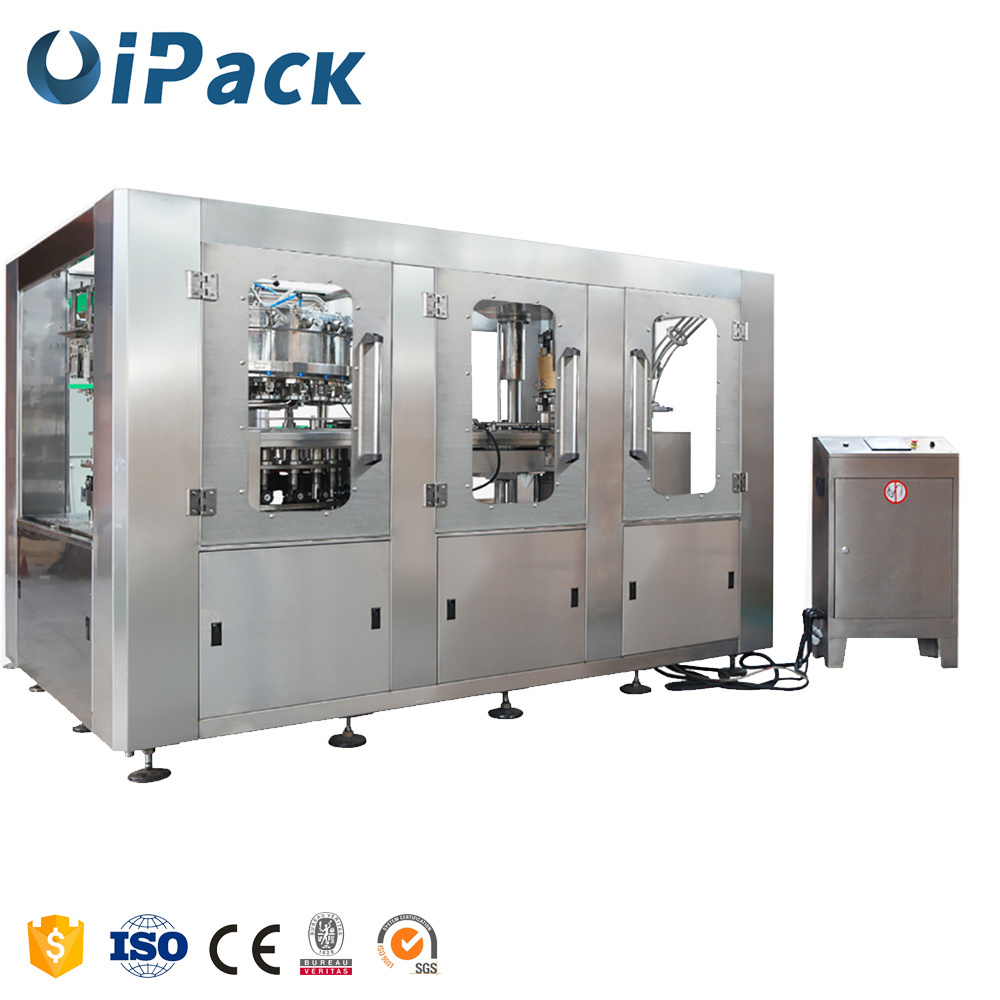

Can Filling Seaming 2-in-1 Machine
The machine is suitable for filling and sealing beverage or brewage industry, it have such features as rapid filling and sealing speed, consistent height from the liquid level in the can to the can mouth after filling, stable machine operation ,good sealing quality, beautiful and decent appearance, convenient use and maintenance, touch screen operation, frequency conversion speed adjustment, etc. It is the most ideal filling and sealing device for beverage plants and brew houses.
