Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Industrial
-
Type:
-
mobile scaffolding
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Topway
-
Model Number:
-
mobile scaffolding
-
color:
-
white, bule, green, sliver, orange, dark red..etc
-
surface finished:
-
electroplate, hot dip galvanized
-
Size:
-
1219*1930mm
-
type:
-
china supplier building materials Mobile Steel structure Frame
-
main material:
-
Steel Q195,Q235,Q345
-
stand pipe:
-
42*2.0mm
-
Weight:
-
10.5-17.8kg
-
Certificate:
-
ISO
-
Component:
-
catwalk/joint pin/screw jack/cross brace
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Office Building
-
Design Style:
-
Industrial
-
Type:
-
mobile scaffolding
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Topway
-
Model Number:
-
mobile scaffolding
-
color:
-
white, bule, green, sliver, orange, dark red..etc
-
surface finished:
-
electroplate, hot dip galvanized
-
Size:
-
1219*1930mm
-
type:
-
china supplier building materials Mobile Steel structure Frame
-
main material:
-
Steel Q195,Q235,Q345
-
stand pipe:
-
42*2.0mm
-
Weight:
-
10.5-17.8kg
-
Certificate:
-
ISO
-
Component:
-
catwalk/joint pin/screw jack/cross brace
china supplier building materials Mobile Steel structure Frame

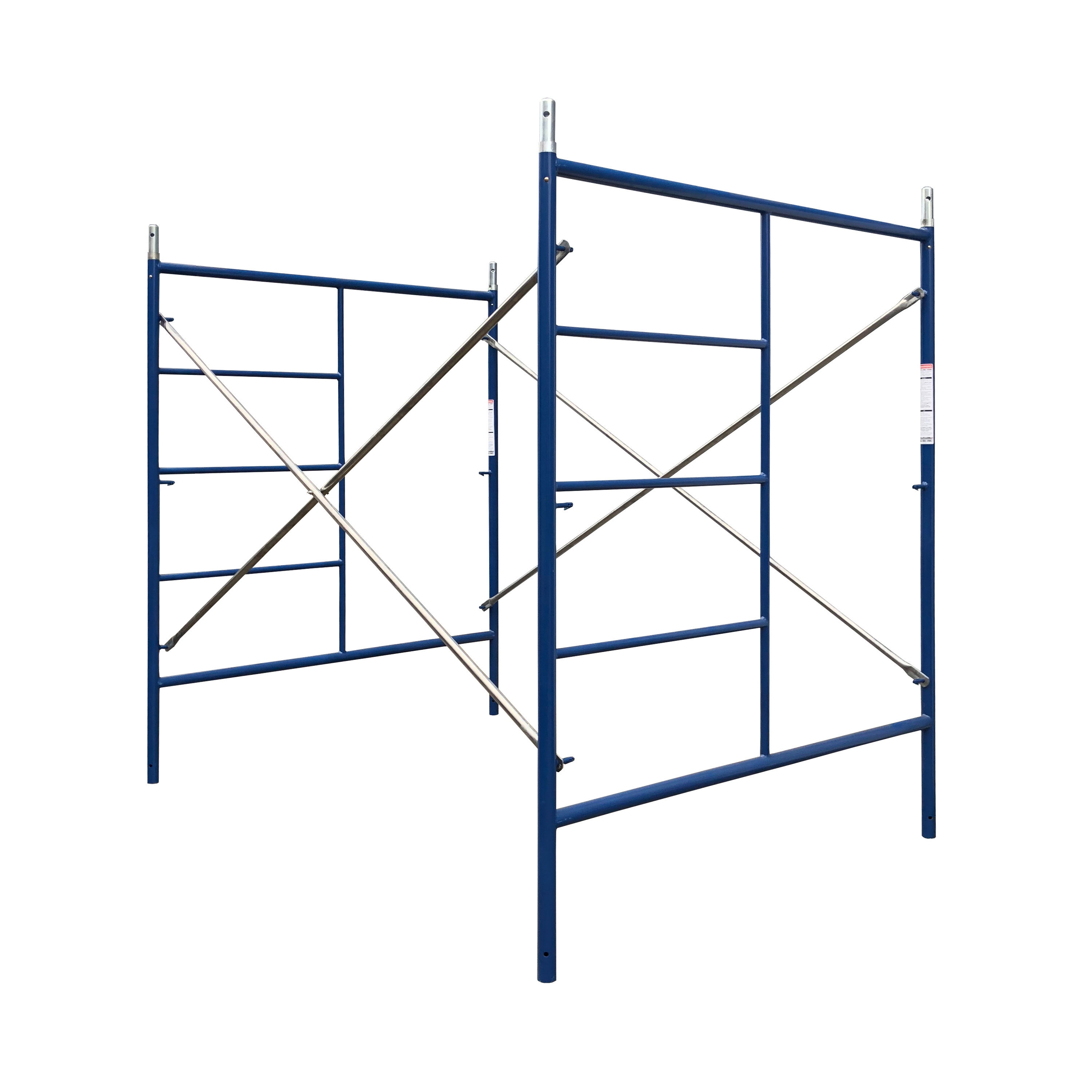

Topway movable scaffolding system is set up by 2pcs frame, 2set brace cross, 4pcs joint pin, also can together with scaffolding catwalk, screw jack or wheels. it is construction site for workers to operate and slove the vertial and horizontal tranport and erected a variety of stents. movable scaffodling system has a simple loading and unloading, carrying capacity, the use of safe and reliable features, the development of fast, mobile scaffolding is a variety of new scaffolding, the earliest developed, the most used in construction working.
Frame have two kinds: door frame and ladder frame. currently our frame are painted, it is good for environment, the painted color can use more than 5 years, very cost-effective. for all our masonry frame system can use 3-5 years in common environment.
| Product | Scaffolding Frame |
| Place of Origin | Tianjin China |
| Brand Name | World Scaffolding |
| Material | Q195, Q235, Q345 |
| Surface Treatment | Hot Dip Galvanized, Electroplate, Painted, Powder Coated |
| Type | H-frame scaffolding,Ladder frame scaffolding,Shoring frame |
| Color | Yellow,blue,silver or customized |
| Certificate | CE,SGS,ISO9001,BV etc. |
| Application |
Working platform,Bridge,tunnel,petrifaction,railway,airport,shipbuilding, dock industry etc. |
| Main Components | Frame,catwalk,joint pin,cross brace,base jack,u-head jack and caster |
| Packing | in bulk or steel pallet or as customer's request |
| Delivery Time | About 10-20 days after confirmation |
| Service | OEM Service is available |
| Production Capability | 100 tons per day |
| Payment Terms | L/C, T/T, |
Detail size as below
| Frame Scaffolding | Walk-through Frame | 1219*1930mm |
Q235 42.7*2.3 42.7*2.0 27*1.5 |
Galvanized Painting Electro-plate |
SGS ISO9001 |
| 1219*1700mm | |||||
| 1219*1524mm | |||||
| 1219*914mm | |||||
| Ladder Frame | 1219*1930mm | ||||
| 1219*1700mm | |||||
| 1219*1524mm | |||||
| 1219*914mm | |||||
| Mason Frame | 1524*940mm |
Q235 42.7*2.3 42.7*2.0 48*3.0 48*2.5 27*1.5 |
Galvanized Painting Electro-plate |
||
| 1524*1245mm | |||||
| 1524*1397mm | |||||
| 1524*1549mm | |||||
| 1524*2007mm | |||||
| Mini Frame | 1219*914mm | ||||
| 914*914mm | |||||
| Apartment | 914*3251mm | ||||
| 914*2032mm |
| Model | Spc(mm) | Surface |
| Portal 914×1700mm | Vertical:φ42×2.2mm,Elbow:φ25×1.5mm | Hot dip galvanized |
| Portal1219×1930mm | Vertical:φ42×2.2mm,Elbow:φ25×1.5mm | |
| Portal1219×1700 mm | Vertical:φ42×2.2mm,Elbow:φ25×1.5mm | |
| Portal 1219×914mm | Vertical:φ42×2.0mm,Elbow:φ25×1.5mm | |
| Ladder 914×1700mm | Vertical:φ42×2.2mm,Elbow:φ25×1.5mm | |
| Ladder 914×914mm | Vertical:φ42×2.2mm,Elbow:φ25×1.5mm |
