IP Camera 10/100mbps Unmanaged PoE Switch 4 8 16 24 Port Network Switch Poe with Uplink

IP Camera 10/100mbps Unmanaged PoE Switch 4 8 16 24 Port Network Switch Poe with Uplink

FOB Reference Price: Get Latest Price

≥2 Pieces

US $8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Gxcom

Model Number:: TS6204P-2 TS6208P-2 TS6216P-2G1F

Place of Origin:: Guangdong, China

Product Name:: Unmanaged 4/8/16 Port Poe Switch for IP Camera

Applications:: Support PoE IP Cameras

Certification:: CE,FCC,Rohs

PoE Ports:: 4/8/16 port Support Poe

Keywords:: 100mbps Poe Switch 4 8 16 port

PoE Standard:: IEEE802.3af/at (PoE+)

Bandwidth:: 1.6/20gbps

Brand:: Gxcom

Part Number:: TS6204P-2, TS6208P-2, TS6216P-2G1F

Warranty:: 1 year

Quick Details

Transmission Rate:: 10/100Mbps

Communication Mode:: Full-Duplex & Half-Duplex

Switch Capacity:: 1.6/2Gbps

Brand Name:: Gxcom

Model Number:: TS6204P-2 TS6208P-2 TS6216P-2G1F

Place of Origin:: Guangdong, China

Product Name:: Unmanaged 4/8/16 Port Poe Switch for IP Camera

Applications:: Support PoE IP Cameras

Certification:: CE,FCC,Rohs

PoE Ports:: 4/8/16 port Support Poe

Keywords:: 100mbps Poe Switch 4 8 16 port

PoE Standard:: IEEE802.3af/at (PoE+)

Bandwidth:: 1.6/20gbps

Brand:: Gxcom

Part Number:: TS6204P-2, TS6208P-2, TS6216P-2G1F

Warranty:: 1 year

Product Description

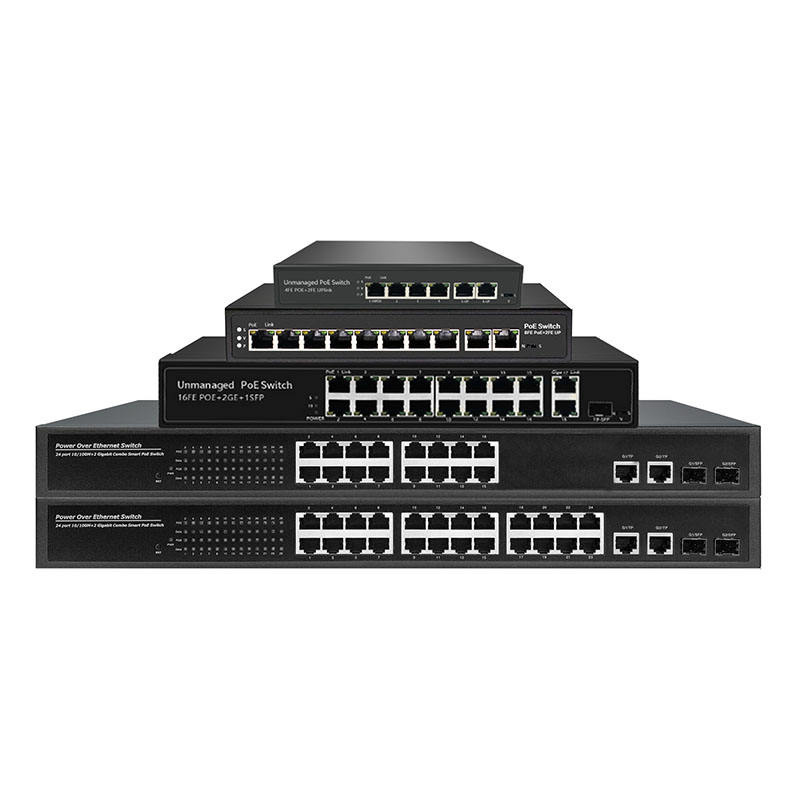

Unmanaged 4/8/16 Port Poe Switch for IP Camera

TS6200 series are 100Mbps unmanaged Network PoE switch. The series offer 4/8/16 port 10/100Mbps auto negotiation port, high integration design. As PoE power supply device,they can automatically detect and supply power for powered devices suitable for PoE standard.Having the features of "play and plug",no need of configuration and easier and more convenient usage,the series is satisfied in network environment required high-density PoE supplying power and adapts to construction of economic and efficient network in hotels ,schools,factory areas,domitories and small enterprises.

Features:

* PoE Standard:IEEE802.3af/at PoE+, support all ports standard detection.

* Flow control method: full duplex adopts IEEE 802.3x,half duplex adopts Back pressure.

* Port supports Auto MDI/MDIX. * Port supports lightning protection(secondary levelrequirements).

* Single port supports PoE power:30W . * Exchanging Mechanism: Store and forward.

* All ports support exchange atwire speed.

* Zero-configuration: automatically supply for adaptive devices.

* Panel indicator monitors operating status and helps fault analysis.

Application:
IP Camera

IP Phone

Wireless AP

For any question, please send inquiry to get more details.

Unmanaged 4 Port 100m PoE Switch

Model: TS6204P-2

Bandwidth: 1.6Gbps

Power Input: 48/52Vdc

PoE Standard: IEEE802.3af/at (PoE+)

Weight: 0.75kg

Unmanaged 8 Port 100m PoE Switch

Model: TS6208P-2

Bandwidth: 20Gbps
Power Input: 48/52Vdc
PoE Standard: IEEE802.3af/at (PoE+)
Weight: 1.2kg

Unmanaged 16 Port 100m PoE Switch

Model: TS6216P-2G1F

Bandwidth: 20Gbps
Power Input: AC100~240V
PoE Standard: IEEE802.3af/at (PoE+)
Weight: 2.5kg

Application

Customer review

Packing & Delivery

Package Type: 1. Standard Box (54cm*34cm*9cm) 2.One standard set including 1 device, 1 charger, 1 manual instruction, 1 certificate and 1 warranty card. 3. Shipping terms: DHL/UPS/TNT/FedEx/EMS etc.., please contact supplier to get latest shipping time to your country. 4. Enough Stocks, but for large quantities, please contact supplier to get accurate leading time Packing Details : Standard Box(54cm*34cm*9cm), Gross Weight : 4.2KG Delivery Details : Delivery Terms: DHL/TNT/UPS/Fedex/EMS
