Quick Details
-
Product name:
-
HD MI to IP Encoder
-
Input:
-
8/12/16/20/24 HD MI optional
-
Resolution:
-
1920*1080_60P, 1920*1080_60i
-
Video encoding:
-
MPEG-4 AVC /H.264
-
Audio encoding:
-
MPEG-1 Layer 2
-
Bit-rate:
-
1Mbps~13Mbps each channel
-
Stream output:
-
IP (MPTS/SPTS) output over UDP/RTP
-
Application:
-
DTV,DVB,IPTV,OTT
-
Management:
-
Network management(WEB)
-
Upgrade:
-
Ethernet software
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
COLABLE
-
Model Number:
-
COL5181H
-
Product name:
-
HD MI to IP Encoder
-
Input:
-
8/12/16/20/24 HD MI optional
-
Resolution:
-
1920*1080_60P, 1920*1080_60i
-
Video encoding:
-
MPEG-4 AVC /H.264
-
Audio encoding:
-
MPEG-1 Layer 2
-
Bit-rate:
-
1Mbps~13Mbps each channel
-
Stream output:
-
IP (MPTS/SPTS) output over UDP/RTP
-
Application:
-
DTV,DVB,IPTV,OTT
-
Management:
-
Network management(WEB)
-
Upgrade:
-
Ethernet software

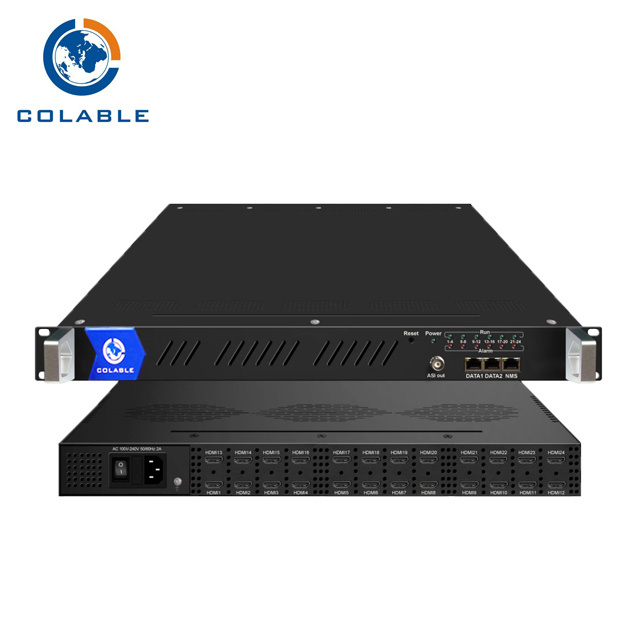

12 Channel hdmi h.264 Encoder for IPTV & CATV & DSTV COL5181H
Please contact Dana for more details, SKYPE: colable6 WHATSAPP: 86-18180687761
8/12/16/20/24*HDMI to 8/12/16/20/24*SPTS or 1MPTS to IP UDP Encoder
Outline
COL5181H H.264 HD IP Encoder is a professional HD audio & video encoding and multiplexing device. It has 8 HDMI
( 12 /16/20/24 HDMI optional) video input interfaces, supporting MPEG-4 video encoding and MPEG 1 Layer 2 audio
encoding. This device can simultaneously encode 8 ( 12/ 16/20/24 HDMI optional) channel HD audio & video; moreover,
it has an IP output port can support 1MPTS and 8 SPTS ( 12 /16/20/24 SPTS) IP out. In conclusion, its high integrated and
cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital
head-end, satellite digital TV broadcasting etc.
Features
- 8 /12/16 / 20//24 × HDMI video inputs with 8 /12/1620//24 SPTS and 1 MPTS output through Data 1 or Data 2
- Support MPEG4 AVC/H.264 video encoding format
- MPEG1 Layer II audio encoding format, support audio gain adjustment
- Support 1 ASI output (optional) as copy of MPTS
- Support IP output over UDP and RTP
- Support QR code, LOGO, OSD insertion
- Support “Null PKT Filter” function
- Support PID Remapping
- Support PCR accurate adjusting
- Support PSI/SI editing and inserting
- Control via web management, and easy updates via web
- Lowest cost per channel, breakthrough price
Principle Chart
Technical specification
|
Input |
8 HDMI inputs ( 12/ 16/20/24 input optional) |
|||
|
Video |
Resolution |
input |
1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, |
|
|
output |
1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P, |
|||
|
Encoding |
MPEG-4 AVC/H.264 |
|||
|
Bit-rate |
1Mbps~13Mbps each channel |
|||
|
Rate Control |
CBR/VBR |
|||
|
GOP Structure |
IP…P (P Frame adjustment, without B Frame ) |
|||
|
Audio |
Encoding |
MPEG-1 Layer 2 |
||
|
Sampling rate |
48KHz |
|||
|
Resolution |
24-bit |
|||
|
Bit-rate |
64kbps,128Kbps,192kbps,224kbps,256kbps, 320kbps,384kbps |
|||
|
Multiplexing |
Maximum PID Remapping |
180 input per channel |
||
|
Function |
PID remapping ( automatically or manually) |
|||
|
Accurate PCR adjusting |
||||
|
Generate PSI/ SI table automatically |
||||
|
Stream output |
8 SPTS ( 12 /16/20/24 SPTS) IP or 1MPTS output over UDP/RTP, 1*1000 Base-T Ethernet interface ASI output(optional) as copy of MPTS |
|||
|
System function |
Network management(WEB) |
|||
|
Chinese and English language |
||||
|
Ethernet software upgrade |
||||
|
Miscellaneous |
Dimension(W×L×H) |
482mm×410mm×44mm |
||
|
Approx weight |
8kg |
|||
|
Environment |
0~45℃(work); -20~80℃ ( Storage ) |
|||
|
Power requirements |
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
|||
|
Power consumption |
70W |
|||
