Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
CE
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Perfect Total
-
Model Number:
-
SDE580-C
-
Load Power (W):
-
1KW
-
Output Voltage (V):
-
AC110V-240V
-
Output Frequency:
-
50/60
-
Work Time (h):
-
72
-
Product name:
-
Customized mobile solar power CCTV surveillance trailer
-
Light Tower Size(mm):
-
3410x1000x900
-
Low battery alarm:
-
yes
-
Battery Capacity:
-
6x200AH DC24V
-
Hydraulic Mast:
-
7m/22.9ft
-
Mast Material:
-
Galvanized Steel
-
Solar panels:
-
4x300W monocrystal
-
Hitch:
-
50mm Ball/70mm ring
-
Trailer Brake:
-
Mechanical system
-
CAT6 Cables:
-
5
Quick Details
-
Application:
-
Outdoor
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lead-Acid, Lithium Ion
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
CE
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Perfect Total
-
Model Number:
-
SDE580-C
-
Load Power (W):
-
1KW
-
Output Voltage (V):
-
AC110V-240V
-
Output Frequency:
-
50/60
-
Work Time (h):
-
72
-
Product name:
-
Customized mobile solar power CCTV surveillance trailer
-
Light Tower Size(mm):
-
3410x1000x900
-
Low battery alarm:
-
yes
-
Battery Capacity:
-
6x200AH DC24V
-
Hydraulic Mast:
-
7m/22.9ft
-
Mast Material:
-
Galvanized Steel
-
Solar panels:
-
4x300W monocrystal
-
Hitch:
-
50mm Ball/70mm ring
-
Trailer Brake:
-
Mechanical system
-
CAT6 Cables:
-
5

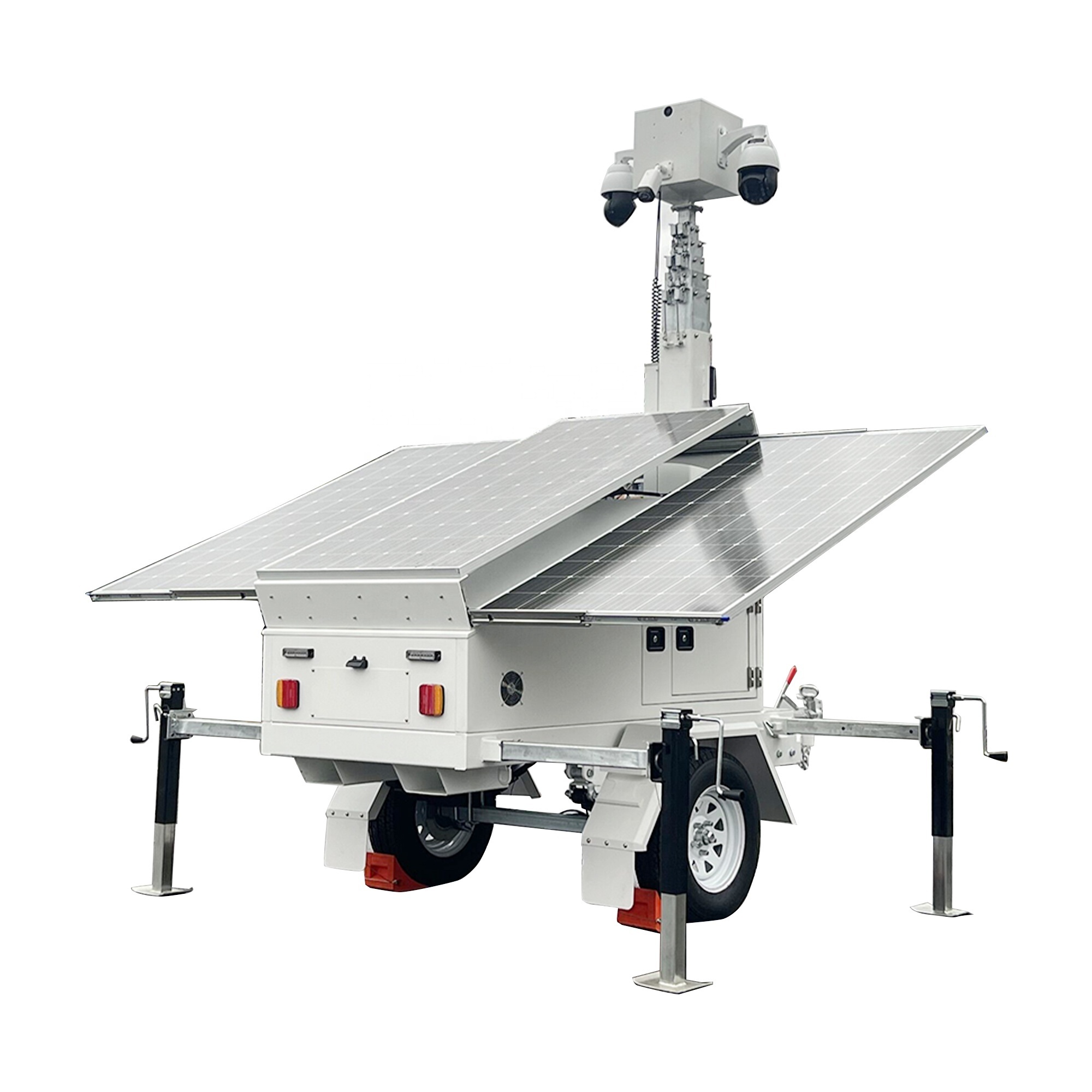

Customized mobile solar power CCTV surveillance trailer
Perfectotal is using its experiencing and the latest technology in combining solar renewable energy and energy efficient LED outdoor lights to introduce commercial quality. The trailer mounted mobile solar light tower can be used for any applications such as stadium, mining, construction sites, raod, warehouse, airport, etc.
- Zero Noise
- No diesel fuel required
- Zero Diesel smell
- Easy maintenance
- LED lighting lasts up to 50,000Hrs
7m mobile solar cctv trailer system
|
| Solar | |
| Type | Monocrystalline Silicon |
| Number | 4 |
| Panel Wattage | 380W |
| Panel Output | 1520W |
| Controller | 60A MPPT |
| Charger | |
| 60A MPPT | |
| Batteries | |
| Capacity | 8*200Ah |
| Voltage | DC24V |
| Material | Colloid |
| Trailer | |
| Trailer Type | Single Axle |
| Tire and Rim Size | 2x14'' R185C |
| Outrigger | Manual |
| Tow Hitch | 2 inch ball |
| Mast Raise | Manual |
| Mast Height | 7m/22.9ft |
| Wind Rating Speed | 100kph/62kpm |
| Work Temp. | -35~60℃ |
| Tower Dimensions | |
| LxWxH | 3410x1000x900 mm with draw bar |
| Weight | 1600kgs |
| Top Box | |
|
Small Top box can mount camera which mount on top
of mast waterproof IP67 |
|
| Loading Capacity | |
| 20GP | 3 |
| 40HC | 6 |
Options
|
|
1, PTZ Camera 2, Bullet Camera 3, 4G Router 4, Backup Diesel Generator 5, Led lamps 6, Inverter 600W DC24V to AC220-240V 7, Charger for Gel Battery |
