Quick Details
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
wine filter machine
-
Application:
-
wine,juice,water,herb
-
Layer:
-
10-44 layers
-
Filter area:
-
0.4-7m2
-
filter medium:
-
0.8um
-
Filter pressure:
-
0.15-0.3 Mpa
-
Water flow:
-
6-23t/h
-
Motor power:
-
1.1-3kw
-
Machine material:
-
304 and 316 stainless steel
Quick Details
-
Weight (KG):
-
100
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
wine filter machine
-
Application:
-
wine,juice,water,herb
-
Layer:
-
10-44 layers
-
Filter area:
-
0.4-7m2
-
filter medium:
-
0.8um
-
Filter pressure:
-
0.15-0.3 Mpa
-
Water flow:
-
6-23t/h
-
Motor power:
-
1.1-3kw
-
Machine material:
-
304 and 316 stainless steel

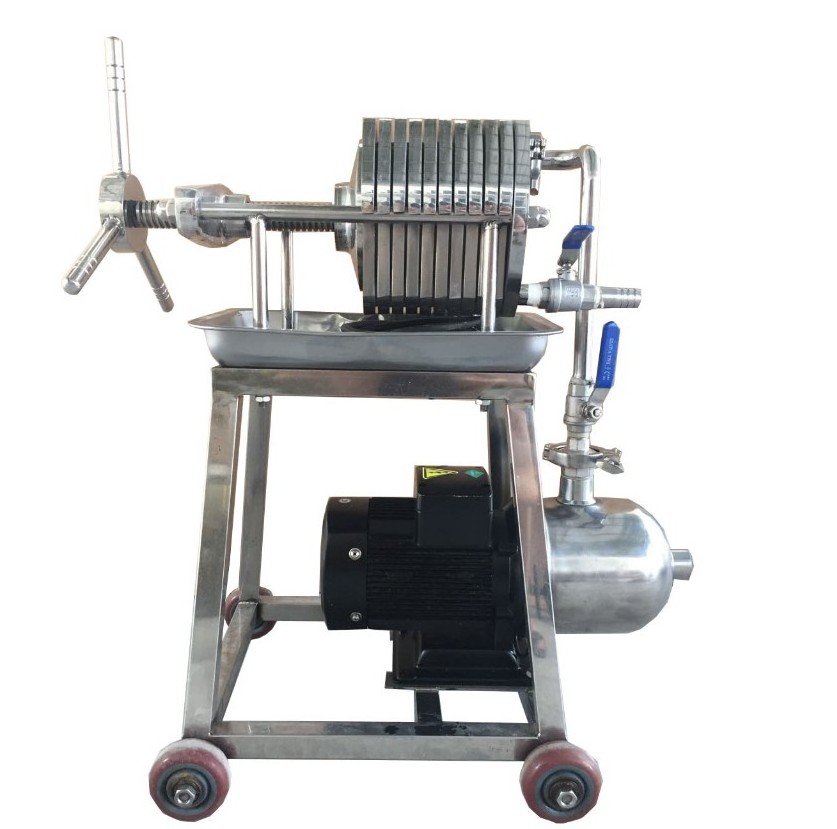

Stainless steel wine filter / filtering machine / Liquor Filter Sake Filter Press Machine
Application of wine filter machine :
Multilayer stainless steel frame filter is used in separating all kinds of suspension, and is widely used in medicine, food, chemical, water treatment, electronic, textile and plating industry.
Opearation principle of wine filter machine:
The suspension is delivered to each sealing filer chamber by pump, under the pressure, filtrate pass the filtering layer and screen filter or other filter material, be discharged by liquid outlet. The filter residue is stored in the steel frame and come into being filter cake.
Features of wine filter machine:
This machine is made by SUS304 or SUS316L high grade stainless steel with corrosion resistance. Filter plate is designed screw structure, You can change different filter material according to different filter medium and productive technology. You also can increase or decrease the quantity of layer according to your filter flow. When it is working, it filtrates with pressure seal, no lose of liquid and good clearity. You can customize multistage filter device, first stage is rough filter stage, secondary is fine filter stage, then can safe time, also increase your filter ratings. The sealing part of this machine is silica gel seal with high-temperature resistance, non-poisonous and no leakage.
Technical data of wine filter machine:
|
Model |
layer |
Filter area (m2) |
Size of filter material |
Filter medium( μm ) |
Filtration pressure (Mpa) |
Water flow (t/h) |
Motor power (kw) |
Overall dimension (mm) |
|
YW-200 |
10 |
0.4 |
200X200 |
0.8 |
0.15 |
3 |
1.1 |
650x380x650 |
|
YW-300 |
10 |
0.9 |
300X300 |
0.8 |
0.15 |
6 |
1.1 |
700x500x800 |
|
YW-400 |
10 |
2 |
400x400 |
0.8 |
0.15 |
10 |
1.5 |
900x600x1000 |
|
YW-400 |
20 |
3 |
400x400 |
0.8 |
0.15 |
12 |
1.2 |
1100x600x1000 |
|
YW-400 |
26 |
4 |
400x400 |
0.8 |
0.2 |
15 |
2.2 |
1150x600x1000 |
|
YW-400 |
32 |
5 |
400x400 |
0.8 |
0.2 |
18 |
2.2 |
1200x600x1000 |
|
YW-400 |
38 |
6 |
400x400 |
0.8 |
0.3 |
21 |
2.2 |
1300x600x1000 |
|
YW-400 |
44 |
7 |
400x400 |
0.8 |
0.3 |
23 |
3 |
1350x600x1000 |
