Quick Details
-
Brand Name:
-
HBXG
-
Model Number:
-
SD8
-
Dimension(Long * Breadth * High):
-
7930*3940*3549 mm
-
MODEL:
-
SD8
-
Operating weight:
-
31300kg
-
Ground pressure:
-
94kpa
-
Dozer capacity:
-
11.24 m3
-
Blade width:
-
3940 mm
-
Max. digging depth:
-
582 mm
-
Overall dimensions(including ripper):
-
7930*3940*3549 mm
-
Engine power:
-
257 kw
-
Torque storage coefficient:
-
20%
-
Rated revelation:
-
2100 rpm
Quick Details
-
Machine Weight:
-
37300 KG
-
Dozing Capacity:
-
11.24m³
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HBXG
-
Model Number:
-
SD8
-
Dimension(Long * Breadth * High):
-
7930*3940*3549 mm
-
MODEL:
-
SD8
-
Operating weight:
-
31300kg
-
Ground pressure:
-
94kpa
-
Dozer capacity:
-
11.24 m3
-
Blade width:
-
3940 mm
-
Max. digging depth:
-
582 mm
-
Overall dimensions(including ripper):
-
7930*3940*3549 mm
-
Engine power:
-
257 kw
-
Torque storage coefficient:
-
20%
-
Rated revelation:
-
2100 rpm

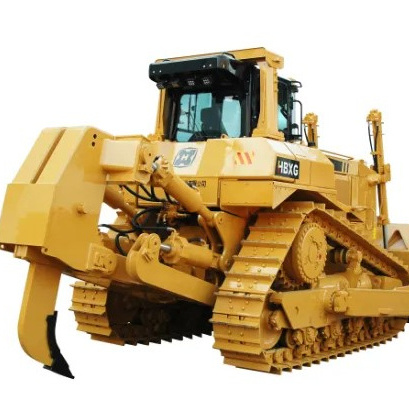

High quality Hbxg 320Hp Crawler Bulldozer SD8 With Iso Ce One Year After-Sales Service
Contact Way
Product Overview
Integrate with modulardesign is easy to repair & maintenance, It relieves oil with difference pressure,the hydraulic system
performs protecting environment and save energy withhigh working efficiency. Safety comfortable operation condition, electric monitoring and ROPS cabin with reliable entire quality, excellent service is your wise choosing.It can be equipped with straight tilting blade, angle blade, coal pushing blade,U shape blade; single shank ripper, three shanks ripper; ROPS, FOPS, forest defense cabin etc.. It is can ideal machine used in communication, oil field, power, mining etc. large earth moving program.
performs protecting environment and save energy withhigh working efficiency. Safety comfortable operation condition, electric monitoring and ROPS cabin with reliable entire quality, excellent service is your wise choosing.It can be equipped with straight tilting blade, angle blade, coal pushing blade,U shape blade; single shank ripper, three shanks ripper; ROPS, FOPS, forest defense cabin etc.. It is can ideal machine used in communication, oil field, power, mining etc. large earth moving program.
Product Paramenters
|
Model
|
|
SD8N
|
|
specifications
|
|
|
|
Dozer
|
|
Tilt
|
|
Operating weight(including ripper)
|
kg
|
37300
|
|
Ground pressure
|
kpa
|
94
|
|
Track gauge
|
mm
|
2083
|
|
Gradient
|
°
|
30/25
|
|
Min. ground clearance
|
mm
|
556
|
|
Dozer capacity
|
m3
|
11.24
|
|
Blade width
|
mm
|
3940
|
|
Max. digging depth
|
mm
|
582
|
|
Overall dimensions(including ripper)
|
mm
|
7930*3940*3549
|
|
Engine
|
|
|
|
Type
|
|
top brand NT855-C360S10
|
|
Rated revelation
|
rpm
|
2100
|
|
Engine power
|
kw
|
257
|
|
Torque storage coefficient
|
%
|
20
|
|
Undercarriage system
|
|
|
|
Type
|
|
The track is triangle shape.The sprocket is elevated elastic suspended.
|
|
Number of track rollers(each side)
|
|
8
|
|
Pitch
|
mm
|
216
|
|
Width of shoe
|
mm
|
560
|
|
Gear
|
|
|
|
Forward I/II/III
|
km/h
|
3.5/6.2/10.8
|
|
Backward I/II/III
|
km/h
|
4.7/8.1/13.9
|
|
Implement hydraulic system
|
|
|
|
Max. system pressure
|
Mpa
|
20
|
|
Pump type
|
|
Gears oil pump
|
|
System output
|
L/min
|
220
|
