Quick Details
-
Voltage:
-
380v
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
2800*1800*1950mm
-
Weight:
-
1500 kg
-
After-sales Service Provided:
-
No after-sales service
-
Name:
-
Paper Tube Making Machine
Quick Details
-
Production Capacity:
-
3-20m/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZFTOPA
-
Voltage:
-
380v
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
2800*1800*1950mm
-
Weight:
-
1500 kg
-
After-sales Service Provided:
-
No after-sales service
-
Name:
-
Paper Tube Making Machine

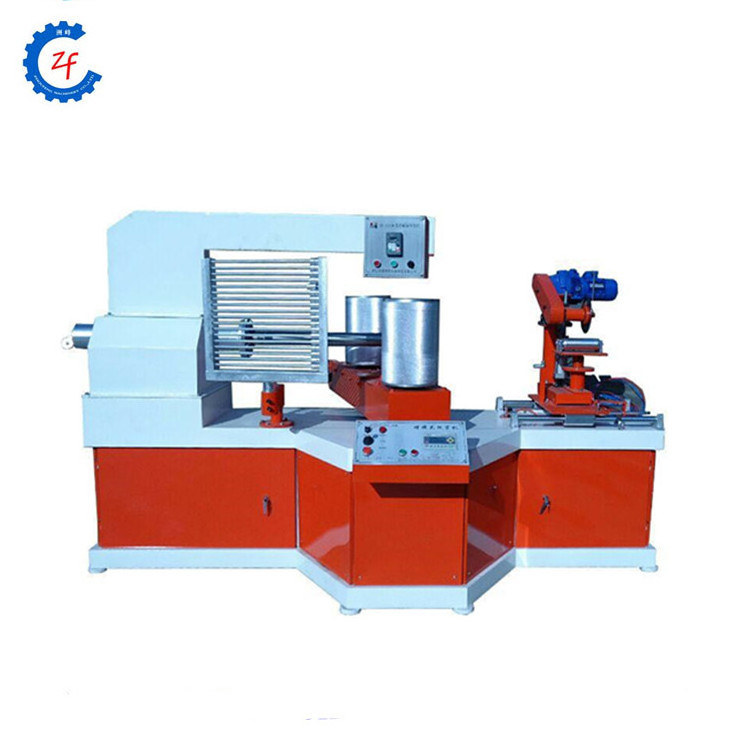

High speed paper tube making machine
Products Description
The design concept is simple, compact and stable.
Production use reference: all kinds of household paper tubes, packaging paper tubes, various small paper core tubes.
Production use reference: all kinds of household paper tubes, packaging paper tubes, various small paper core tubes.
Machine features
1. The main body adopts thick and heavy steel plate and is welded by CNC cutting. The frame is stable and not easy to deform, and the vibration is small.
2, the main drive uses hard tooth surface full oil bath chain drive, low noise, low heat, high speed, high torque.
3. The main motor adopts vector type high torque frequency converter to adjust the speed.
4, using PLC control system to improve cutting response speed, cutting length control is more accurate than ever.
5, configure a new type of operation panel and large-size color touch screen man-machine interface operation
2, the main drive uses hard tooth surface full oil bath chain drive, low noise, low heat, high speed, high torque.
3. The main motor adopts vector type high torque frequency converter to adjust the speed.
4, using PLC control system to improve cutting response speed, cutting length control is more accurate than ever.
5, configure a new type of operation panel and large-size color touch screen man-machine interface operation
Product Paramenters
|
Model
|
2150B
|
2150SF
|
4250B
|
4250SF
|
|
Paper layer
|
3-16layers
|
3-16layers
|
3-21layers
|
3-21layers
|
|
Max pipe diameter
|
150mm
|
120mm
|
250mm
|
250mm
|
|
Min pipe diameter
|
20mm
|
20mm
|
40mm
|
40mm
|
|
Max pipe thickness
|
8mm
|
8mm
|
20mm
|
20mm
|
|
Mini pipe thickness
|
1mm
|
0.5mm
|
1mm
|
1mm
|
|
Capacity
|
3-20m/min
|
3-30m/min
|
3-20m/min
|
3-30m/min
|
|
Main power
|
5.5kw-380v 50hz
|
7.5kw-380v 50hz
|
11kw-380v 50hz
|
15kw-380v 50hz
|
|
Main machine size
|
2800*1800*1950mm
|
4000*2000*1950mm
|
4000*2000*1950mm
|
4200*2000*1950mm
|
|
Weight
|
1500kg
|
3200kg
|
4200kg
|
4200kg
|
