Quick Details
-
Brand Name:
-
MGREENBELT
-
Voltage:
-
3PH~220V/380/415V~50HZ/60HZ
-
Dimension(L*W*H):
-
4400*2200*2400mm
-
Weight:
-
3800kg
-
Warranty:
-
14 Months
-
Power:
-
105000
-
Working Temperature Range:
-
-10C~30C
-
Compressor:
-
Screw type
-
Condenser style:
-
high efficiency V type Finned Copper tube
-
Evaporator style:
-
Shell and tube
-
Chilled temperature:
-
5-35 degree C
-
Refrigerant available:
-
R22,R407C,R410A,R134A
-
Control of refrigerant:
-
Expansion valve
-
Dry filter:
-
Emerson/Danfoss
-
Electric contactor:
-
Schneider or LG
-
Temperature controller:
-
PLC or Microcomputer
-
Compressor Brand:
-
Hanbell or Bitzer
Quick Details
-
Core Components:
-
compressor
-
Condition:
-
Hot and New
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MGREENBELT
-
Voltage:
-
3PH~220V/380/415V~50HZ/60HZ
-
Dimension(L*W*H):
-
4400*2200*2400mm
-
Weight:
-
3800kg
-
Warranty:
-
14 Months
-
Power:
-
105000
-
Working Temperature Range:
-
-10C~30C
-
Compressor:
-
Screw type
-
Condenser style:
-
high efficiency V type Finned Copper tube
-
Evaporator style:
-
Shell and tube
-
Chilled temperature:
-
5-35 degree C
-
Refrigerant available:
-
R22,R407C,R410A,R134A
-
Control of refrigerant:
-
Expansion valve
-
Dry filter:
-
Emerson/Danfoss
-
Electric contactor:
-
Schneider or LG
-
Temperature controller:
-
PLC or Microcomputer
-
Compressor Brand:
-
Hanbell or Bitzer

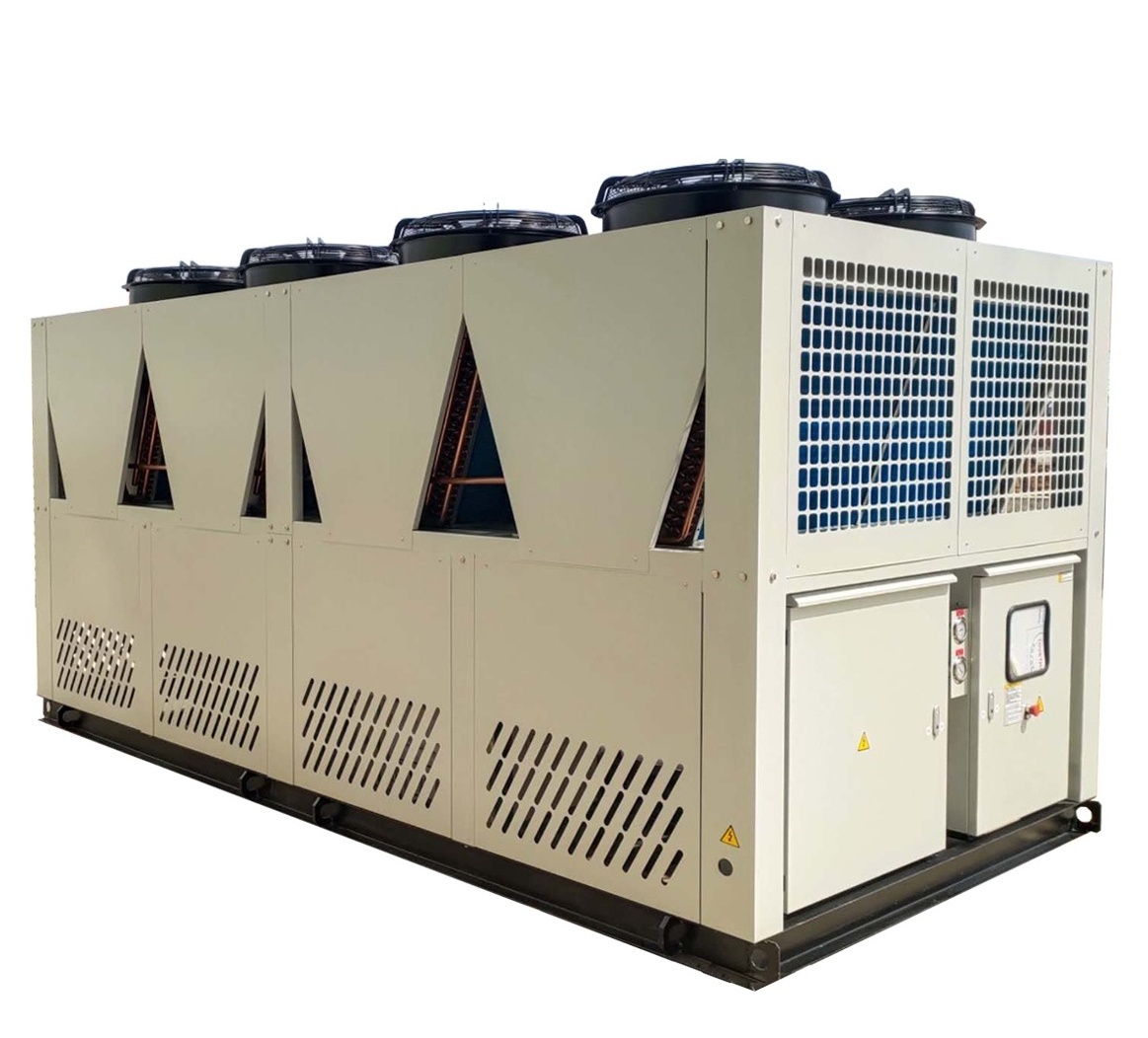

250kw Concrete Batching Plant Cooling System Screw Air Cooled Water Chiller
Welcome to visit our products,plese kindly contact me if you have any confusing. Your any advice will be highly appreciated.
----.Applicaton industry
Please contact us if your application is one of the following markets:
|
Plastics & Rubber
Presses Injection Molding Extrusion Sheet & Profile Blow Molding Thermoforming PET |
Machinery Electrical Supply Material Handling Laminating Printing HVAC Power Generation OEM Construction Paper Products Label Textile Air compressor cooling |
Metal forming
Resistance Welding Machinery Welding Rolling Mills Presses Machine Tools Extruders Profiling & Polishing Plating |
----.Features
-Bitzer/Germany or Hanbell/Taiwan screw compressor available,4 grade capacity control, 25%-50%-75%-100%.
-Refrigerant optional R22,R407c,R134a,R410a
-Outlet chilled temperature is 5-35 degree
-Multi protection device designed to ensure the stable safety of the operator and prolong the life.
-Four stage energy control screw compressor, Y-delta start mode to decrease the impulse on power network, and different stages to save power.
-Water temperature range 5ºC to 35ºC.
-Shell and tube evaporator, high efficiency and cleanable(plat type available on request).
-Copper tube Aluminum fins type condenser with adequate heat exchanging surface.
-Refrigeration solenoid valve, to protect compressor when stop.
-Refrigerant sight glass, to further monitor the refrigerant status in the system, so to check the unit running status.
-Siemens PLC control, overall monitoring of unit running status.
-Axial fan motor, with independent motor support bracket.
-Multi-protection devices to make sure the chiller and the equipment running safety.
-Schneider electrical components.
-Danfoss/Emerson thermal components.
----.Technical specification List
| Model | MG-30C | MG-40C | MG-50C | MG-60C | MG-80C | MG-100C | MG-120C | MG-150C | MG-180C | |
| Cooling capacity | USRT | 22.2 | 31 | 40.4 | 43.2 | 58.3 | 72.5 | 87.6 | 114.9 | 133.6 |
| Kcal/h | 67080 | 93740 | 122120 | 130720 | 176300 | 219300 | 264880 | 347440 | 404200 | |
| KW | 78 | 109 | 142 | 152 | 205 | 255 | 308 | 404 | 470 | |
| Power supply | 3PH-380V-50Hz or 3Phase,220V/440V 60hz | |||||||||
| Refrigerant | Type | R22 | ||||||||
| Controler | Thermostatic expansion valve | |||||||||
| Compressor | Type | Semi-hermetic screw | ||||||||
| Power(kw) | 28 | 38 | 47 | 52 | 68 | 83 | 97 | 124 | 146 | |
| Start | Y-delta | |||||||||
| Capacity control | 25%-50%-75%-100% | |||||||||
| Evaporator | Type | Shell and tube | ||||||||
| Water flow(m³/h) | 13 | 19 | 24 | 26 | 35 | 44 | 53 | 69 | 81 | |
| Dia.of inlet/outlet(inch) | DN65 | DN65 | DN80 | DN80 | DN80 | DN80 | DN80 | DN100 | DN100 | |
| Condenser | Type | Inner screw copper tube aluminum plate fins | ||||||||
| Air cooling flow(m³/h) | 27000 | 40000 | 50000 | 60000 | 80000 | 100000 | 120000 | 150000 | 180000 | |
| Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | |||||||||
| Dimension | L | 2350 | 3200 | 3200 | 3300 | 3300 | 4400 | 3850 | 4750 | 5850 |
| W | 1450 | 1450 | 1450 | 2300 | 2300 | 2300 | 2200 | 2200 | 2200 | |
| H | 2150 | 2150 | 2150 | 2400 | 2400 | 2400 | 2350 | 2450 | 2450 | |
| Weight(kg) | 1800 | 1900 | 2300 | 2480 | 3200 | 3800 | 3300 | 4000 | 5000 | |
----. Production photos
----.Normally,wooden case employed for the chillers,if you have any special demands regardiing package,please let me know.
----.Before choosing the model,you nee to confirm the information below,so as to buy the accurate products that you need.
Q1: How to choose the right chiller?
A1:
1).Power supply voltage : PH/ V/ HZ?
2).Refrigerant type R22(Freon ) or CFC free one R407C?
3).What is the cooling capacity requests , KW?
4). What is the outlet water temperature and return water temperature to chiller?
5). Do you have the requests for the water flow rate , water pressure and water quality?
6). For what kind of equipment or cooling system( Close loop or open loop ) in your side?
7). What is the maximum ambient working temperature in your factory?
Q2: What power supply chiller you can produce?
A2: Our standard power supply is 3phase-380V-50Hz, Customzied different for optaions, like 3phase- 415V,440V,460V,480V,- 50Hz or 60Hz
Q3:What is your Payment terms?
A3:Standard is 50% in advance to production, the balance before shippment, this mainly depends on the order.
Q4:What refrigerant you can supply?
A4: We have R22, Eeo friendly R407c, R410a, R134a,R404a depends on your choice.
Q5:This model and type chiller is not what I need, what should I do?
A5:Please tell us the Q1, or your further requirements, then the solution will be sent to your email with prompt.
