Quick Details
-
Brand Name:
-
Fols
-
Product name:
-

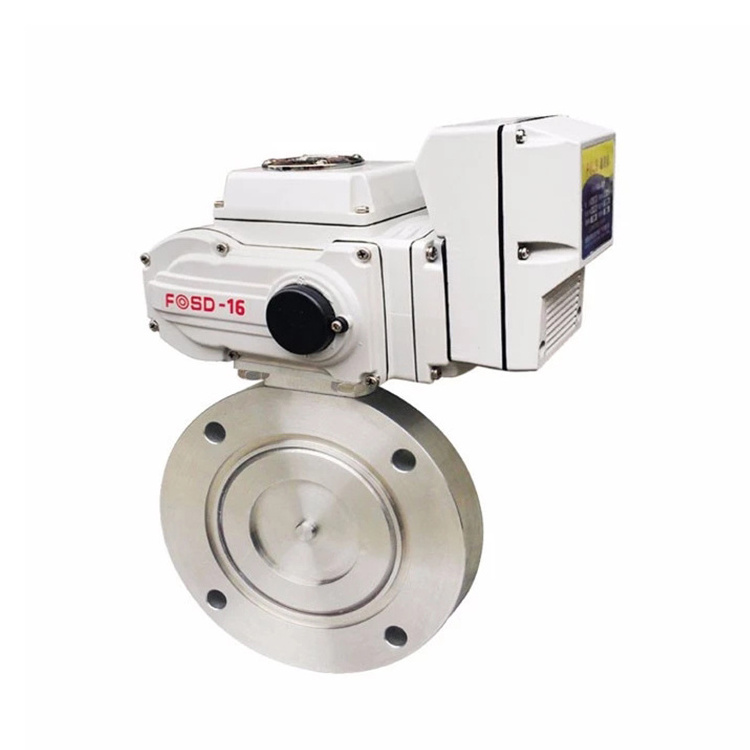

Electric vacuum butterfly valve
-
Size range:
-
DN32~DN150
-
Valve plate:
-
Clamp on
-
Butterfly plate:
-
Centerline type
-
Valve Body,valve disc:
-
Q235-A, F-steel plate, Stainless steel
-
Valve stem,Seat seal:
-
2Cr13,1Cr18Ni9Ti
-
Stem material:
-
Short structural steel plate
-
Medium:
-
Water Oil Liquid Powder Steam
-
Control mode:
-
On Off Type / Modulating Type
-
Standard or Nonstandard:
-
Standard Butterfly Valve
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
FLGID
-
Brand Name:
-
Fols
-
Product name:
-
Electric vacuum butterfly valve
-
Size range:
-
DN32~DN150
-
Valve plate:
-
Clamp on
-
Butterfly plate:
-
Centerline type
-
Valve Body,valve disc:
-
Q235-A, F-steel plate, Stainless steel
-
Valve stem,Seat seal:
-
2Cr13,1Cr18Ni9Ti
-
Stem material:
-
Short structural steel plate
-
Medium:
-
Water Oil Liquid Powder Steam
-
Control mode:
-
On Off Type / Modulating Type
-
Standard or Nonstandard:
-
Standard Butterfly Valve
Product Description
|
Size Range
|
DN32~DN150
|
|
Valve Body
|
Q235-A
F-steel plate
Stainless steel
|
|
valve Disc
|
EPDM, PTFE
|
|
Valve Stem
|
1Cr18Ni9Ti
|
|
Seat Seal
|
304
|
|
Disc Sealing Ring
|
EPDM rubber
Fluorous rubber
|
|
Temperature
|
≤100°C
|
|
Control Mode
|
On Off Type / Modulating Type
|
|
Applicable Medium
|
Vacuum, water, vapor, gas, dust
|
Specification
The electric vacuum butterfly as the regulating or cutting device used in ventilation or environmental project of chemical,
building and electrical, is manufactured by center line design with short copper welding structure. It is compact structure, light weight, easy install, low flow resistance, large flow, high temperature resistance, easy operation, free connection rod inside, free bolt, and it is reliability and long service, can be installed in any angle, without direction of medium affected.
building and electrical, is manufactured by center line design with short copper welding structure. It is compact structure, light weight, easy install, low flow resistance, large flow, high temperature resistance, easy operation, free connection rod inside, free bolt, and it is reliability and long service, can be installed in any angle, without direction of medium affected.
Electric actuator ( Optional)
|
Type
|
Control Type
|
Function
|
|
(optional) |
ON-OFF type
|
Feedback: the active signal, passive contact signal, resistance,
4-20mA
|
|
|
Regulation type
|
Input and output signal: 4-20mA, 0-10v, 1-5v, switch, MODBUS, PROFIBUS field bus
|
|
|
Filed operation
|
The field, remote control switch regulation and MODBUS, PROFIBUS field bus
|
