1. Grinding room
2. Main motor
3. Wind-sending pipeline
4. Hopper
5. Shaking feeder
6. Rotundity vibrating sieve
7. Cyclone wind butterfly valve
8. Cyclone separater
9. Blower
10. Electrical control cabinet
11. Dust collector.
- Product Details
- {{item.text}}
Quick Details
-
Production Capacity (kg/h):
-
100 - 800 kg/h
-
Brand Name:
-
Kingstar
-
Voltage:
-
220v/380v/460v or customized
-
Dimension(L*W*H):
-
2000*1500*3000mm
-
Power (kW):
-
45
-
Weight (T):
-
1
-
Function:
-
Plastic Cutter Grinder Crusher Shredder pulverizing Machine
-
Inverter brand:
-
ABB
-
Electrical device brand:
-
Schneider
-
Machine color:
-
customized
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Processing material:
-
PVC, PE, PP, PET, ABS, PC, EVA
Quick Details
-
Max.Production Capacity (kg/h):
-
800
-
Place of Origin:
-
Jiangsu, China
-
Machine Type:
-
plastic pulverizer
-
Production Capacity (kg/h):
-
100 - 800 kg/h
-
Brand Name:
-
Kingstar
-
Voltage:
-
220v/380v/460v or customized
-
Dimension(L*W*H):
-
2000*1500*3000mm
-
Power (kW):
-
45
-
Weight (T):
-
1
-
Function:
-
Plastic Cutter Grinder Crusher Shredder pulverizing Machine
-
Inverter brand:
-
ABB
-
Electrical device brand:
-
Schneider
-
Machine color:
-
customized
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Processing material:
-
PVC, PE, PP, PET, ABS, PC, EVA
Plastic PVC Powder Pulverizer Machine
Suitable Products
Product Description
The disc grinding pulverizer machine of the SMF series are available with disc diameter from 300 to 800 mm. These plastic pulverizer machines are high speed, precision grinders for the processing of medium hard, impact resistant and friable materials.
The material to be pulverized is introduced through the centre of a vertically fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system. Depending on the application the machines can be equipped with one piece grinding discs or grinding segments.
The plastic pulverizer machine is mainly composed of electric motor, disc type blade, feeding fan, vibrating sieve, dust removing system, etc.
According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net,metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc
The material to be pulverized is introduced through the centre of a vertically fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system. Depending on the application the machines can be equipped with one piece grinding discs or grinding segments.
The plastic pulverizer machine is mainly composed of electric motor, disc type blade, feeding fan, vibrating sieve, dust removing system, etc.
According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net,metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc
Specification
|
Model
|
Rotate blades
|
Fixed blades
|
Motor power
|
Output
(kg/h) |
|
SMF400
|
18
|
10
|
30
|
250-300
|
|
SMF500
|
24
|
12
|
45
|
400-500
|
|
SMF600
|
28
|
15
|
55
|
500-600
|
|
SMF800
|
40
|
20
|
75
|
700-800
|
Machine Details

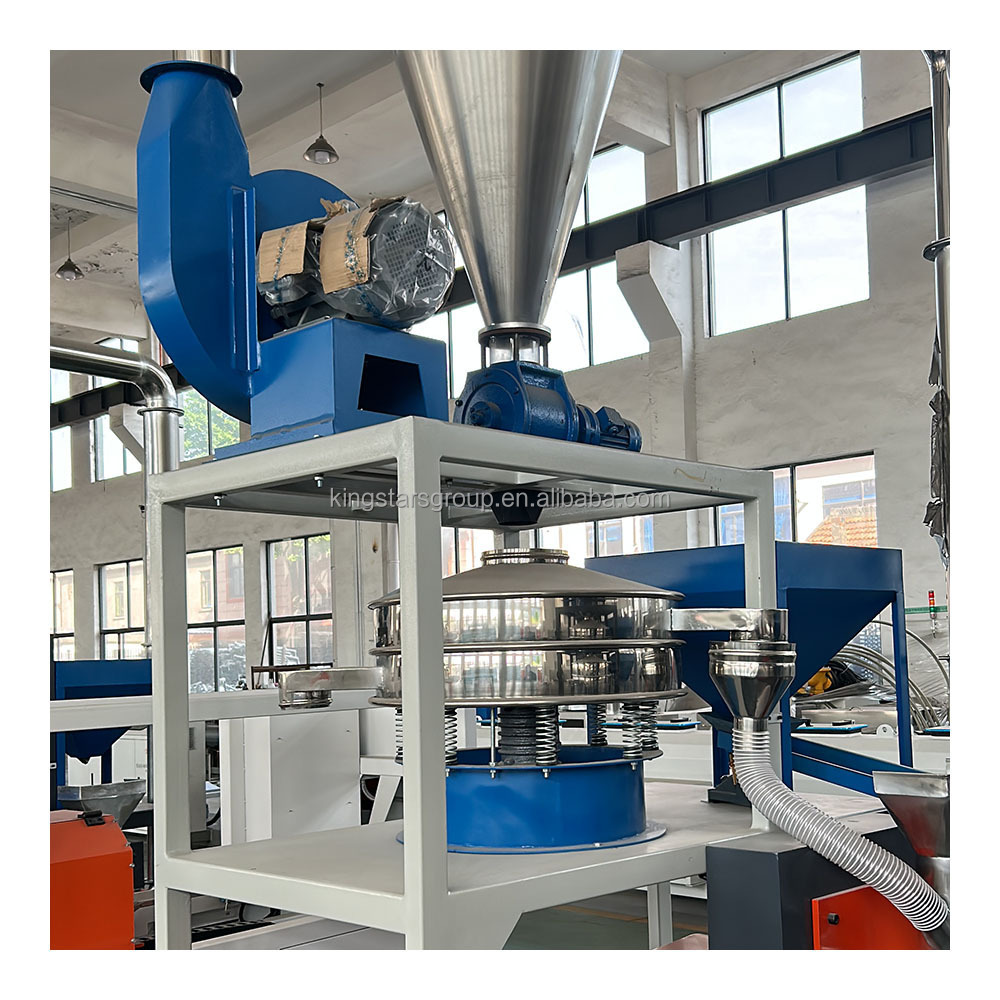

Plastic PVC pulverizer machine
components:
1. Grinding room
2. Main motor
3. Wind-sending pipeline
4. Hopper
5. Shaking feeder
6. Rotundity vibrating sieve
7. Cyclone wind butterfly valve
8. Cyclone separater
9. Blower
10. Electrical control cabinet
11. Dust collector.
1. Grinding room
2. Main motor
3. Wind-sending pipeline
4. Hopper
5. Shaking feeder
6. Rotundity vibrating sieve
7. Cyclone wind butterfly valve
8. Cyclone separater
9. Blower
10. Electrical control cabinet
11. Dust collector.
Vacuum feeder system
The vacuum feeder system can load pvc powder automatically and can prevent pvc powder fly everywhere.It can also keep customer's factory clean.
Auto Spay system
This kind of design is especially for pvc pulverizer machine,we add one electromagnetic valve on it.The water will spay automatically when reach setting temperature.(Customers can set temperature and spay time themselves)
Auto Spay system
This design will have one temperature controller on cabinet.
High level Impulse Dust collector
The High level impulse dust collector is very popular with customers.It can remove pvc powder high efficiently.
Discs Blades
The discs blades material is SKD-11,is very high quality blades.
Magnetic Net
This magnetic net can prevent steel falling into pulverizer machine inside,it can remove metal impurity in case machine damagement.
Vibrator Sieve
This vibrator sieve can separate unqualified pvc powder from the material and then milling again so that customers can get high quality pvc powder.
Cabinet
Use to control machine with integrated locked with each other controlled by PLC.PLC brand: SIEMENS.We also add one temperature controller on cabinet to control water spay.
Final Product
Related Product
Usually buyers will buy related machines with pvc milling machine.Because they will need make further treatment after milling.
