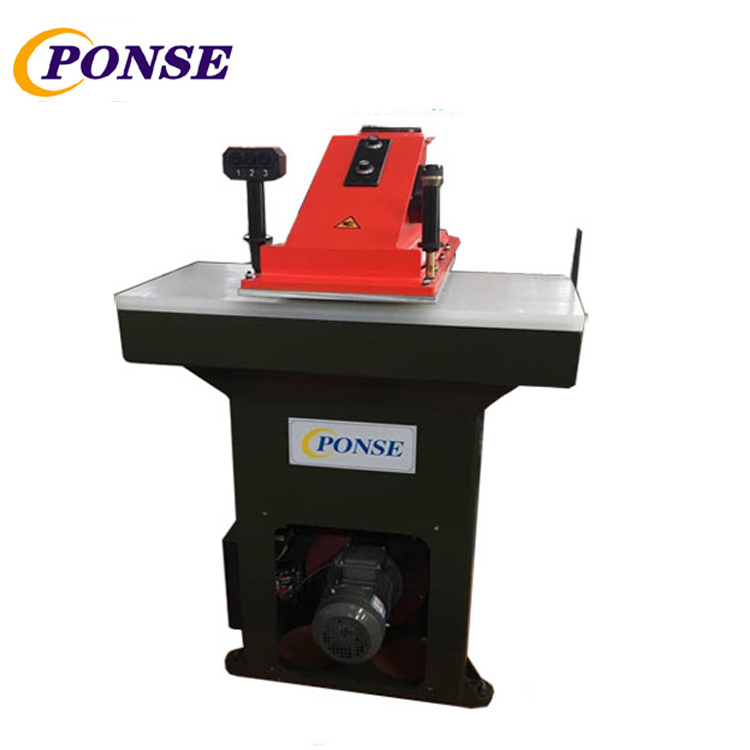

Quick Details
-
Brand Name:
-
Ponse
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Customizable
-
Driven type:
-
Hydraulic
-
Cutting Area:
-
650*330mm
-
Stroke Adjustment:
-
5-50mm
-
Tension distance:
-
50-120mm
-
Arm Width:
-
320*280mm
-
Motor Power:
-
0.75kw
-
Overall Dimensions:
-
650*760*1500mm
Quick Details
-
Weight (KG):
-
700
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Ponse
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Customizable
-
Driven type:
-
Hydraulic
-
Cutting Area:
-
650*330mm
-
Stroke Adjustment:
-
5-50mm
-
Tension distance:
-
50-120mm
-
Arm Width:
-
320*280mm
-
Motor Power:
-
0.75kw
-
Overall Dimensions:
-
650*760*1500mm
Product Description
Application
2.It is equipped with automatic lubricating system to reduce wear and tear and prolong the service life.
3.Using the electronic delay circuit to control the line of stroke position, high precision, improving the quality of shoes, using wheel to monitor the height between swing arm and the working table. The adjustment is simple, reliable, convenient.
Size Information
|
Model number
|
GSB-S22
|
GSB-S27
|
GSB-S27K
|
GSB-S27L
|
|||
|
Max cutting force
|
22T
|
27T
|
27T
|
27T
|
|||
|
Dimension of working table
|
900*430mm
|
1000*500mm
|
1000*500mm
|
1000*500mm
|
|||
|
arm width
|
370mm
|
400mm
|
500mm
|
610mm
|
|||
|
cutting stroke
|
5-75mm
|
90mm
|
90mm
|
90mm
|
|||
|
Motor power
|
1.1KW
|
1.5KW
|
1.5KW
|
1.5kw
|
|||
|
Available vpltage
|
3*440/415/400/380/220/200V,50/60Hz,Single phase 240/220V,50/60Hz
|
|
|
|
|||
|
packing dimension
|
1150*1200*1500mm
|
1150*1200*1500mm
|
1150*1200*1500mm
|
1150*1200*1500mm
|
|||
|
net weight
|
650kg
|
960kg
|
1050kg
|
1200kg
|
|||
|
gross weight
|
900kg
|
1120kg
|
1210kg
|
1360kg
|
|||
Related Products
Packing&Shipping
Company Introduction
FAQ
1. Established time?
Ponse was established for 20 years, specialized in laminating machine, cutting machine and embossing machine.
2. Warranty period?
One year.
3. How to choose right laminating machine?
Please let us know as below:
1 which material to laminate
2 what is final usage
3 what is max width for your material roll
4. Installing and operating?
Our Professional people will go for installing and offer the technical guidance as requests.
5. How many staff for operating of the machine?
3 to 4 workers
6. Voltage requirements?
According to different voltages in various countries, to be customized.
7. Payment Terms?
FOB, CIF, CNF or Ex-work; payment way: T/T or L/C.
8.Delivery method?
Shipping by sea. Shanghai Port to destination country.
