Quick Details
-
Cable Type:
-
Riser Cable
-
Fiber count:
-
36 core /72 core
-
Jacket Material::
-
LSZH
-
Jacket color::
-
White
-
Certification:
-
CE/ROHS/ISO9001
-
Max.allowable tension (Short-term):
-
600N
-
Max. allowable tension (Long-term):
-
200N
Quick Details
-
Brand Name:
-
Wirenet
-
Model Number:
-
Mini riser fiber optic cable
-
Place of Origin:
-
Guangdong, China
-
Cable Type:
-
Riser Cable
-
Fiber count:
-
36 core /72 core
-
Jacket Material::
-
LSZH
-
Jacket color::
-
White
-
Certification:
-
CE/ROHS/ISO9001
-
Max.allowable tension (Short-term):
-
600N
-
Max. allowable tension (Long-term):
-
200N

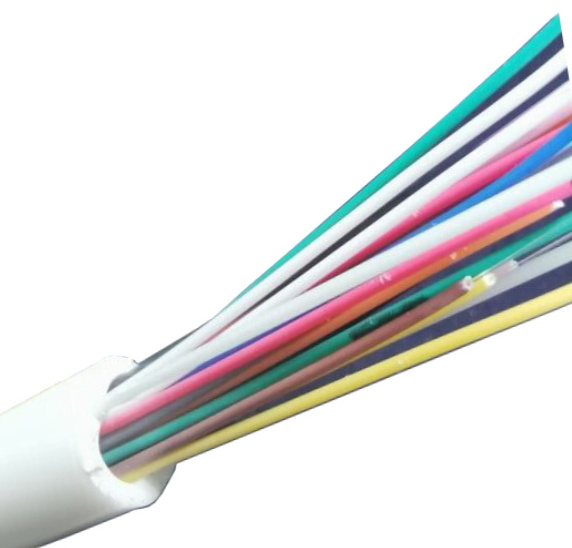

12 core Mini riser fiber optic cable manufacturer for ftth box installation
Designed specifically for bringing optical fibre directly to residents of high and low rise apartments and offices, allowing remarkably easy fibre access and break-out, reducing the demand for skilled labour and installation time and cost; providing a fast and flexible means of connecting users in a Multi Dwelling Unit (MDU).
The system comprises a main riser cable of up to 144 fibres, which can be easily accessed as needed and either branched directly to individual subscribers on different floors of the MDU without the need for the splicing of fibre within the riser of the building, or alternatively spliced at the riser to a drop cable that runs to the premise.
Fibres are extracted from breakout windows cut into the main cable which allows the required length of protected ‘easy strip’ fibre to be routed directly from the riser break out point through to the end user, or spliced to a drop cable that is then run to the customers premise.
The system comprises a main riser cable of up to 144 fibres, which can be easily accessed as needed and either branched directly to individual subscribers on different floors of the MDU without the need for the splicing of fibre within the riser of the building, or alternatively spliced at the riser to a drop cable that runs to the premise.
Fibres are extracted from breakout windows cut into the main cable which allows the required length of protected ‘easy strip’ fibre to be routed directly from the riser break out point through to the end user, or spliced to a drop cable that is then run to the customers premise.
Features
1, Non-mental design can prevent the cable from radio interference and magnetic wave interference
2, Specially designed compact structure is good at preventing loose tubes from shrinking
3, Loose tube filling compound ensure good moisture resistance performance
4, Good flexibility
5, High dense fiber packed,small diameter and light weight; it`s the better option for blowing installation progress.
2, Specially designed compact structure is good at preventing loose tubes from shrinking
3, Loose tube filling compound ensure good moisture resistance performance
4, Good flexibility
5, High dense fiber packed,small diameter and light weight; it`s the better option for blowing installation progress.
Application
Adopted to backbone net work,access network and fiber to the home
Adopted to backbone net work,access network and fiber to the home
|
No. of cable
|
|
|
36
|
72
|
|
|
|||||
|
Fiber Model
|
|
|
G.657A2
|
|
|
|
|||||
|
Module
|
Material
|
|
LSZH
|
|
|
|
|||||
|
|
Thickness
|
|
0.17（±0.02）mm
|
|
|
|
|||||
|
|
Diameter
|
|
0.9（±0.05）mm
|
|
|
|
|||||
|
Strength Member
|
Material
|
|
FRP
|
|
|
|
|||||
|
|
Diameter
|
|
1.0（±0.05）mm
|
|
|
|
|||||
|
|
No.
|
|
2
|
|
|
|
|||||
|
Outer Sheath
|
Material
|
|
LSZH-FR
|
|
|
|
|||||
|
|
Color
|
|
White
|
|
|
|
|||||
|
Cable Diameter
|
|
|
10.5±0.5
|
|
|
11.5±0.5
|
|||||
|
Max. allowable tension
（Short-term） |
|
|
600N
|
|
|
|
|||||
|
Max. allowable tension
（Long-term） |
|
|
200N
|
|
|
|
|||||
|
Crush resistance test
|
|
|
1000N/10cm
|
|
|
|
|||||
|
Min. bending radius
|
|
Static
|
105mm
|
|
115mm
|
|
|||||
|
|
|
dynamic
|
210mm
|
|
230mm
|
|
|||||
|
Temperature range
（℃） |
|
Installation
|
-5~+60
|
|
|
|
|||||
|
|
|
Transport&Storage
|
-40~+70
|
|
|
|
|||||
|
|
|
Operation
|
-5~+60
|
|
|
|
|||||
