Excellent waterproof roofing sheet
◪ Excellent anti-load Capacity and impact resistance
◪ Good Sound Insulation
◪ Super Corrosion Resistance
◪ Excellent Self-cleaning
◪ Strong electrical insulation and Fire retarding ≥ B1 level
◪ Good low temperature performance
◪ Environmental Friendly
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Southwestern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Gongli
-
Model Number:
-
1005
-
Shape:
-
trapezoid
-
Color:
-
blue , green, white,gray or customized
-
Production capacity:
-
65000 tons /years
-
Width:
-
1080mm
-
Practicality Width:
-
1005mm
-
Thickness:
-
2mm~3.0mm
-
Length:
-
5.8m or customized
-
Certificate:
-
ISO CE
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Return and Replacement, instalation guide
-
Project Solution Capability:
-
graphic design, total solution for projects
-
Application:
-
Hotel
-
Design Style:
-
Southwestern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Gongli
-
Model Number:
-
1005
-
Shape:
-
trapezoid
-
Color:
-
blue , green, white,gray or customized
-
Production capacity:
-
65000 tons /years
-
Width:
-
1080mm
-
Practicality Width:
-
1005mm
-
Thickness:
-
2mm~3.0mm
-
Length:
-
5.8m or customized
-
Certificate:
-
ISO CE
Product Description
1.
40000
Sq meters Factory Area ,more than 200 worker
2.
16
production line ,
2
are under construction
3. Own professional R&D team
4. Production Capacity : 80000tons /year
5. Competitive price
6. SGS/ISO9001/ISO14001/OHSAS18001

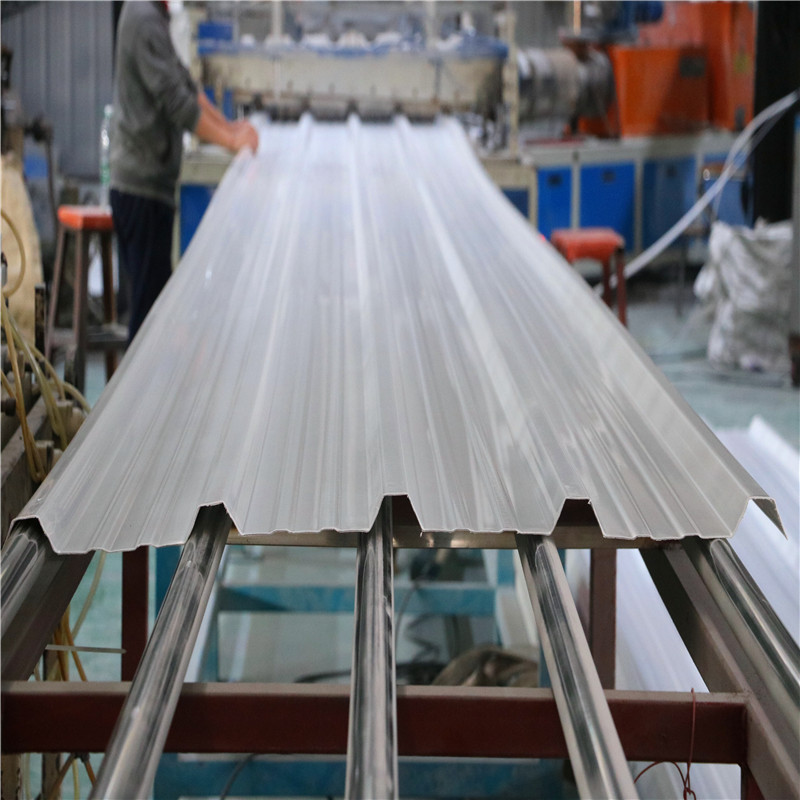

40mm Wave Height UPVC Roofing Sheet
UPVC High-Wave Trapezoid roof tile is a new branch product which customized basic on the market demand. With excellent waterproof performance ,faster water flow speed and Better heat insulation.
Application:
Widely used for roofing and wall of large-span portal steel structure, corrosive chemical plant, factory, warehouse, high temperature workshop etc.
40mm Wave Height UPVC Roofing Sheet
Product application:
factory , poultry farm, plant, warehouse, agricultural market, car shed and other construction areas.
Thickness
:
1.5-3mm
Life time
:
above 25-30 years
Warranty
:
15 years
|
Type
|
UPVC High-Wave Trapezoid roof tile
|
|
|
||
|
Color
|
Blue, Green, White , Gray or Customized
|
|
|
||
|
Total width
|
1080mm
|
|
|
||
|
Useful width
|
1005mm
|
|
|
||
|
Length
|
Customized (Must be fit for the container)
|
|
|
||
|
Thickness
|
2.0mm
|
2.3mm
|
2.5mm
|
||
|
Weight(kg/sq meter)
|
3.9kg
|
4.485kg
|
4.875kg
|
||
|
Wave Distance
|
250mm
|
|
|
||
|
Wave height
|
40mm
|
|
|
||
|
Container Loading Capacity
|
Thickness(mm)
|
SQ.M/20 FCL (26Ton)
|
SQ.M/40 FCL (27Ton)
|
||
|
|
2.0mm
|
6600
|
6900
|
||
|
|
2.3mm
|
5700
|
6000
|
||
|
|
2.5mm
|
5300
|
5500
|
||
