Quick Details
-
Input:
-
1CH HD MI,1CH VGA
-
Output:
-
1CH HD MI,1CH VGA
-
Video Storage:
-
Support MP4 format video storage, support loop video
-
Protocol:
-
Support SRT, RTSP, RTMP, HTTP, HLS, UDP/Multicast, On vif, etc.
-
USB Interface:
-
2 Channel USB Interface
-
Serial Interface:
-
1 Channel RS232 Serial data communication interface
-
MOQ:
-
1
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Dibviewolo
-
Model Number:
-
OTV-HVE2
-
Input:
-
1CH HD MI,1CH VGA
-
Output:
-
1CH HD MI,1CH VGA
-
Video Storage:
-
Support MP4 format video storage, support loop video
-
Protocol:
-
Support SRT, RTSP, RTMP, HTTP, HLS, UDP/Multicast, On vif, etc.
-
USB Interface:
-
2 Channel USB Interface
-
Serial Interface:
-
1 Channel RS232 Serial data communication interface
-
MOQ:
-
1
Products Description
Overview

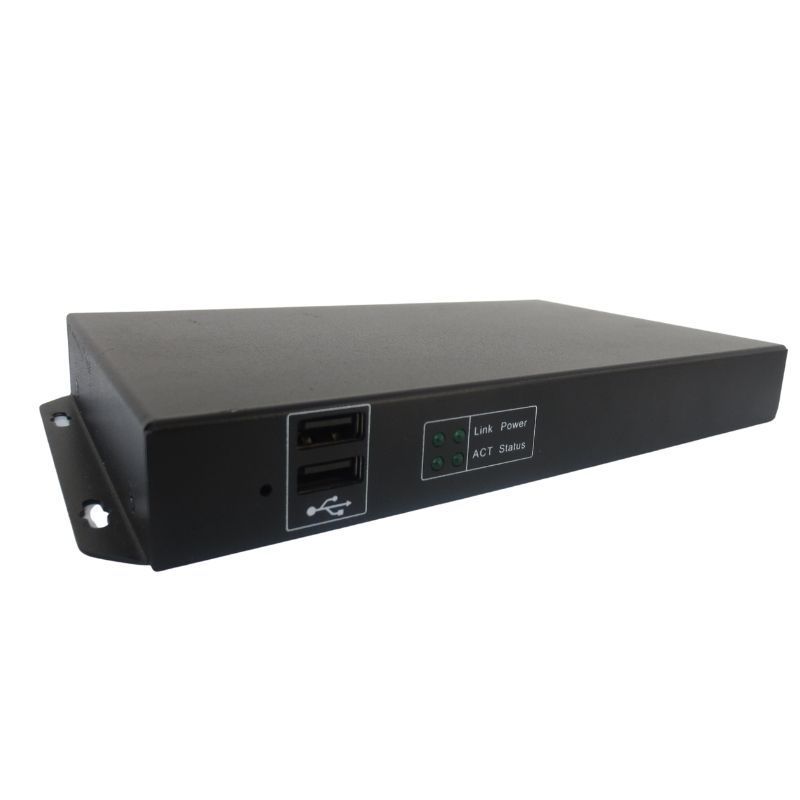

OTV-HVE2 Broadcast Level H.265/H.264 HD MI VGA Encoder Decoder is DIBVIEW Newest Professional HD audio and video encoding decoding device with powerful functionality, which is equipped with 1 channel HD MI and VGA input, 1-Channel HD MI and VGA Output, multi-screen multiprotocol series IP Encoder are designed to demand the increasing needs for video delivery to Internet and mobile devices.
OTV-HVE2 Broadcast Level H.265/H.264 HD MI VGA Encoder Decoder supports audio and video collection by 1-Channel HD MI and VGA input, and One-Channel HD MI and VGA output.
Independent encoding and decoding, IP stream supports kinds of main protocols output (SRT, HLS, RTMP, HTTP, RTSP, UDP), this enable Encoder to deliver H.264/H.265 IP streams by independent IP output to various servers for IPTV & OTT application. Such as Facebook Server, YouTube Server, Ustream Server, Adobe Flash Server, Wowza Media Server, and some other servers based on HLS/UDP/RTSP/RTMP/HTTP/ON VIF protocols. Moreover, video output screen 1~5 split display, and support 4 Customized split modes for professional broadcast level IPTV & OTT system construction, hospitality Hotel IPTV application, Remote multi-window video conference, Remote education and Remote medical treatment and etc.
OTV-HVE2 Broadcast Level H.265/H.264 HD MI VGA Encoder Decoder support Bi-directional transparent transmission of serial data through the network, adding built-in Webserver, which can be managed and configured through a browser.
Main Features
* Codec Integrated Design, support Bi-directional transmission of audio and video
* Support 1-Channel VGA and HD MI inputs and 1-Channel VGA and HD MI output
* Independent encoding and decoding, it can support 1 channel 1080P@60fps, and the total performance is 4 channels of 1080P@30fps
* Support H.265/H.264 encoding and decoding, video and audio streams support standard TS, ES stream formats
* Video encoding and decoding delay is less than 200ms
* Support AAC-LC, HE-AAC, HE-AACv2 audio codec
* Support 1-Channel VGA and HD MI inputs and 1-Channel VGA and HD MI output
* Independent encoding and decoding, it can support 1 channel 1080P@60fps, and the total performance is 4 channels of 1080P@30fps
* Support H.265/H.264 encoding and decoding, video and audio streams support standard TS, ES stream formats
* Video encoding and decoding delay is less than 200ms
* Support AAC-LC, HE-AAC, HE-AACv2 audio codec
* Support SRT, RTSP, RTMP, HTTP, HLS, ON VIF, UDP/Multicast and other protocols
* Support video output screen 1~5 split display, and support 4 Customized split modes
* Built-in MSATA can be connected to solid-state hard disk, support MP4 format video storage, support loop video storage
* Support Bi-directional transparent transmission of serial data through the network
* Built-in Webserver, which can be managed and configured through a browser
* Support video output screen 1~5 split display, and support 4 Customized split modes
* Built-in MSATA can be connected to solid-state hard disk, support MP4 format video storage, support loop video storage
* Support Bi-directional transparent transmission of serial data through the network
* Built-in Webserver, which can be managed and configured through a browser
|
Specifications
|
|
|
|
|
||||
|
Item
|
Description
|
|
|
|
||||
|
Video Parameters
|
|
|
|
|
||||
|
Input Resolution:
1080P:1920*1080@60/50Hz; 1080i:1920*1080@60/50i; FWXGA:1366*768@60/50Hz; SXGA:1280*1024@60/50Hz; 720P:1280*720@60/50Hz; XGA:1024*768@60/50Hz; Output Resolution: 1080P:1920*1080@60/50Hz; 1080i:1920*1080@60/50i; FWXGA:1366*768@60/50Hz; SXGA:1280*1024@60/50Hz; 720P:1280*720@60/50Hz; XGA:1024*768@60/50Hz; |
|
|
|
|
||||
|
Codec Parameters
|
|
|
|
|
||||
|
Codec Type:H.265 Main Profile, H.264 Baseline/Main/High Profile.
Bit Rate Frame Rate: Support CBR/VBR, Support encoding bit rate frame rate adjustable 32Kbps-16Mbps, 1-30fps Video Coding Capability: Dual Stream: 1ch 1080P@60fps+1ch 720P@30fps Video Decoding Capability: Up to 4ch 1080P@30fps or 2ch 1080P@60fps Audio Encoding Decoding: AAC-LC, HE-AAC, HE-AACv2 |
|
|
|
|
||||
|
Function
|
|
|
|
|
||||
|
Screen Split: 1/2/3/4/5/PIP and 4 Customized Split Modes
Screen Display:Support the original ratio of the screen or cover the window display Audio and video transmission:Support SRT, RTSP, RTMP, HTTP, HLS, UDP/Multicast, Onvif, etc. Video Storage: Support MP4 format video storage, support loop video Data transparent transmission: Support Bi-directional transparent transmission of serial data through the network. Device Management: Built-in webserver, which can be managed and configured through a browser. Support network remote firmware upgrade Peripheral Interface Video Input: 1-Channel VGA and HD MI interface Video Output: 1-Channel VGA and HD MI interface Audio Port: 1 input, 1 output, 3.5mm interface (level: 2.0Vp-p, impedance: 1KΩ), supports HDMI embedded audio. Network Interface: 1*10M/100M/1000M adaptive network interface USB Interface: 2 Channel USB Interface Serial Interface: 1 Channel RS232 Serial data communication interface Local Storage: Built-in MSATA Interface, it can be inserted into MSATA interface solid state drive (optional) |
|
|
|
|
||||
|
Working Environment
|
|
|
|
|
||||
|
Power Supply: DC5.5/2.1 interface, DC12V/≤8W
Working Temperture: -10℃~+55℃/10%~90%RH Structure Size: 210*120*25 (mm) Net Weight/Gross Weight: 600g/950g |
|
|
|
|
||||
Key Diagram or Application
1. Medical surgery teaching system, Bi-directional video and voice interaction
2. Hospital ICU data monitoring system
3. Remote expert consultation system
4. Medical Instrument Remote Technical Support System
