- Product Details
- {{item.text}}
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Applicable Industries:
-
glue application, adhesive dispensing, gasket, encapsulating, PCB industry
-
Product name:
-
Automatic Glue dispensing Machine robots
-
glueing machine automatic:
-
auto glue dispenser robot
-
Working area:
-
380(X)*380(Y)*100(Z)
-
Desktop automatic dispensing machine:
-
glue dispenser robot
-
Weight:
-
45kg
-
Operating system:
-
LCD pannel/ Teach Pendant
-
Resolution:
-
0.01
-
Reaptabily:
-
±0.025mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
second
-
Weight (KG):
-
45
-
Marketing Type:
-
Hot Product 2024
-
Applicable Industries:
-
glue application, adhesive dispensing, gasket, encapsulating, PCB industry
-
Product name:
-
Automatic Glue dispensing Machine robots
-
glueing machine automatic:
-
auto glue dispenser robot
-
Working area:
-
380(X)*380(Y)*100(Z)
-
Desktop automatic dispensing machine:
-
glue dispenser robot
-
Weight:
-
45kg
-
Operating system:
-
LCD pannel/ Teach Pendant
-
Resolution:
-
0.01
-
Reaptabily:
-
±0.025mm
Product Description

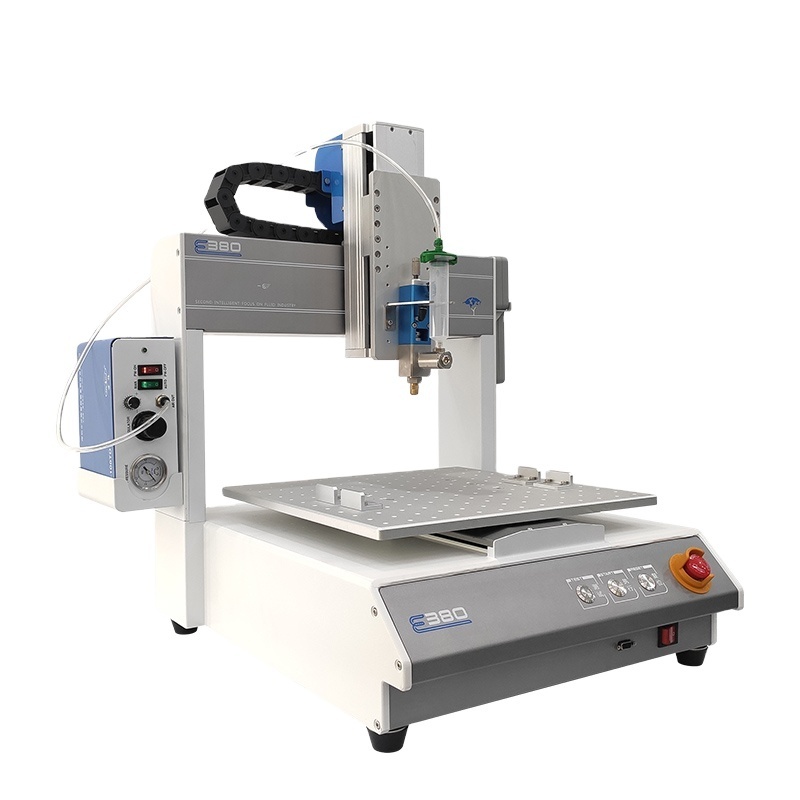

SEC-E380 is durable desktop design automatic glue dispensing machine, one machine for multi-purpose, can equips with different valves and feeding system
.
Features:
1.Durable fully automatic 3 axis dispensing robot.
2.Suit for UV glue, solder paste, red glue...etc.
3.One-piece die-casting aluminum boday.
4.User friendly teaching pendant.
5. Can be equipped with different glue supply systems
2.Suit for UV glue, solder paste, red glue...etc.
3.One-piece die-casting aluminum boday.
4.User friendly teaching pendant.
5. Can be equipped with different glue supply systems
Details
Brass Connector
The brass material has good corrosion resistance and chemical resistance, can be well adapted to various glues, durable for a long time.
Syringe dispensing
Suitable for 5cc, 30cc, 50cc syringe packaging glue, convenient and easy to replace.
One-piece die-casting aluminum body
Lighter in weight, saves the use of screws, and the structure is more stable and durable.
Teaching pendant
The operation and programming are convenient and simple, up to 999 programs can be stored.
Dispensing controller
Precisely control the size of the air pressure to ensure the stability of the amount of glue.
Precision needles
Precision dispensing needles, stainless steel needles, flexible needles, large-flow oblique needles, etc.
Applications
Specification
|
Model
|
SEC-E380
|
SEC-E480
|
SEC-E580
|
||
|
Working range
|
380(X)*380(Y)*100(Z）mm
|
480(X)*480(Y)*100(Z）mm
|
580(X)*580(Y)*100(Z）mm
|
||
|
Max payload
|
7kg(Y)/3kg(Z)
|
|
|
||
|
Max travel speed
|
400mm/sec(XY)/200mm/sec(Z)
|
|
|
||
|
Driven mode
|
Stepper motor, belt, lead screw
|
|
|
||
|
XYZ position accuracy
|
±0.025mm
|
|
|
||
|
Resolution
|
0.01
|
|
|
||
|
Memory storage
|
999 program setup (each program store up to 65535 spots)
|
|
|
||
|
Operating method
|
LCD, User friendly teach pendant
|
|
|
||
|
Motor
|
Precision stepper motor
|
|
|
||
|
Monement patterns
|
3 axis spot to spot, continue line, arc
|
|
|
||
|
I/O
|
1 input, 4 output(support expansion)
|
|
|
||
|
Power supply
|
AC 22V 50/60 Hz 0.5 KW
|
|
|
||
|
Working environment
|
Temperature 0~40℃，Humidity 20%~90%
|
|
|
||
|
Weight
|
Approx 48kg
|
Approx 60kg
|
Approx 75kg
|
||
|
Machine demension
|
520*583*645mm
|
620*683*645mm
|
720*783*645mm
|
||
