Quick Details
-
Production Capacity:
-
7000mm/min
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
JINKA
-
Voltage:
-
220v-380V
-
Dimension(L*W*H):
-
3450*2250*1950
-
Weight:
-
1000 kg
-
Marketing Type:
-
New Product 2022
-
Model:
-

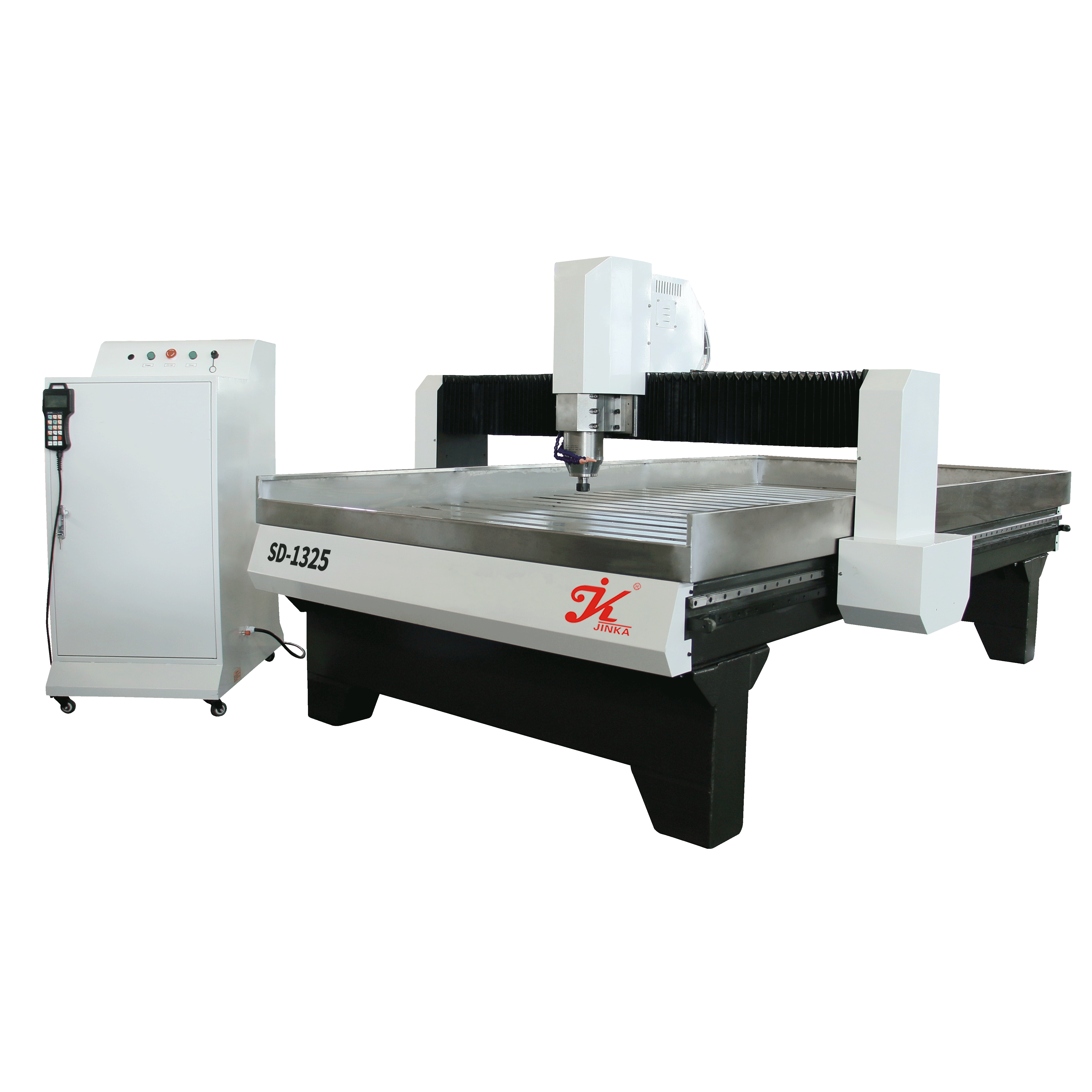

Stone Engraving Machine SD-1325
-
Control system:
-
NC Studio/DSP A11E/Shanlong
-
Table size:
-
1300*2500
-
Feed Height:
-
430mm/530mm
-
Idle speed:
-
10m/min
-
Processing speed:
-
10m/min
-
Spindle power:
-
3-5.5KW water cooling system
-
Working Voltage:
-
AC220v/50Hz
-
Spindle speed:
-
6000-24000rpm/min
-
Positioning accuracy:
-
0.03mm
Quick Details
-
Type:
-
Stone Engraving Machine
-
Power:
-
3.5-5.5 KW
-
Cutting thickness (max):
-
8mm
-
Production Capacity:
-
7000mm/min
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
JINKA
-
Voltage:
-
220v-380V
-
Dimension(L*W*H):
-
3450*2250*1950
-
Weight:
-
1000 kg
-
Marketing Type:
-
New Product 2022
-
Model:
-
Stone Engraving Machine SD-1325
-
Control system:
-
NC Studio/DSP A11E/Shanlong
-
Table size:
-
1300*2500
-
Feed Height:
-
430mm/530mm
-
Idle speed:
-
10m/min
-
Processing speed:
-
10m/min
-
Spindle power:
-
3-5.5KW water cooling system
-
Working Voltage:
-
AC220v/50Hz
-
Spindle speed:
-
6000-24000rpm/min
-
Positioning accuracy:
-
0.03mm
Overview
Feature
◆Nc studio system,stable and high precision,
◆three axis adopted 30 linear guide rails and large bearing capacity rack,hign precision,long life.
◆The whole machine adopts heavy duty structure,Gangry tempering treatment,good rigidty and not easy to deformation.
◆ Three axes are equipped with Leadshine hybird servo motor,strong stability especially suitablt for hard stone working.
◆JINZUAN customized ,stone industry high-speed spindle,high wear resistance,cutting strenght,high efficiency.
◆Two-way tool cooling system,effectively improve tool service life.
◆CNC control system,with memory function,can continue to work after tools breaking or power off.
◆Compatible with any CAM software in the world:TYPE 3/Artcam/CAXA/UG/Pro-E/Mastercam/JD etc.
Technical Data
|
Parameters
|
|
Specification
|
|
|
Controller
|
|
nc studio
|
|
|
Working Area
|
|
1300*2500mm
|
|
|
Stroke
|
X axis
|
1300mm
|
|
|
|
Y axis
|
2500mm
|
|
|
|
Z axis
|
430mm
|
|
|
Feeding height
|
|
430mm
|
|
|
Working speed
|
|
6000-24000rpm/min
|
|
|
Max idle speed
|
|
15m/min
|
|
|
Positioning accuracy
|
|
0.03mm
|
|
|
Repeat positioning accuracy
|
|
0.02mm
|
|
|
Spindle power
|
|
3kw-5.5kw water cooling system
|
|
|
Spindle cooling
|
|
water cooling spindle
|
|
|
Collet
|
|
3.175/4/6/8/10/12.7mm
|
|
|
|
X axis
|
rack drive
|
|
|
|
Y axis
|
rack drive
|
|
|
|
Z axis
|
screw drive
|
|
|
|
X axis
|
PMI
|
|
|
|
Y axis
|
PMI
|
|
|
|
Z axis
|
PMI
|
|
|
Inventer
|
|
Chinese inventer
|
|
|
Dust collection
|
|
dust proof
|
|
|
Lubrication
|
|
automatic oiling
|
|
|
Dust protection
|
|
dust proof
|
|
|
Working voltage
|
|
AC220V/50Hz
|
|
|
Dimensions
|
|
3450*2250*1950mm
|
|
|
Net weight
|
|
1000kg
|
|
Application
Packing & Shipping
Standard export package
Plywood case
Reinforced plywood case
Container loading capacity
One full unit of regular 1325 machine with plywood package can be loaded in a regular 20GP container. Max 3~6 units of 1325 machines can be loaded in a 20GP container, if machines will be loaded in several parts. There will be brief instruction to guide you to assemble the machines. Max 6 units of 1325 full machines can be loaded in a 40HC container, and max 14~15 units of 1325 machines can be loaded in a 40HC container, if loaded in several parts.
For more details regarding loading capacity, please contact us to check further.
