Quick Details
-
Engine Capacity:
-
< 4L
-
Gross Vehicle Weight:
-
1000
-
Drive Wheel:
-
Other
-
Place of Origin:
-
Henan, China
-
Product name:
-
2 ton dump truck
-
Color:
-
Request
-
Box size:
-
1800*1210*620mm
-
Thickness of box:
-
5mm
-
Operating speed:
-
15-30km/h
-
Name:
-
2 ton dump truck
-
Tire:
-
4.50-14/6.50-16
-
Power:
-
3000W
-
Net weight:
-
1000kg
-
Voltage:
-
72v
Quick Details
-
Condition:
-
New
-
Horsepower:
-
Other
-
Emission Standard:
-
Euro 4
-
Engine Capacity:
-
< 4L
-
Gross Vehicle Weight:
-
1000
-
Drive Wheel:
-
Other
-
Place of Origin:
-
Henan, China
-
Product name:
-
2 ton dump truck
-
Color:
-
Request
-
Box size:
-
1800*1210*620mm
-
Thickness of box:
-
5mm
-
Operating speed:
-
15-30km/h
-
Name:
-
2 ton dump truck
-
Tire:
-
4.50-14/6.50-16
-
Power:
-
3000W
-
Net weight:
-
1000kg
-
Voltage:
-
72v

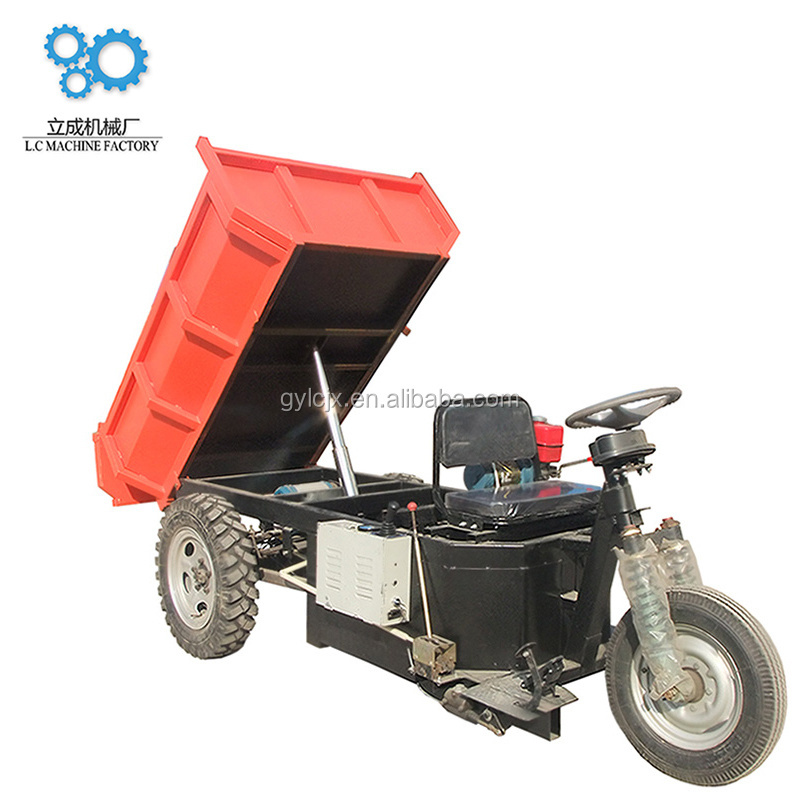

Hydraulic mini dumper
The hydraulic mini dumper is a new type of self-unloading tricycle, driven by electric for fuel, in the form of hydraulic movements. It consists of chassis, hydraulic lifting mechanism, cargo hold, equipment and other components. The use of this tricycle is very extensive, can be used in mining transport, garbage transport, and construction site transport and so on. Dump tricycle has a very convenient pull cargo and unloading capacity, and easy to operate, can save more time and efficiency.
|
Item |
Main technical parameters |
Details |
|
Size |
Overall size |
3250*1250*1350mm |
|
Loading box size |
1800*1210*620mm |
|
|
Thickness of box |
5mm |
|
|
Workbench height |
720mm |
|
|
Tire |
Front tire |
4.50-14 |
|
Rear tire |
6.50-16 |
|
|
Motor |
Lifting motor power |
1200w |
|
Drive motor power |
3000w |
|
|
Rotating speed |
3500r/min |
|
|
Battery |
Voltage |
72V |
|
Current |
185A |
|
|
Charger voltage |
72V |
|
|
Charging hour |
8h |
|
|
Work hour |
10-12h |
|
|
Weight |
Net weight |
1000kg |
|
Loading capacity |
2000kg |
|
|
Others |
Operating speed |
15-20km/h |
|
Maximum gradeability |
25 degrees |
|
|
Insulation |
Level B |
Main Features of the hydraulic mini dumper:
1) No pollution, high performance, low loss and energy saving.
2) Easy to operate and maintain without technical training.
3) Heavy load,wide applying.
4) It is the ideal transport in mining,flourmill,brickyard,etc.
Customer Feedback: Our electric mini dumper using underground mine
It consists of chassis, hydraulic lifting mechanism, cargo hold, equipment and other components.The picture is the details of the 1.5 ton cargo electric mini dumper:
1.The hydraulic lifting system
2.The controlling system
3.The motor system,it adopts the driving motor and the lifting motor
The picture of the loading box
