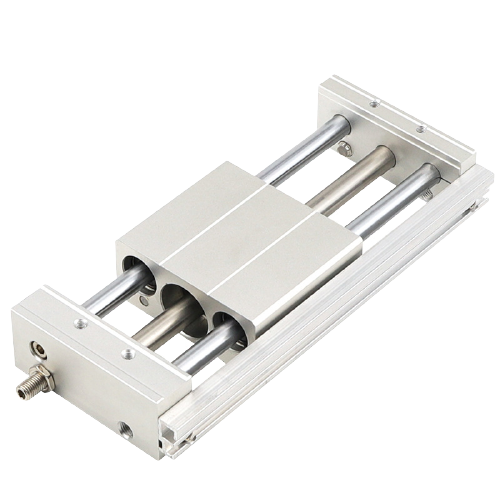

SMC Type CY1S-Z Series Magnetically Coupled Rodless Cylinder-Slide Bearing

Rodless Cylinder, CY1S-Z, Magnetically Coupled (mm Stroke) - Slide Bearing
The CY1S-Z Rodless Cylinder - Magnetically Coupled uses industrial strength magnets located in the piston and external carriage to form a single unit that will travel when actuated with air pressure. It is a one piece unit integrated with slide bearings which provides lateral stability protecting it from side load impacts. The CY1S-Z cylinder tube has lube retainers on the internal and external surfaces to retain lubrication.

Bore sizes: 6, 10, 15, 20, 25, 32, & 40 (mm)
Stroke lengths: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, 1500 mm
Minimum operating pressure: 0.18 MPa (26 psi)
Speed: 50 ~ 400 mm/sec.
Options: XB9 - Low Speed (15 ~ 50 mm/sec.), XB13 - Ultra Low Speed (7 ~ 50 mm/sec),
Auto switch capable
