Quick Details
-
Range of Spindle Speed(r.p.m):
-
50 - 2000 r.p.m
-
Max. Turned Length (mm):
-
700 mm
-
Spindle Motor Power(kW):
-
0.75
-
Place of Origin:
-
China
-
Brand Name:
-
TOKMC
-
Model Number:
-
TOK280VF
-
Voltage:
-
110V/220V/240V/250V
-
Dimension(L*W*H):
-
1350x560x570mm
-
Weight (KG):
-
140 KG
-
Marketing Type:
-
New Product 2022
Quick Details
-
Max. Length of Workpiece (mm):
-
750
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
26
-
Range of Spindle Speed(r.p.m):
-
50 - 2000 r.p.m
-
Max. Turned Length (mm):
-
700 mm
-
Spindle Motor Power(kW):
-
0.75
-
Place of Origin:
-
China
-
Brand Name:
-
TOKMC
-
Model Number:
-
TOK280VF
-
Voltage:
-
110V/220V/240V/250V
-
Dimension(L*W*H):
-
1350x560x570mm
-
Weight (KG):
-
140 KG
-
Marketing Type:
-
New Product 2022

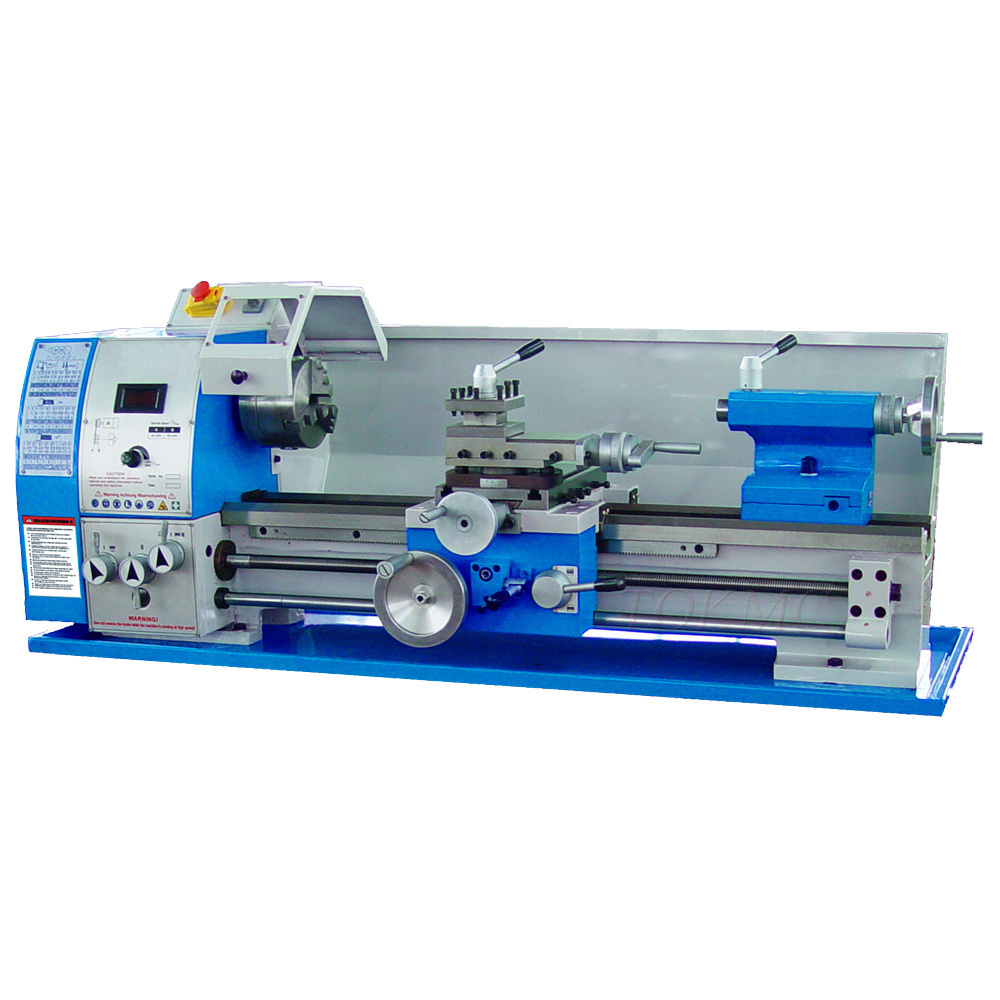

Most popular variable speed lathe
V-way bed is hardened and precision ground
Spindle is supported by precision tapered roller bearing
MT4 spindle hole gets more capacity
High precision chuck
T-slotted cross slide
Power longitudinal feed allows threading
Adjustable gids for slideways
Top design of gear box gets more function
Right and left hand threads cutting is available
Tailstock can be offset for turning tapers
Equiped with high quality belt and control board
Tolerance test certificate,test flow chart included
V-way bed is hardened and precision ground
Spindle is supported by precision tapered roller bearing
MT4 spindle hole gets more capacity
High precision chuck
T-slotted cross slide
Power longitudinal feed allows threading
Adjustable gids for slideways
Top design of gear box gets more function
Right and left hand threads cutting is available
Tailstock can be offset for turning tapers
Equiped with high quality belt and control board
Tolerance test certificate,test flow chart included
Standard accessory : splash guard, chip tray, tool box and tools
|
Specification
|
unit
|
TOK280VF
|
|
Distance between centers
|
mm
|
750
|
|
Swing over bed
|
mm
|
280
|
|
Swing over cross slide
|
mm
|
165
|
|
Spindle taper
|
Morse
|
MT4
|
|
Spindle Bore
|
mm
|
26
|
|
Number Of Spindle Speed
|
|
Variable speed
|
|
Spindle speed range
|
Rpm
|
50-2000
|
|
Range of cross feeds
|
Mm/rev
|
0.02-0.28
|
|
Range of Longitudinal feeds
|
Mm/rev
|
0.07-0.4
|
|
Range of inch Threads
|
T.P.I
|
8-56
|
|
Range of Metric Threads
|
mm
|
0.2-3.5
|
|
Top slide travel
|
mm
|
50
|
|
Cross slide travel
|
mm
|
140
|
|
Tailstock quill travel
|
mm
|
80
|
|
Taper of Tailstock quill
|
Morse
|
MT2
|
|
Motor
|
kw
|
1.1
|
|
N.W./G.Weight
|
Kgs
|
210/230
|
|
Packing size
|
mm
|
1400x700x680
|
|
optional accessory hobby variable speed lathe
|
|
|
|
|||
|
1
|
Four jaw chuck
|
6
|
ER25 collet chuck
|
|||
|
2
|
Back plate
|
7
|
Collet holder
|
|||
|
3
|
Follow rest
|
8
|
Turning tools
|
|||
|
4
|
Steady rest
|
9
|
Speed counter
|
|||
|
5
|
Face plate
|
10
|
Quick change tool post
|
|||
|
|
|
11
|
Foot stand
|
|||
-When do you delivery?
Depending on your community we delivery ,10-30 days
-Is machine tested ?
The accuracy , noisy will be tested.
Machine will be running one hour before despatch
-How do I pay? Do you accept cash or L/C?
We accept Interac e-transfers .cash, and T/T ，L/C
-How is the warranty ?
12 months
- If i have a problem, Will you be available by email to assist with solving the problem.
Video techanical support, online service ,We can answer it in 24 hours.
Depending on your community we delivery ,10-30 days
-Is machine tested ?
The accuracy , noisy will be tested.
Machine will be running one hour before despatch
-How do I pay? Do you accept cash or L/C?
We accept Interac e-transfers .cash, and T/T ，L/C
-How is the warranty ?
12 months
- If i have a problem, Will you be available by email to assist with solving the problem.
Video techanical support, online service ,We can answer it in 24 hours.
