MAIN TECHNICAL SPECIFICATINS
|
|
|
|
|||
|

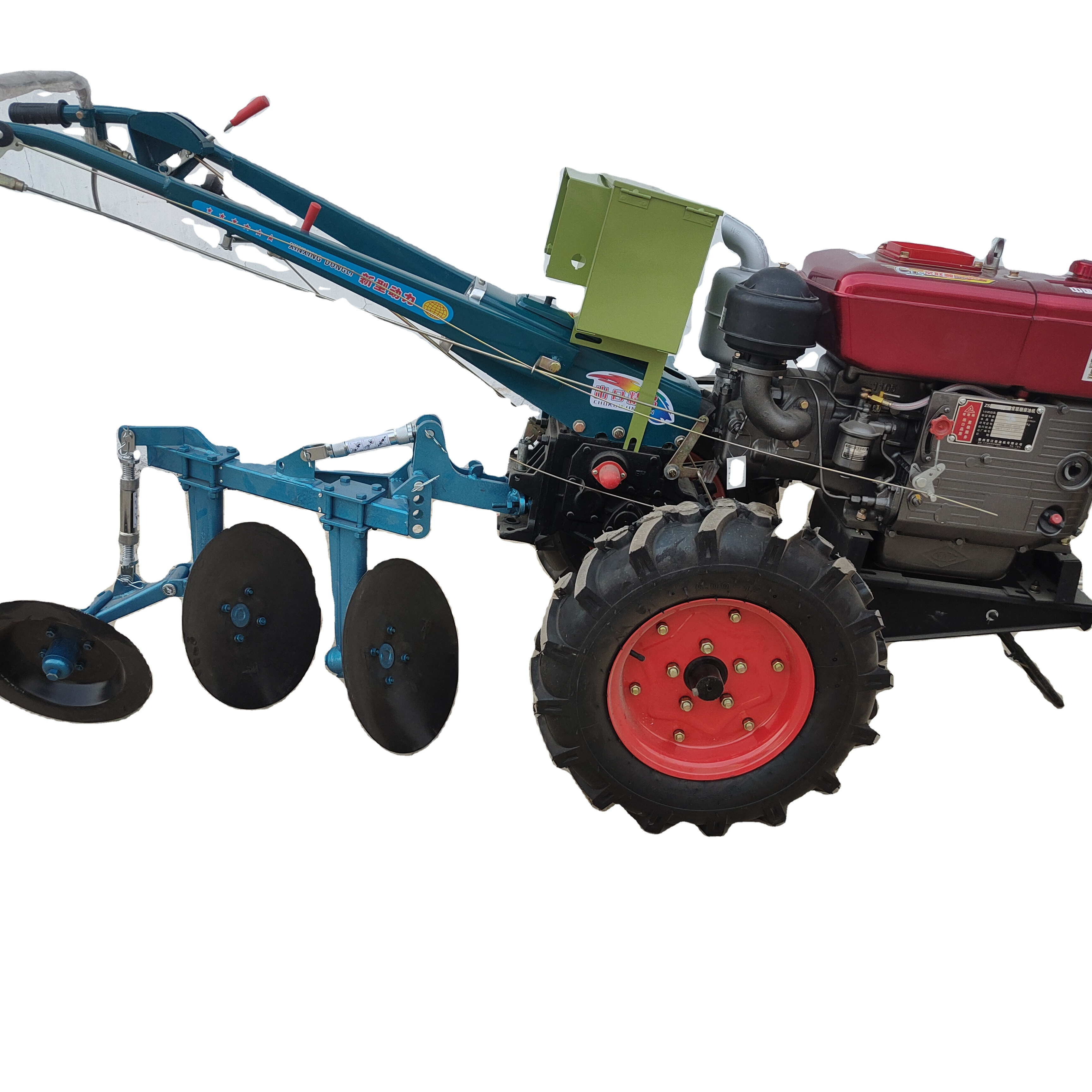

Model of Power Tiller
|
|
Unit
|
15L
|
|||
|
Structure
|
without rotavator
|
Kg
|
360
|
|||
|
weight
|
with rotavator
|
|
465
|
|||
|
Working Weight (with rotavator)
|
|
kg
|
505
|
|||
|
Turning speed of rototilling shaft
|
|
rpm
|
188
|
|||
|
Overall dimensions (L×W×H)
|
|
mm
|
2680×960×1250
|
|||
|
Number of blades
|
|
PCS
|
18
|
|||
|
Rototilling width
|
|
mm
|
600
|
|||
|
Type of tractor
|
|
|
Single axle,dual-purpose for both tractor &drive
|
|||
|
Traveling
|
Forword
|
km/h
|
1.4, 2.5, 4.1, 5.3, 9.4, 15.3
|
|||
|
speed
|
Reverse
|
|
1.1, 3.8
|
|||
|
Tyre Size
|
|
|
6.00-12
|
|||
|
Wheel track
|
|
mm
|
800,740,640,580(normally use 800)
|
|||
|
Min.ground clearance
|
|
mm
|
185
|
|||
|
Min.turning radius
|
|
m
|
0.9(with no rotavator)
|
|||
|
Model ofengine
|
|
|
S1100A2N
|
|||
|
Type of engine
|
|
|
Horizontal 4-stroke
|
|||
|
Bore×stroke
|
|
mm
|
100×115
|
|||
|
Total displacement
|
|
L
|
0.903
|
|||
|
Compression ratio
|
|
|
19.5:1
|
|||
|
Turing speed of crankshaft
|
|
rpm
|
2000
|
|||
|
1-hour rated output
|
|
kW/hp
|
10.50/14.30
|
|||
|
12-hour rated output
|
|
kW/hp
|
9.8/13.33
|
|||
|
Specific fuel consumption
|
|
g/kW.h
|
257
|
|||
|
Specific lube oil consumption
|
|
g/kW.h
|
≤2.04
|
|||
|
Cooling mode
|
|
|
Condenser(Radiator)
|
|||
