Quick Details
-
Brand Name:
-
PROYU
-
Model Number:
-
PY-YX110B
-
Data Storage Options:
-
NONE
-

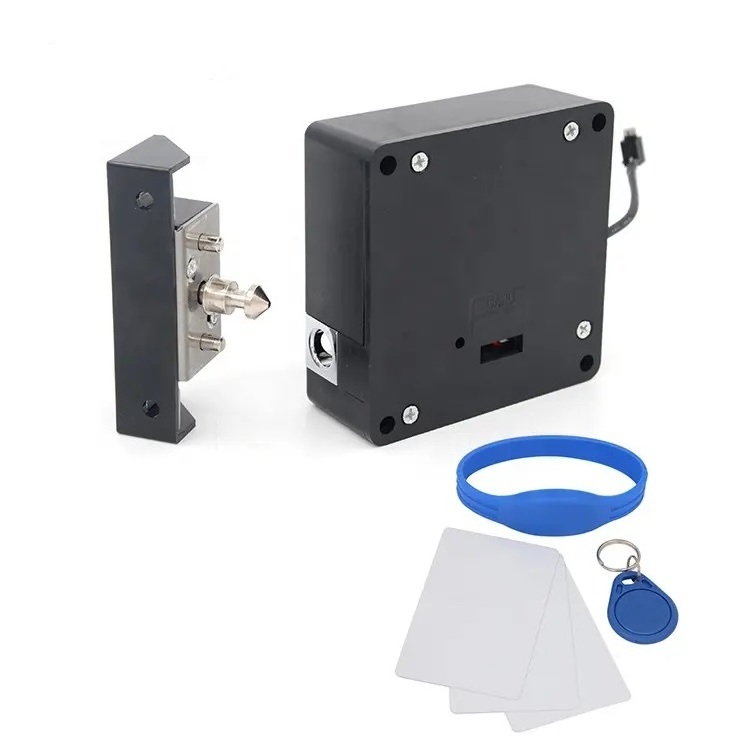

Product Name:
-
RFID Hidden Drawers Lock
-
Unlock way:
-
RFID Card Bracelet
-
Power supply:
-
DC6V, 4pcs AA alkaline batteries
-
Material:
-
Zinc Alloy
-
Color:
-
black
-
Suitable for:
-
Small Cabinet
-
Application:
-
office cabinet,sauna cabinet,document cabinet
-
Warranty:
-
1 Year
Quick Details
-
Door Type:
-
Wood door, Steel door, Stainless Steel door, Aluminum door
-
Network:
-
NONE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PROYU
-
Model Number:
-
PY-YX110B
-
Data Storage Options:
-
NONE
-
Product Name:
-
RFID Hidden Drawers Lock
-
Unlock way:
-
RFID Card Bracelet
-
Power supply:
-
DC6V, 4pcs AA alkaline batteries
-
Material:
-
Zinc Alloy
-
Color:
-
black
-
Suitable for:
-
Small Cabinet
-
Application:
-
office cabinet,sauna cabinet,document cabinet
-
Warranty:
-
1 Year
Product Functions
1. Invisible design: no panel, no key hole. No body except god and you will know your secret.
2. Read (swipe) RFID card to Unlock. No mechanical key needed.
3. Up to 50mm inductive reading distance,fast unlocking.Can be installed on thicker cabinet/locker/box/compartment.
4. Small in size, easy to hide. Your secret can be well protected.
5. Easy installation. No need to drill holes, will not destroy the appearance of your cabinet.
6. Vertically and horizontally universal locking design, flexible installation, fit kinds of cabinet.
7. Moisture-Proof ABS lock body shell, stainless steel latch and side catch, makes the lock stronger and more duable.
8. Low power consumption, 4 AA batteries last for 1 year.
9. Low battery alarm and automatic opening, plus external power port, you don't need to worry about being unable to unlock it if battery exhausted.
2. Read (swipe) RFID card to Unlock. No mechanical key needed.
3. Up to 50mm inductive reading distance,fast unlocking.Can be installed on thicker cabinet/locker/box/compartment.
4. Small in size, easy to hide. Your secret can be well protected.
5. Easy installation. No need to drill holes, will not destroy the appearance of your cabinet.
6. Vertically and horizontally universal locking design, flexible installation, fit kinds of cabinet.
7. Moisture-Proof ABS lock body shell, stainless steel latch and side catch, makes the lock stronger and more duable.
8. Low power consumption, 4 AA batteries last for 1 year.
9. Low battery alarm and automatic opening, plus external power port, you don't need to worry about being unable to unlock it if battery exhausted.
Products Description
|
Name
|
RFID Hidden Cabinet Lock
|
|
Lock size
|
76*76*30 mm
|
|
Unlock
|
Mifare@ card
|
|
Color
|
black
|
|
Power supply
|
DC6V( AAA1.5V*4) alkaline battery
|
|
Emergency power
|
External power box
|
|
Working Mode
|
1-Key Mode and 2-Key Mode
|
|
Material
|
ABS
|
|
Weight
|
0.25kg/pc
|
|
Installation
|
≤50 mm Thickness Cabinet
|
|
Suitable for
|
Small Cabinet
|
|
Door Thickness
|
15-25mm
|
|
Usage
|
Gym/Spa/Swimming , sauna , golf
|
|
Warranty
|
1 year
|
Product Paramenters
Lock body material: ABS Plastic
Accept cabinet or wardorbe door thickness: within 50mm.
Suitable for Wooden door only
Power supply: 4pcs AAA alkaline batteries.(NOT include)
Low voltage alarm: 4.5V
Working Temperature: -30 ℃ ~ 60 ℃
Back-up power: 2.5mm socket for emergency power supply.it’s 2.5mm female audio port. ( USB Cable Include and use phone charge or
power bank to power it). If you want 5V DC instead of 4pcs AAA batteries, the lock maybe have lower power alert. You can't input
4pcs AAA batteries(NOT include) and connect 5V DC for long time, the lock will break.
You can use 2-pole or 3-pole or 4-pole 2.5mm male jack, the inner pole is positive, the second pole is negative(GND)
Accept cabinet or wardorbe door thickness: within 50mm.
Suitable for Wooden door only
Power supply: 4pcs AAA alkaline batteries.(NOT include)
Low voltage alarm: 4.5V
Working Temperature: -30 ℃ ~ 60 ℃
Back-up power: 2.5mm socket for emergency power supply.it’s 2.5mm female audio port. ( USB Cable Include and use phone charge or
power bank to power it). If you want 5V DC instead of 4pcs AAA batteries, the lock maybe have lower power alert. You can't input
4pcs AAA batteries(NOT include) and connect 5V DC for long time, the lock will break.
You can use 2-pole or 3-pole or 4-pole 2.5mm male jack, the inner pole is positive, the second pole is negative(GND)
