Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, CAD CORELDARW DSB JPEG CDR
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
coconut engraving machine
-
Dimension(L*W*H):
-
4.1*1.51*1.21mm
-
Weight (KG):
-
300 KG
-
Machine name:
-
Young coconut laser stamping machine
-
Laser engraving machine application:
-
For young coconut, old coconut cutting and engraving
-
Scanning speed for engraving:
-
800mm/s laser engraving machine
-
Highest scanning precision:
-
25000PSI
-
Laser energy control:
-
0-100% adjustable
-
Coconut laser stamping machine speed:
-
0-64000/minutes
-
Engraving speed:
-
0-48000/minutes
-
Repeating locating:
-
±0.05mm
-
Moving and cutting,engraving system:
-
CNC controller laser engraving machine
-
Operator:
-
1 or 2 people
Quick Details
-
Engraving Area:
-
1000*900mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-64000mm/minute
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, CAD CORELDARW DSB JPEG CDR
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
coconut engraving machine
-
Dimension(L*W*H):
-
4.1*1.51*1.21mm
-
Weight (KG):
-
300 KG
-
Machine name:
-
Young coconut laser stamping machine
-
Laser engraving machine application:
-
For young coconut, old coconut cutting and engraving
-
Scanning speed for engraving:
-
800mm/s laser engraving machine
-
Highest scanning precision:
-
25000PSI
-
Laser energy control:
-
0-100% adjustable
-
Coconut laser stamping machine speed:
-
0-64000/minutes
-
Engraving speed:
-
0-48000/minutes
-
Repeating locating:
-
±0.05mm
-
Moving and cutting,engraving system:
-
CNC controller laser engraving machine
-
Operator:
-
1 or 2 people
Laser cutting tender coconut logo engraving machine for coconut shell
1.Laser engraving machine introduction:
| 1. |
Zhengzhou Cambrian coconut laser engraving machine is special designed for coconut shell cutting, engraving ,and marking. |
| 2. |
Our laser engraving machines are used high quality components,to ensure laser engraving machine stable prefermance,and carve beautiful patterns,logos and so on. |
Laser cutting tender coconut logo engraving machine for coconut shell
2.Laser engraving machine detailes:
|
We have several kinds of coconut shell laser engraving machine,you can choose the engraving capacity according to your application. |
|
The detail drawing are seen as below: |

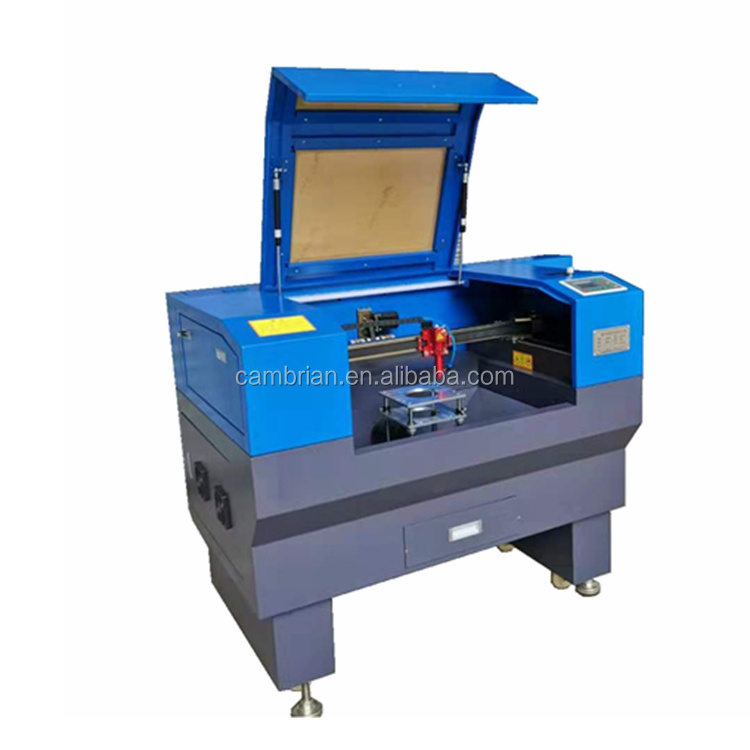

1. Single head coconut shell laser cutting and engraving machine
2.Double head 2 position coconut shell laser cutting and engraving machine
3.Double head 16 position coconut shell laser cutting and engraving machine
Laser engraving machine for logo, pattern on tender diamand shape coconut
3.Laser engraving machine features:
| 1. |
Adopting advanced CNC control system and international standard laser supply,in integrated framework style,that make the working in high stability and high speed. |
| 2. |
Transmitting files directly from Coredraw Autocad,
usb3.0
interface
output can off-line working.
|
| 3. |
Sealed CO2 laser tube and imported high quality lens. |
| 4. |
Imported Korea linear rail
and high quality belt for transmission, equips with speed-down structure,ensure the product in high quality and stability cutting.Imported bearing and motor from Japan ensure high quality machine prefermance.
|
| 5. |
Application to material :Acrylic,wood,leather,bamboo,crystal, rubber,plastic,double plate,PCB board,organic glass,etc. |
| 6. |
Graphic format supported : CAD CORELDARW BMP PLT AI DXF DST DSB DXF JPEG CDR |
4.Laser engraving machine specifications:
| Model code | CM-L1 | CM-L2 |
CM-L16 |
| Features |
Single head 1 position |
Double head 2 position |
Double head 16 position |
| Working area | 60*40mm |
90*60mm |
1000*900 |
| Power | 80w |
80w |
80w |
| Engraving scanning speed | 800mm/s | ||
| Highest precision precision | 2500PSI | ||
| Laser energy control | 0-100%adjustable | ||
| Engraving speed | 0-64000mm/minutes | ||
| Cutting speed | 0-48000mm/minutes | ||
| Minium line width | 0.02mm | ||
| Moving system | CNC controlling | ||
| Coolin method | Water circulation cooling | ||
| Voltage | 220V.50hz | ||
| Power | Less than 1.5kw | ||
| Payment term | 30% advance payment by T/T | ||
| Delivery time | 5-7 working days after payment | ||
If you want to customize the machine for your coconuts,please feel free to
contact us.
Our factory have lots of engineers, we are glad to help.
Contate me: Susie 008615939981679
Packaging and Shipping of laser engraving machine
We have been cooperating with several large transport agents and
shipping companies for long terms,the machines will be transported
to you safety and timely.
The machine will be packaged in plywood cases, we will help to
arrange the delivery for you to your suitable seaport or warehouse.
Laser cutting tender coconut logo engraving machine for coconut shell
Delivery time
of laser engraving machine
Normally, 5-7 workdays for production after received your payment.
3.Any problems occur while using, professional advice will be given by us.
4.Can supply other kinds of coconut machines , Please feel free to contact me.
1. Tender coconut peeling machine
2. Coconut polishing machine
3.Coconut de-shell machine
