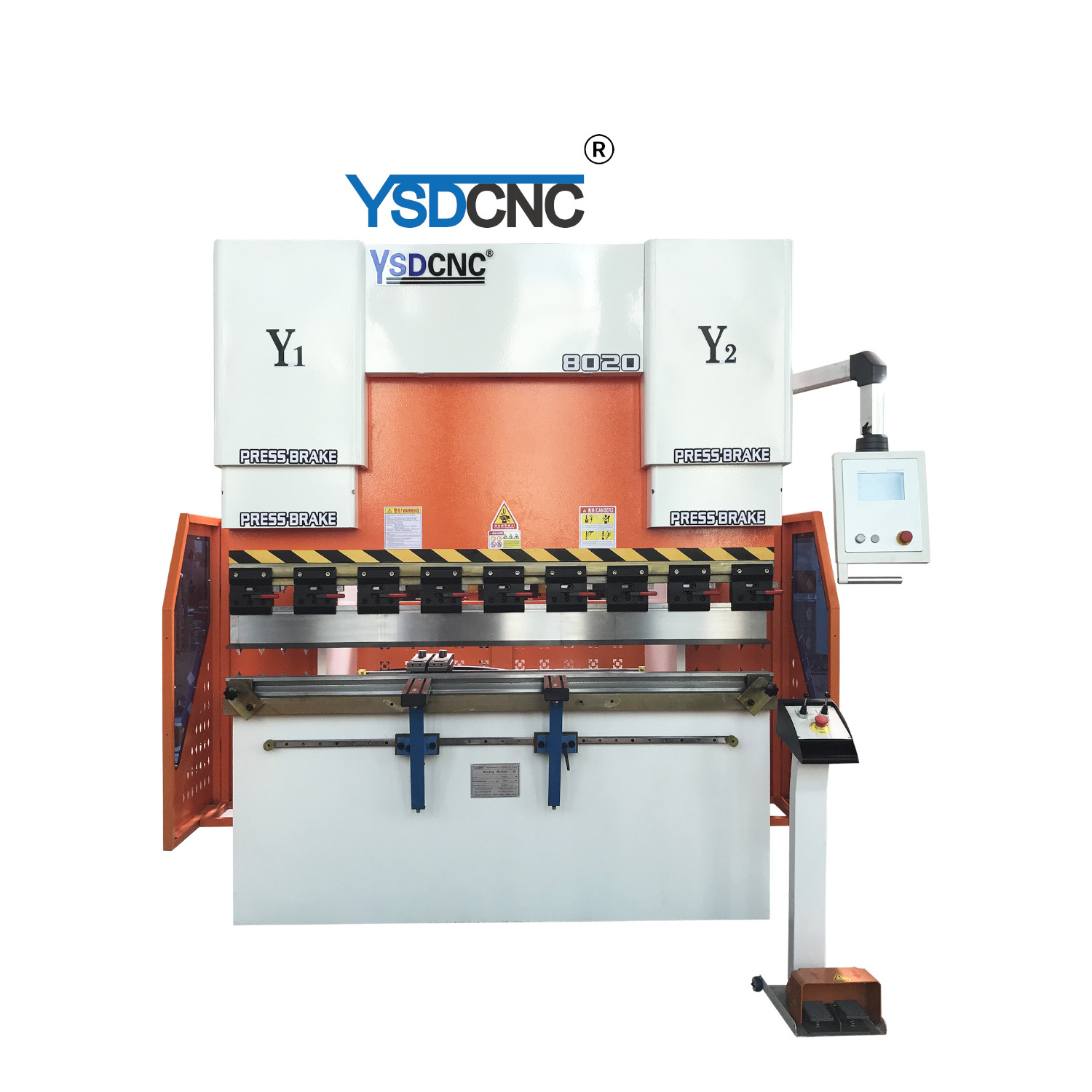

Wc67k 200t 4000mm Pressa Piegatrice E310p Tp10s Ct8 E300p Controller System 3 Servo Motor Nc Press Brake

Wc67k 200t 4000mm Pressa Piegatrice E310p Tp10s Ct8 E300p Controller System 3 Servo Motor Nc Press Brake

FOB Reference Price: Get Latest Price

≥1 Sets

US $5600

≥2 Sets

US $5300

≥5 Sets

US $5000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Throat Depth (mm):: 320 mm

Width of Working Table (mm):: 1200 mm

Dimension:: 2200*1200*1910

Place of Origin:: Jiangsu, China

Brand Name:: Ysdcnc

Year:: 2023

Weight (KG):: 5000

Motor Power (kw):: 7.5 kw

Marketing Type:: New Product 2023

Name:: Hydraulic Press Brake

Color:: Customer Choose

Material:: Stainess Steel

Usage:: Metal Sheet Rolling Cutting Bending

Keyword:: Hydraulic Press Break

Model:: 100ton/2500

Product name:: dobladora de lamina manual

Application:: Stainless Plate Bending

Control system:: tp10

Quick Details

Machine Type:: Torsion Bar

Length of Working Table (mm):: 2500

Slider Stroke (mm):: 120 mm

Throat Depth (mm):: 320 mm

Width of Working Table (mm):: 1200 mm

Dimension:: 2200*1200*1910

Place of Origin:: Jiangsu, China

Brand Name:: Ysdcnc

Year:: 2023

Weight (KG):: 5000

Motor Power (kw):: 7.5 kw

Marketing Type:: New Product 2023

Name:: Hydraulic Press Brake

Color:: Customer Choose

Material:: Stainess Steel

Usage:: Metal Sheet Rolling Cutting Bending

Keyword:: Hydraulic Press Break

Model:: 100ton/2500

Product name:: dobladora de lamina manual

Application:: Stainless Plate Bending

Control system:: tp10

Product Description

1. Whole welded machine structure 2. CybTouch 8P for X axis and Y axis control 3. Single/ Cylinder bending program 4. Work-piece counting function 5. Bending retraction function 6. Backgauge with ball screw and Manual R axis

CybTouch 8P CNC system ： 8 "color LCD, touch screen, icon recognition function; EasyBend page for easy single bending; Fully efficient bending programming meets the requirements of mass production machine; Automatically calculate bending angle, main pressure and deflection compensation bending data Automatic calculation; Automatic calculation of pressure and deflection compensation; Automatic calculation of upper die depth;Angle, back stop correction.

■ 8 "color LCD, touch screen

■ EasyBend page for easy single bending ■ Fully efficient bending programming ■ Automatically calculate bending angle ■ Deflection compensation bending data Automatic calculation;

■Automatic calculation of pressure and deflection compensation; ■Automatic calculation of upper die

depth,Angle, back stop correction.

Details Images

Front Arms

Movable in different directions.

KACON Pedal Switch

South Korea brand foot switch is movable and can stop the machine any time by the emergency button.

Schneider Electric Components

High quality electric parts can perform well Even the electricity is not stable and customers can easily get the replacement

anywhere in the word.

Manual Raxis

Adjust Backgauge up and down

Safety fence

Protective guards on each side can protect the user during operation.

42CrMo Toolings

Press Brake toolings are made from 42CrMo materials with hardness up to 42 degrees to ensuring die service life.

SIEMENS Motor

German famous brand motor improve the lifespan of the and keep the machine working in low noise environment.

Fast clamps

Extremely accurate clamping, positioning extremely accurate clamping, positioning

Hydraulic Valve

Rexroth from Germany.

Servo Motor

Faster speed and higher precision

Manual Crowning

Electric Crowning

Laser Protection

The DSP laser protection with 3 modes comprehensively protects the personal safety of the operators and maintains the high level of the productivity of the YSDCNC press brake.

Special punch and die

WILA Hydraulic Clamping System

WILA has focused on the R&D of the hydraulic clamping systems and supporting tools of press brake machine for many years, and its quality and service are trustworthy.

Safety Light Curtain

The light curtain, YSDCNC chooses is from the well-known brands, with perfect performance to offer a highly effective solution for both operator safety and machine productivity.

Sheet Follower

The YSDCNC press brake with sheet follower for bending long and thin sheets. It places on the front of the press brake at the
height of the bending line.

Robotic Arm

Press brakes abound, virtually every metal fabrication shop has one or more, but brakes still remain one of the most labor
intensive machine tools in the fabrication process. Every fabricator understands the benefits achieved by running a press brake"lights out" 24/7 at top speeds, which can only be accomplished with automation and robots. Browse our offering of advanced Robotic Bending Automation technology that may be the answer to the efficiency improvements you're looking for.

Specification

Model	Nominal Force	Worktable Length	Poles Distance	Throat Depth	Slider Travel	Max Opening height	Power	Dimension
Model		(KN)	(mm)	(mm)	(mm)	(mm)	(mm)	(KW)	LWH(mm)
40T/2200	400	2200	1875	230	100	320	5.5	220012001910
40T/2500	400	2500	1875	230	100	320	5.5	250012001910
50T/2500	500	2500	1875	230	100	320	5.5	250012102000
63T/2500	630	2500	2020	250	100	320	5.5	250013002210
63T/3200	360	3200	2575	250	100	320	5.5	320013002210
80T/2500	800	2500	2020	300	100	320	7.5	250014002300
80T/3200	800	3200	2590	320	100	350	7.5	320015002300
80T/4000	800	4000	3050	320	100	350	7.5	400015002400
100T/2500	1000	2500	2020	320	120	320	7.5	250016002400
100T/3200	1000	3200	2600	320	120	370	7.5	320016002600
100T/4000	1000	4000	3050	320	120	370	7.5	400016002700
125T/3200	1250	3200	2600	320	120	370	7.5	320016002600
125T/4000	1250	4000	3050	320	120	370	7.5	400016002700
160T/3200	1600	3200	2600	320	200	460	11	320017002700
160T/4000	1600	4000	3000	320	200	460	11	400017002800
160T/5000	1600	5000	4000	320	200	460	11	500019003100
160T/6000	1600	6000	4940	320	200	460	11	600019003200
200T/3200	2000	3200	2600	320	200	460	11	320019502800
200T/4000	2000	4000	3000	320	200	460	11	400019502800
200T/5000	2000	5000	4000	320	200	460	11	500019503000
200T/6000	2000	6000	5000	320	200	460	11	600019503300
250T/3200	2500	3200	2500	400	250	590	18.5	320020003200
250T/4000	2500	4000	3000	400	250	590	18.5	400020003400
250T/5000	2500	5000	4000	400	250	590	18.5	500020003400
250T/6000	2500	6000	5000	400	250	590	18.5	600020003400
300T/3200	3000	3200	2530	400	250	590	22	320020003450
300T/4000	3000	4000	3470	400	250	590	22	400020003450
300T/5000	3000	5000	4000	400	250	590	22	500020003450
300T/6000	3000	6000	5000	400	250	590	22	600020003450
400T/4000	4000	4000	3000	400	250	590	30	400021803400
400T/5000	4000	5000	4000	400	250	590	30	500021803500
400T/6000	4000	6000	5000	400	250	590	30	600021803800
500T/5000	5000	5000	4000	400	250	590	45	500035003700
500T/6000	5000	6000	5000	400	320	590	45	600035003700
600T/4000	6000	4000	3000	400	320	590	55	400045003700
600T/6000	6000	6000	5000	400	320	590	55	600045003700
800T/6000	8000	6000	5000	400	320	590	55	600045006000

Our Service

1:The machine provides 36-month warranty and free online support and service from engineers.

2: Provide online technical support
and service for life, even after the warranty period, the engineer team can always provide you with online service at no additional cost. (All our clients have this service, we think it is very necessary)
3: During the warranty period, we can send you spare parts for free replacement.
4: After the machine is completed, free whatsapp online inspection service will be provided.Bend the product according to your requirements, then test it.
5: Pack and record the video, and submit it to you for acceptance service, or you can directly watch online on whatsapp.
6: We can also provide the following information, and it is very necessary.photo of the rating plate you apply on the machine itself-basic manual for the machine in English.

We are a 7-year member of Alibaba, and we

support third-party guarantee transactions of

Alibaba credit insurance transactions, which

can better protect your financial security.

The company provides a variety of transaction

methods: EXW, FOB, CIF, DDU, DDP and other

education methods support customs declaration,

export, transportation and delivery to the door

and other one-stop services.

You can trade through TT, wire transfer,

transfer, paypel, letter of credit, Alibaba

credit order and other transaction methods.

We can deliver to your forwarding warehouse, or

directly to your door, and deliver the goods to

your hands.We cooperate with well-known

international shipping companies such as

COSCO Shipping, and we can also be responsible

for the customs clearance of your goods, delivery

of goods to your door, etc.And we provide free

shipping insurance. If there is any damage during

transportation, our insurance company will settle

the claim for you, and we will send you free

shipping. (If you have any questions, please

you how to operate? We are your most trusted

partner, we are your eyes and hands.)

Our Company

^{Nanjing Shanduan CNC Machine Tool Co., Ltd. has 38}

^{years of industry experience. We specialize in four main}

^{product lines: air duct production lines, CNC bending machines, shearing machines, laser cutting machines, and shredders}

^{for energy recovery. With over 300 employees, including 30}

^{sales engineers and 35 service engineers, our factory spans}

^{40 acres and is equipped with 3 floor-type boring and milling}

^{machines, 6 gantry planers, 10 radial drilling machines, and}

^{25 CNC machining centers. In total, we have over 200 large}

^{and small-scale equipment.}

With over 100,000 customer case experiences and product transportation to over 100 countries, we have a proven track

record in serving a wide range of clients. We are dedicated to assisting you in securing orders and providing high-quality

products and services. Our commitment to excellence has

resulted in many satisfied customers who are eager to

become our agents.

FAQ

Is it in stock? Hello, we have a large amount of stock for standard models, and the regular delivery time is 0~7 days. Customized models can be completed in 7-30 days (depending on the size and voltage of the machine, the time is different.) How to buy? Our company supports a variety of transaction methods, and you can deliver the goods to your door with a deposit in advance.Various transaction methods such as payment to delivery or delivery to the factory. Consult for details: +8618851629789 How about the after-sales service? 15 minutes quick feedback mechanism. 1-to-1 technical guidance. One year warranty and lifetime service. Free replacement of non-wearing parts during the warranty period, and lifelong online technical support provided outside the warranty period. The factory provides spare parts, and the factory installation video provides after-sales service. How about your quality? Our company's products are produced according to national standards, and have passed TUV, SGS, BV, CE and other certifications. Quality assurance, EU approval, the products sell well in more than 100 countries. What other services do you have? Free counter, free customs declaration, free installation training for export, free online technical guidance.
