----Solenoid magnetic field design could reach higher voltage
----The balance design of piston clearance could reinforce the reliable use of this valve in higher temperature.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
USF-170-20-D2
-
Brand Name:
-
SENYA
-
Condition:
-
100%new
-
Certificate:
-
CE Certification
-
Working medium:
-
Air Water Oil Gas
-
Working pressure:
-
0.1 ~ 2.25 Mpa
-
MOQ:
-
10pcs
-
Brand:
-
SENYA
-
Machinery Test Report:
-
Available
-
OEM:
-
Provide OEM Services
-
Packing:
-
Carton Box
-
Technical Support:
-
Video Technical Support
Quick Details
-
Port Size:
-
3/4''G
-
Warranty:
-
12 Months
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
USF-170-20-D2
-
Brand Name:
-
SENYA
-
Condition:
-
100%new
-
Certificate:
-
CE Certification
-
Working medium:
-
Air Water Oil Gas
-
Working pressure:
-
0.1 ~ 2.25 Mpa
-
MOQ:
-
10pcs
-
Brand:
-
SENYA
-
Machinery Test Report:
-
Available
-
OEM:
-
Provide OEM Services
-
Packing:
-
Carton Box
-
Technical Support:
-
Video Technical Support
PRODUCT SPECIFICATIONS
|
No
|
Parameter
|
Data
|
|
1
|
Power
|
24W
|
|
2
|
Working temperature
|
-5 ~ 180 ℃
|
|
3
|
Operating Pressure
|
0.1 ~ 1.5 Mpa
|
|
4
|
Max. Pressure Resistance
|
2.25 Mpa
|
|
5
|
Max. breakout force
|
96kN
|
|
6
|
Voltage Range
|
AC: ±15%，DC: ±10%
|
|
7
|
Body Material
|
Brass or SUS304
|
|
8
|
Material of Seal
|
NBR/EPDM/VITON
|
USB series feature:
----Adopt steeple-crowned structure; automatically sealed compensation could extend the useful life of this valve

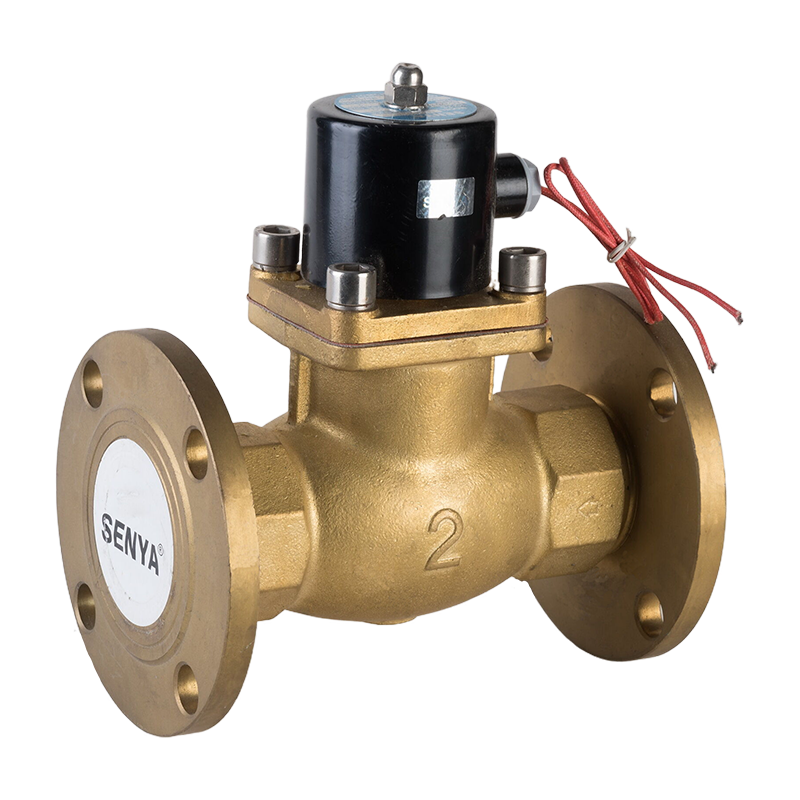

Front elevation
elevation with logo
Disassembling
elevation
