Factory Price Straight-through Stainless Steel Penstock

Factory Price Straight-through Stainless Steel Penstock

FOB Reference Price: Get Latest Price

≥1 Pieces

US $500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: THT

Factory:: YES

Size:: 1560*3400

Type:: Wall Type

Main material:: SS304

Seal material:: EPDM

Actuator:: Manual

Temperature:: ≤80℃

Pressure:: 6M water head

Standard:: Customized Service

MOQ:: 1 Set

Quick Details

Port Size:: 1560*3400

Place of Origin:: Tianjin, China

Model Number:: ZM

Brand Name:: THT

Factory:: YES

Size:: 1560*3400

Type:: Wall Type

Main material:: SS304

Seal material:: EPDM

Actuator:: Manual

Temperature:: ≤80℃

Pressure:: 6M water head

Standard:: Customized Service

MOQ:: 1 Set

Products Description

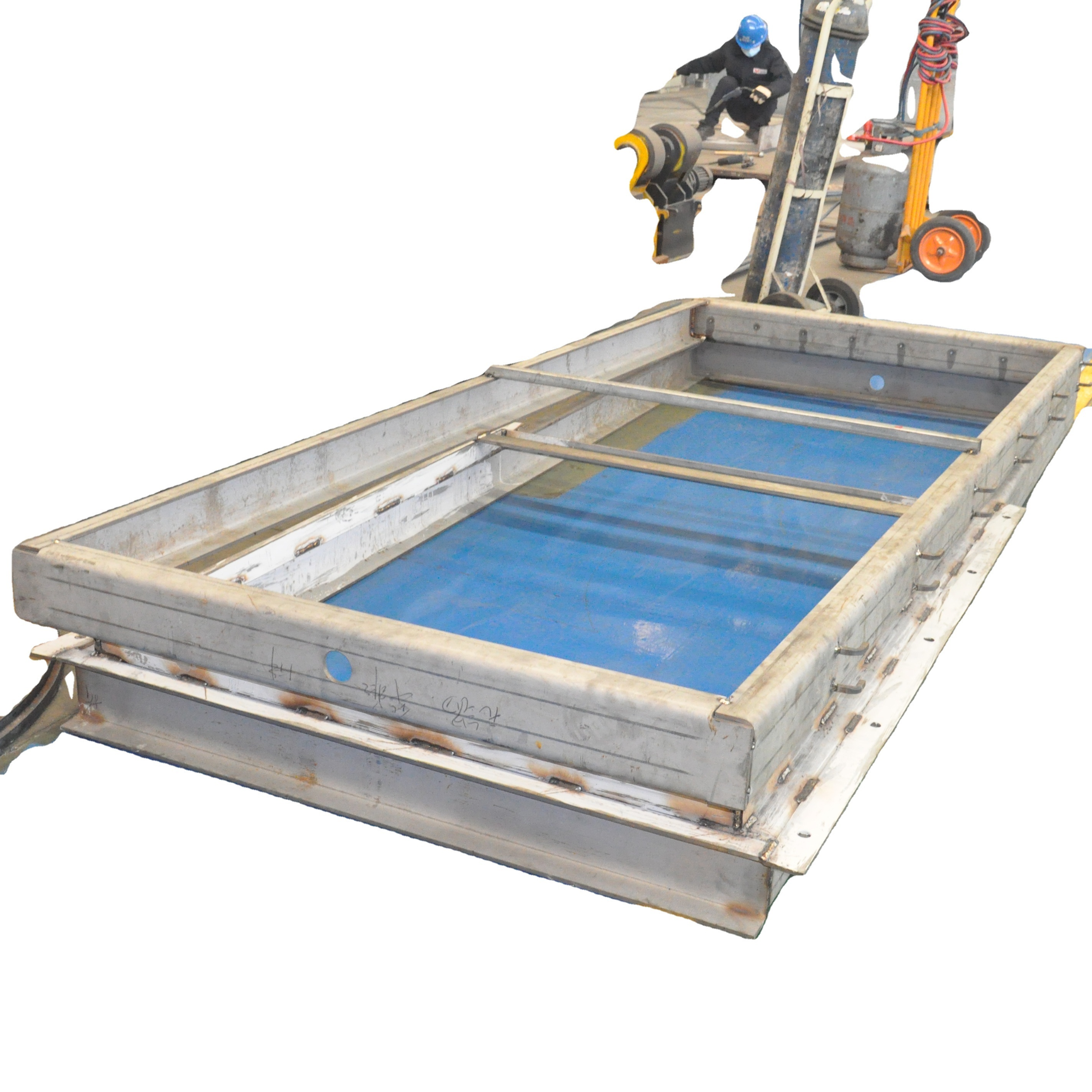

1560*3400 stainless steel wall type sluice gate vlave

This valve are mainly used in sewage treatment plants, waterplants, drainage and irrigation, environmental protection, electricity, channel and other projects to cut off, regulate flow, and control water levels.

Can be divided into four types 1. channel type, used in the middle of the channel, three-way sealing

2.Wall type:used in inlet and outlet of wall for open or close,four way seal

3.Adjusting type: for adjusting the size of the water flow 4. Weir type:for adjusting water level. The sluice gate valve is corrosion resistant, has good sealing performance, long life and easy maintenance.

Pressure&Material

Working Pressure	0.1Mpa
Working Temperature	0 ~80 °C.
Suitable Media	Water
Body Material	SS304
Gate Material	SS304
Shaft Material	20Cr13
Sealing Material	EPDM
Bolts&Nuts	A2-70

Specification

Size	DN100-DN4000
Pressure	0.05Mpa/0.1Mpa/0.15Mpa/0.25Mpa
Design standard	ISO10631/JB/T8692
Test standard	GB/T13927/ API598/ISO5208
Type:	Channel type/wall type
Temperature:	≤80℃
Working head	head pressure≤10m-H2O,back pressre≤2m-H2O
Actuator:	Manual/electric/penufactic
Standard	Customer require
Medium	Water, sewage,sea water,acid media
MOQ	1Set

Suitable materials

Body	Carbon steel/SS/cast steel/super duplex alloys
Gate	Carbon steel/SS/cast steel/super duplex alloys
Shaft	SS304/SS316/SS416
Sealing	EPDM/NBR/brass/bronze
Bolts&Nuts	Stainless steel
