Quick Details
-
Core Components:
-
/
-
Air Pressure(MPa):
-
0.7 MPa
-
Sheet Thickness(mm):
-
0.12 - 1 mm
-
Heating Power (kW):
-
0 kW
-
Air Comsumption(L/min):
-
1200 L/min
-
Water Comsumption(L/min):
-
0 L/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HONGHUA
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
3880X2000X2500
-
Weight (T):
-
3 T
-
Applicable Industries:
-
/
-
Weight:
-
3000KGS
-
Suitable material:
-
BOPS,PS,PET
-
Forming Area:
-
510X570mm
-
Forming depth:
-
100mm
-
Finished product:
-
plastic container
-
Sheet thickness:
-
0.12-1mm
-
Max sheet roller diameter:
-
710mm
-
Air pressure:
-
0.7Mpa
-
Max sheet width:
-
650mm
-
Speed:
-
10-20cycle/min
Quick Details
-
Max.Forming Height(mm):
-
100 mm
-
Forming Width (mm):
-
510 mm
-
Forming Length (mm):
-
570 mm
-
Core Components:
-
/
-
Air Pressure(MPa):
-
0.7 MPa
-
Sheet Thickness(mm):
-
0.12 - 1 mm
-
Heating Power (kW):
-
0 kW
-
Air Comsumption(L/min):
-
1200 L/min
-
Water Comsumption(L/min):
-
0 L/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HONGHUA
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
3880X2000X2500
-
Weight (T):
-
3 T
-
Applicable Industries:
-
/
-
Weight:
-
3000KGS
-
Suitable material:
-
BOPS,PS,PET
-
Forming Area:
-
510X570mm
-
Forming depth:
-
100mm
-
Finished product:
-
plastic container
-
Sheet thickness:
-
0.12-1mm
-
Max sheet roller diameter:
-
710mm
-
Air pressure:
-
0.7Mpa
-
Max sheet width:
-
650mm
-
Speed:
-
10-20cycle/min
Our Advantages
1. We are manufacturer with production experience for more than
20
years
2. We own
CE
certificates
3. We accept
OEM
and
ODM
4. Our salesman is with rich experience in foreign trade and efficient work efficiency
5. High-quality after-sales service to solve all your doubts
Product Paramenters
|
Forming area
|
510X570mm
|
|
Forming depth
|
100mm
|
|
Sheet thickness
|
0.12-1mm
|
|
Sheet roller diameter
|
710mm
|
|
Cutting length
|
6350mm
|
|
Air pressure
|
0.7Mpa
|
|
Water consumption
|
10L/H
|
|
Air consumption
|
1200L/Minute
|
|
Speed
|
10-20cycle per minute
|
|
Power
|
380V,50HZ
|
|
Preheater power
|
4kw
|
|
Mould plate heating power
|
4kw
|
|
Heating plate power
|
15kw
|
|
Weight
|
3000kg
|
|
Dimension
|
3880x2000x2500mm
|
Products Description
INTRODUCTION:

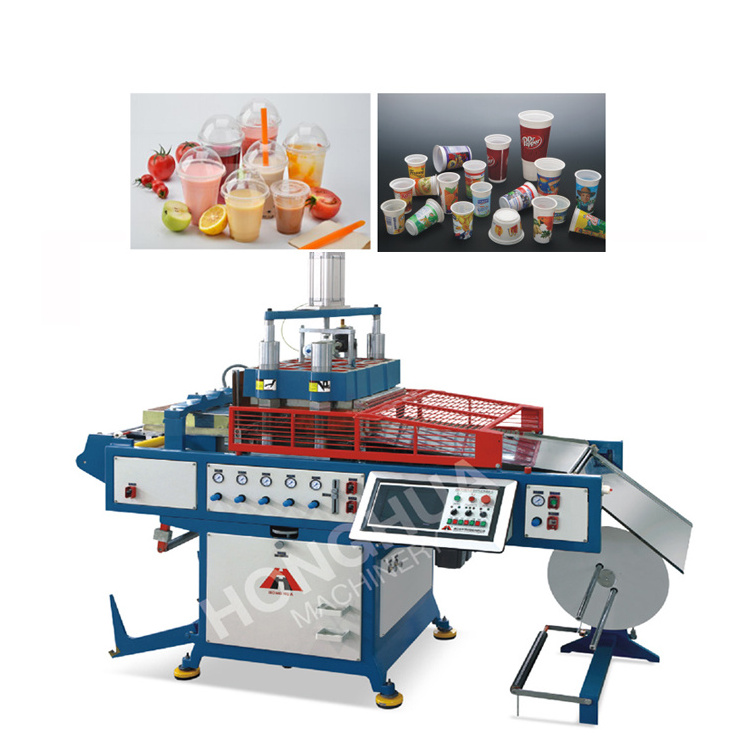

HSC-540760 plastic thermoforming machine is a combination of mechanical,electrical and pneumatic components, and the whole system was controlled by a micro PLC,which can be operated in man- interface.it combines the material feeding,heating,forming and cutting into one process.
APPLICTION AREA：
It is suitable to form BOPS,HIPS,PS,PVC,PET sheet that can produce boxes,trays,fast-food boxes,dishes and lids etc.
HSC-540760 plastic thermoforming machine is a combination of mechanical,electrical and pneumatic components, and the whole system was controlled by a micro PLC,which can be operated in man- interface.it combines the material feeding,heating,forming and cutting into one process.
It is suitable to form BOPS,HIPS,PS,PVC,PET sheet that can produce boxes,trays,fast-food boxes,dishes and lids etc.
Our Workshop
Certifications
FAQ
1. Q: Are you a factory or trading company?
A:W e are a factory,and I'm Eddie, my email address is eddie@honghua.com,0086-18758917681 is my phone number.
A:W e are a factory,and I'm Eddie, my email address is eddie@honghua.com,0086-18758917681 is my phone number.
2. Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products' quality.
3. Q: How long is the warranty period?
A: All of our machines have one year warranty.
4. Q: What's the main market of your company?
A: We have customers all over the world.
3. Q: How long is the warranty period?
A: All of our machines have one year warranty.
4. Q: What's the main market of your company?
A: We have customers all over the world.
