Quick Details
-
Model Number:
-
Volcanic Lava stone cutting segment
-
Product name:
-
diamond segment for lava stone
-
Application:
-
lavastone, volcanic lava stone, marble, granite, etc.
-
Material:
-
Diamond + Metal Powder
-
Usage:
-
Wet use
-
Feature:
-
high cutting efficiency, debris removal, better cooling
-
Certification:
-
Tuv
-
Size:
-
Customized Size
-
Keywords:
-
diamond segments
-
Grade:
-
A+,A-,B,C-Grade etc.
-
Machine:
-
Bridge saw machine
Quick Details
-
Warranty:
-
None
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
LINSING
-
Model Number:
-
Volcanic Lava stone cutting segment
-
Product name:
-
diamond segment for lava stone
-
Application:
-
lavastone, volcanic lava stone, marble, granite, etc.
-
Material:
-
Diamond + Metal Powder
-
Usage:
-
Wet use
-
Feature:
-
high cutting efficiency, debris removal, better cooling
-
Certification:
-
Tuv
-
Size:
-
Customized Size
-
Keywords:
-
diamond segments
-
Grade:
-
A+,A-,B,C-Grade etc.
-
Machine:
-
Bridge saw machine

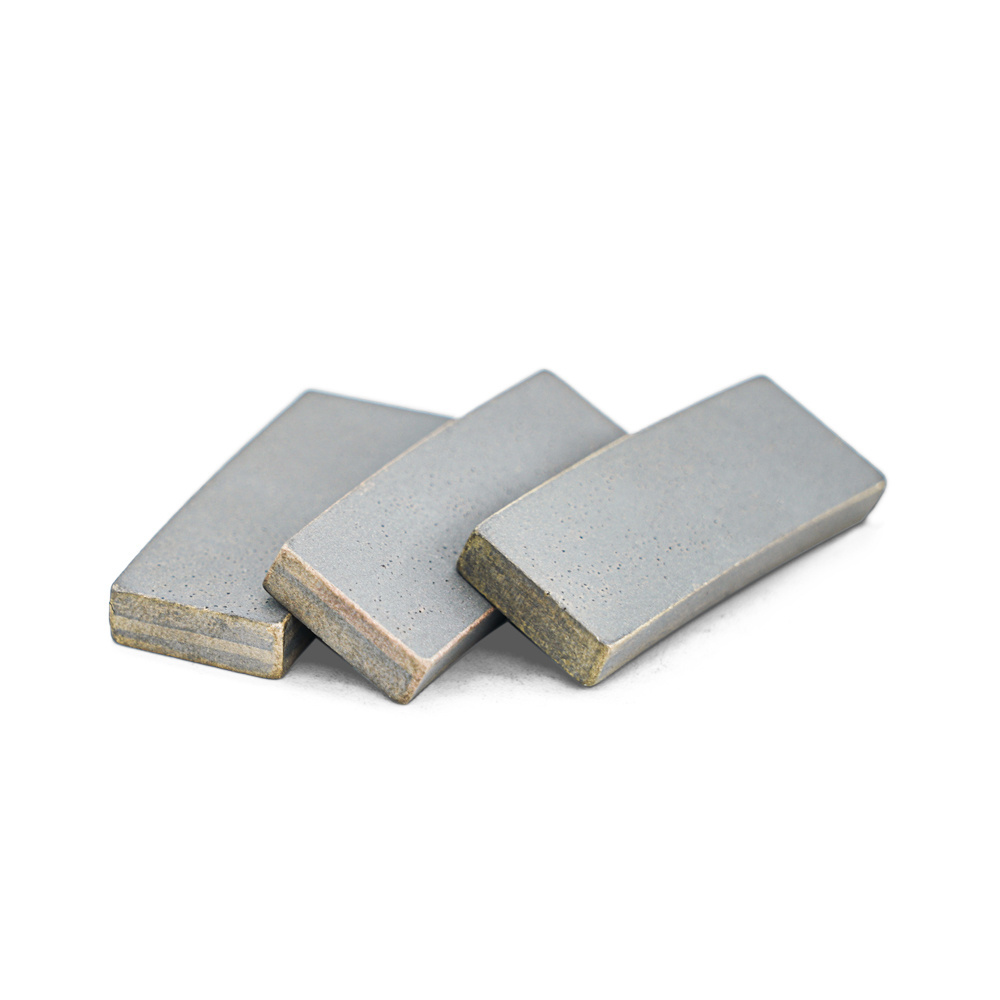

Lavastone Cutting Segment
Lavastone cutting segment can be produced for cutting lavastone, there are always manufactured in sandwich and layer design. No matter what the shapes, the aim is to obtain a good cooling and easy flush away the chipping. Diamonds and bond in the outer and inner layers are carefully designed to ensure cutting stability.
Product Features:
1.Good sharpness and high efficiency without chipping.
2.Strict QC for stable cutting performance.
3.Long lifespan and stable performance.
4.Segment is easy for opening.
5. Good balance assures excellent grinding effect.
Product Specification:
| Diameter (mm) | Steel Core (mm) | Segment Size | Segment Number |
| Φ300 | 2.2 | 40×3.2×10 | 22 |
| Φ350 | 2.4 | 40×3.4×10 | 25 |
| Φ400 | 2.6 | 40×3.6×10 | 29 |
| Φ450 | 2.8/3.0 | 40×4.0×10 | 32 |
| Φ500 | 3.0/3.2 | 40×4.2×10 | 36 |
| Φ600 | 3.6/3.8 | 40×4.8×10 | 42 |
| Φ700 | 4 | 40×5.2×10 | 42 |
| Φ800 | 4.5 | 40×6.0×10 | 46/57 |
| Φ900 | 5 | 24×7.5×8(10,12) | 64 |
| Φ1000 | 5 | 24×7.5×8(10,12) | 70 |
| Φ1200 | 5.5 | 24×8.5×8(10,12) | 80 |
| Φ1300 | 6 | 24×8.5×8(10,12) | 88 |
| Φ1400 | 6.5 | 24×9.0×8(10,12) | 92 |
| Φ1600 | 7.2 | 24×9.5×8(10,12) | 108 |
| Φ1800 | 7.5 | 24×10.0×8(10,12) | 120 |
| Φ2000 | 8 | 24×10.5×8(10,12) | 128 |
| Φ2200 | 9 | 24×11.0×8(10,12) | 132 |
| Φ2500 | 9 | 24×11.0×8(10,12) | 140 |
| Φ3000 | 9.5 | 24×12.0×8(10,12) | 160 |
Other specifications are available upon request.
