Quick Details
-
Brand Name:
-
TS
-
Product name:
-

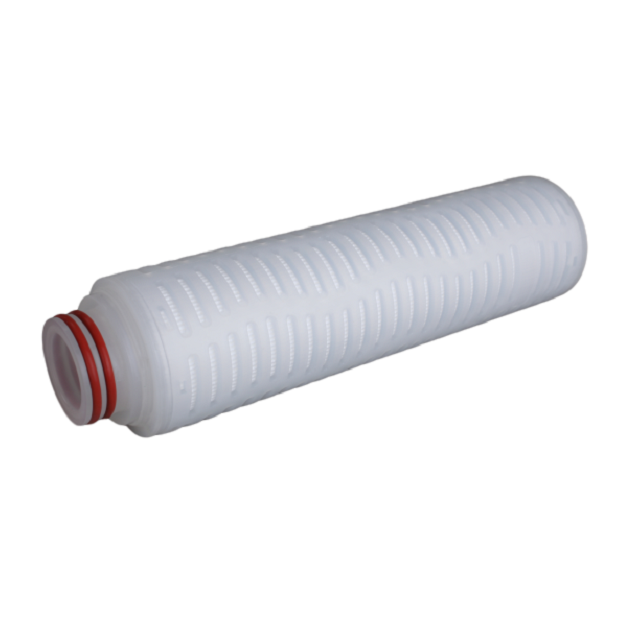

pp membrane filter cartridge for wine
-
Application:
-
wine filtration/beer fermenting filtration
-
Hot sell type:
-
PP Pleated Micro Filter Cartridge For Wine
-
Length:
-
30inches
-
Micron:
-
0.45 Micron
-
Adapter:
-
P7/ replacement of Parker
-
Certification:
-
CE; ISO9001
-
Related wine equipment 1:
-
lenticular filter housing
-
Related wine equipment 2:
-
Cartridge filter housing
-
Related wine equipment 3:
-
stainless steel wine filter
Quick Details
-
Weight (KG):
-
2
-
Core Components:
-
filter
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TS
-
Product name:
-
pp membrane filter cartridge for wine
-
Application:
-
wine filtration/beer fermenting filtration
-
Hot sell type:
-
PP Pleated Micro Filter Cartridge For Wine
-
Length:
-
30inches
-
Micron:
-
0.45 Micron
-
Adapter:
-
P7/ replacement of Parker
-
Certification:
-
CE; ISO9001
-
Related wine equipment 1:
-
lenticular filter housing
-
Related wine equipment 2:
-
Cartridge filter housing
-
Related wine equipment 3:
-
stainless steel wine filter
PRODUCT CATEGORIES
PARAMETER INFORMATION
|
Absolute rating
|
Imported polypropylene membrane which can provide absolute rating filtration.
|
|
|
Complete Polypropylene structure
|
Made of 100% high quality polypropylene material
|
|
|
Wide chemical compatibility
|
Can be used in the solvent which PH value is from 1 to 13
|
|
|
No media migration into the process fluid
|
All the material have passed the migration test
|
|
|
Effective Filtration Area
|
0.65M2 per 10"
|
|
|
Materials
|
Filter Media: Polypropylene Membrane
|
|
|
|
Support Layers: Polypropylene
|
|
|
|
Inner core: Polypropylene /SUS304
|
|
|
|
Outer Support: Polypropylene Cage
|
|
|
Cartridge Dimensions (Nominal)
|
Outer Diameter: 69mm (2.75")
|
|
|
|
Inner Diameter: 33mm (1.30")
|
|
|
|
Length: 10"- 254mm
|
|
|
|
20"- 508mm
|
|
|
|
30"-762 mm
|
|
|
|
40"- 1016mm * (Length is based on DOE Adapter)
|
|
|
Cartridge Purity
|
Free of surfactants, resins, binders and adhesives
|
|
|
|
Standard: Clean and flushed with Pyrogen-free water
|
|
|
|
Rinse: up to 17-18MΩ.cm with a minimum of throughput
|
|
|
Table 1: Typical water flow rate (10")
|
|
|
|
Typical Applications
|
Pharmaceuticals; APIs; Biologics;Fermentation Broths;Fine Chemicals;Food & Beverages, Wine, Beer, Mineral Water;Semi-Conductor,
LCD Display; Discs |
|
|
Table 2: Liquid Retention Ratings(um) Test
|
|
|
|
Operating Conditions
|
Normal Operating Temperature: Up to 60℃ (140℉)
|
|
|
|
Max.Operating Temperature.: 80℃ (172℉)at△P≤1.0 bar (14psi)
|
|
|
|
Max. Differential Pressure: Normal Flow direction 4.2 bar (60 psi) at 25℃ (77℉);Reverse flow direction 2.1 bar (30psi) at 25℃
(77℉) |
|
|
|
PH Value compatibility: 1-13
|
|
|
Sterilization
|
Steam Sterilization for 30 minutes at 121±2 ℃
|
|
|
|
Cumulative Time:15hours;OR flush with hot water at 82℃(180℉) for 30 minutes at P≤1.0 bar (14psi) -- Recommended.
|
|
|
Materials Safety
|
Meet the current ISO and 2002/72/EC standard
|
|
|
|
Endotoxin: ＜0.25 EU/ml
|
|
|
|
Extractables: 0.03g/ 10"
|
|
|
Table 3: 100% Integrity Test
|
|
|
