Folding flatbed hand platform trolley

FOB Reference Price: Get Latest Price

≥100 Pieces

US $90

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension (L x W x H):: 800x900x1060

Place of Origin:: Guangdong, China

Brand Name:: YING GUANG

Model Number:: YG-FS-011

carbon steel/ stainless steel:: certificate of CE

many colours:: stackable

Removable and Assemble:: size customized

display rack:: chrome-plated/zinc-plated

Platform Trolley:: stackable

Quick Details

Use:: Industrial

Material:: Stainless steel

Wheel:: Four-wheel

Dimension (L x W x H):: 800x900x1060

Place of Origin:: Guangdong, China

Brand Name:: YING GUANG

Model Number:: YG-FS-011

carbon steel/ stainless steel:: certificate of CE

many colours:: stackable

Removable and Assemble:: size customized

display rack:: chrome-plated/zinc-plated

Platform Trolley:: stackable

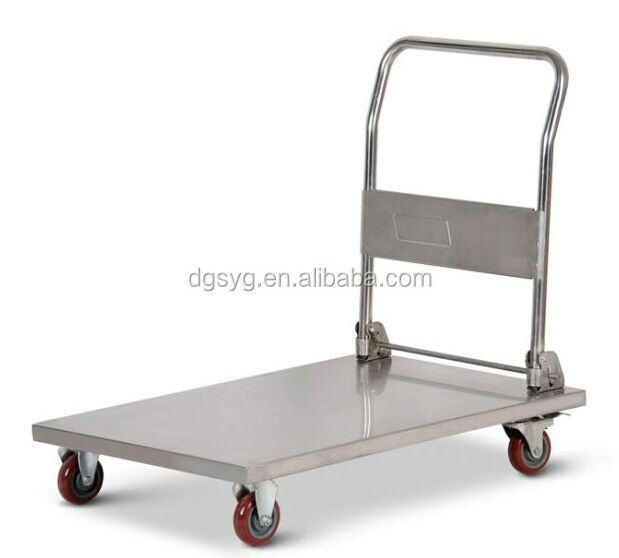

Folding flatbed hand platform trolley

Folding flatbed hand trolley profile:

The design of the small goods turnover cart is simple.According to the heavy carrying capacity and high using frquency in the warehousing logistics environment, all products adopt polyurethane casters and nylon casters, which have good bearing performance and strong wear resistance. The maximum bearing weight less than 220 kg. Stainless Steel Folding flatbed hand trolleys are double flat carts, they are mainly used in the housing goods and office facilities handling. All the casters of the warehousing logistics sery carts used in office such as corrosion goods sorting cart, shopping cart and mobile shelf, are mainly of natural rafter glue, adding other formula materials, they have good elasticity, wear resistance, no drag mark, so they have strong impact resistance. stainless steel folding platform utility trolley Caster bearing adopts the special 6201 and 6303 ball bearing, precision bearing clearance standard, making the casters have more lubrication, less rolling resistance and quiet characteristics. If you want to order, please contact us.

Model	YG-FS-011A	YG-FS-011B
Material	SUS201	SUS304	SUS201	SUS304
Size(LWH)	90060030MM		73049030MM
Load capacity	300KG		220KG
Structure	Welding
Plate Height	165MM		165MM
Handle Height	850MM		850MM
Caster Diameter	100MM
Caster Type	PU wheel,two directional,two universal with brake

Mobile platform trolley cart

1, Layer board with hem design, hem height 30MM, can effectively avoid small items slipping phenomenon due to the inertia.

2, Warehouse vehicle made of high quality stainless steel, rust protection and easy to clean.the vehicle is smooth and bright, simple and elegant.

Model	YG-0123A	YG-0123B	YG-0123C
Size(LWH)	850560950MM	700480900MM	600400850MM
Max load capacity	300KG	200KG	120KG
Handle	30*1.5MM	25*1.5MM	25*1.5MM
N.T.	17.2KG	13.6KG	10.8KG
Tray depth	30MM	30MM	30MM
Structure	Solid plate frame welding
Material	Stainless steel 304/201
Caster diameter	100MM	100MM	100MM
Caster type	PU wheel, bottom galvanized wheel frame, two directional casters, two universal with brake

Factory show

Platform Hand Trolley, Folding Platform Trolley

Features: steel frame with 4” gray castors,Loading capacity: 150 kgs,Cart body size:725L x 472W x 820H mm,

Packing: 1 pieces for each master carton, Carton size: 730L x 480W x 120/60H mm,

N.W.: 8.1 kgs,

G.W.: 9.1kgs,

Loading Quantity: 800 pieces per 20’Containe r

YG515T-S

Platform Hand Truck

Material:
Body: Aluminium Alloy(No.6063T5); Iron(A3); 5″rubber wheel(TPR. Ball bearing); Plastic: PP.

Max Loading:
300KG

Packaging:
1PC/CTN.( wheels are disassembled, the body is packed with asbest ,then is packed in a carton with the wheels and an assembly instruction)

GW/NW:
14KG/12.5KG

Body Size:
Unfolded Size:L90×W62×H96CM
Folded Size:L90×W62×H27CM
Platform Size:L90×W62CM

Model	(kg) Load	(kg) Weigh	Wheel	H	h	L	W
YG516T-S	100	8.1	4"	815	139.5	738	479

Folding Platform Trolley

Folding platform truck with flatbed non-slip platform and scuff resistant corners. Trolleys fold flat for storage and are ideal for office use with two size options available.

YG518T-S

Anti-slip platform
2 size options
300Kg Capacity
Non-marking wheels
2 swivel & 2 fixed castors
Folds flat for storage
Steel construction

Order Code	Platform Size L x W mm	Folded Height mm	Overall size (in use) H x L x W mm	Load Capacity Kg	Weight kg
YG518T-S	730 x 470	230	810 x 730 x 470	150kg	9.1Kg
YG519T-S	907 x 608	285	870 x 907 x 608	300kg	15.7Kg

Features: steel frame with 4” gray castors,Loading capacity: 150 kgs,Cart body size:725L x 472W x 820H mm,

Packing: 1 pieces for each master carton, Carton size: 730L x 480W x 120/60H mm, N.W.: 8.1 kgs, G.W.: 9.1kgs,

Loading Quantity: 800 pieces per 20’Container
