Quick Details
-
Model Number:
-
NTYT/5-1400
-
Dimension(L*W*H):
-
3200*20*17500MM
-
Weight:
-
1728KG, 1728KG
-
Warranty:
-
1 year
-
Certification:
-
SGS
-
Color:
-
Light blue
-
Tank dimension:
-
3200*20*17500MM
-
Cubage:
-
5M3
Quick Details
-
Capacity:
-
10m3.15m3.20m3
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
New Tianyuan
-
Model Number:
-
NTYT/5-1400
-
Dimension(L*W*H):
-
3200*20*17500MM
-
Weight:
-
1728KG, 1728KG
-
Warranty:
-
1 year
-
Certification:
-
SGS
-
Color:
-
Light blue
-
Tank dimension:
-
3200*20*17500MM
-
Cubage:
-
5M3

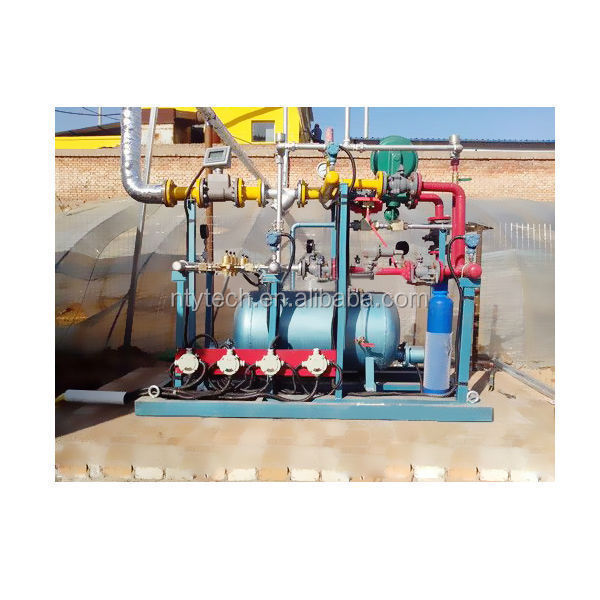

5M3 Cubage Capacity LPG Tank for LPG Skid-Mounted Station
Our company provide different kinds of metallic storage tanks, including LPG tank, liquid ammonia tank ,liquid oxygen storage tank, industrial boiler,separator pressure vessels: packed tower,plate tower,separator,absorption tower. In addition, we can also product heat exchangers , as well known heat exchanger of the township, the various types of various storage tanks, widely used in chemical industry of the reaction kettles and so on!
TANK MATERIAL: Q345R,16MnDR;
MODEL: 5m3,10m3,15m3,20 m3,30 m3,50m3,80m3,100m3,150m3,200m3
|
Item |
Unit |
Parameter |
|
Product Name |
|
Liquefied Gas Storage Tank(LPG) |
|
Brand Name |
|
New Tianyuan |
|
Model |
|
NTYT/5-1400 |
|
Tank material |
mm |
Q345R |
|
Tank Dimension |
DN3200*20*17500(inner dia*thickness*length) |
|
|
Fact cubage |
m 3 |
5 |
|
Mass in working order |
kg |
1728 |
|
Working pressure |
Mpa |
≤1.65 |
|
Testing hydraulic pressure |
2.22 |
|
|
Testing pressure for gas density |
1.77 |
|
|
Working temperature |
°C |
≤50 |
|
Other |
Tank material: Q345R, 18.47mm thick; seal cover: 18.42mm thick; pressure relief valve open pressure: 1.69Mpa; LPG density: 0.42t/m3 . Mark dangerous caution on tank. Include Safety valve, level gauge, pressure gauge, thermometer, valve, etc. |
|
Figure Photos
