Quick Details
-
Max.finalcoil height:
-
150mm
-
Controller storage capacity Programs:
-
29 sets
-
Max.taping speed:
-
120rpm
-
Tape spacing:
-
Proportional linkage
-
Supply voltage:
-
AC 220V(50Hz)
-
Mechanical dimensions:
-
9000*600*1800
-
Weight:
-
240kg
Quick Details
-
Tape width:
-
15(20,25,30)mm
-
Max.final coil.O.D:
-
130-650mm
-
Min.final coil.I.D:
-
60mm
-
Max.finalcoil height:
-
150mm
-
Controller storage capacity Programs:
-
29 sets
-
Max.taping speed:
-
120rpm
-
Tape spacing:
-
Proportional linkage
-
Supply voltage:
-
AC 220V(50Hz)
-
Mechanical dimensions:
-
9000*600*1800
-
Weight:
-
240kg

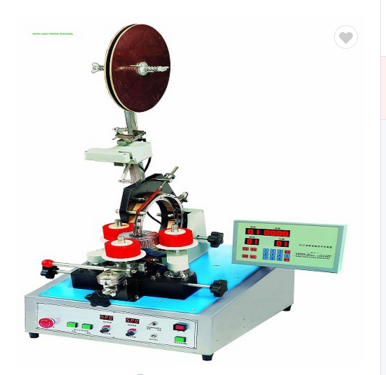

Product name:high performance toroid winder manufacturer toroidal transformer automatic coil winding machine
|
Tape width |
15(20,25,30) |
Max.taping speed |
120rpm |
|
Max.final coil.O.D |
φ130—650 |
Tape spacing |
P roportional linkage |
|
Min.final coil.I.D |
φ60 |
S upply voltage |
AC 220V(50H z ) |
|
Max.finalcoil height |
150 |
M echanical dimensions |
900 0* 6 00* 1800 |
|
Controller storage capacity Programs |
29(set ) |
W eight |
240 kg |
GWTM-1640
|
Tape width |
15(8,10,12,20) |
Max.taping speed |
200rpm |
|
Max.final coil.O.D |
φ60-200 |
Tape spacing |
P roportional linkage |
|
Min.final coil.I.D |
φ45 |
S upply voltage |
AC 220V(50H z ) |
|
Max.finalcoil height |
100 |
M echanical dimensions |
550* 5 00* 1200 |
|
Controller storage capacity Programs |
29(set ) |
W eight |
100 kg |
GWTM-1235
|
Tape width |
12(8,10,15) |
Max.taping speed |
250rpm |
|
Max.final coil.O.D |
φ50-200 |
Tape spacing |
P roportional linkage |
|
Min.final coil.I.D |
φ35 |
S upply voltage |
AC 220V(50H z ) |
|
Max.finalcoil height |
80 |
M echanical dimensions |
550* 5 00* 1100 |
|
Controller storage capacity Programs |
29(set ) |
W eight |
100 kg |
GWTM-0825
|
Tape width |
8(10,12,15) |
Max.taping speed |
250rpm |
|
Max.final coil.O.D |
φ45-200 |
Tape spacing |
P roportional linkage |
|
Min.final coil.I.D |
φ25 |
S upply voltage |
AC 220V(50H z ) |
|
Max.finalcoil height |
80 |
M echanical dimensions |
550* 5 00* 1100 |
|
Controller storage capacity Programs |
29(set ) |
W eight |
100 kg |
|
Wire diameter |
0.20—0.70 |
Max.winding speed |
700rpm |
|
Max.final coil.O.D |
φ60—200 |
Wire spacing |
Proportional linkage |
|
Min.final coil.I.D |
φ35 |
Supply voltage |
AC 220V(50Hz) |
|
Max.final c oil height |
80 |
Mechanical dimensions |
550*500*700 |
|
Controller storage capacity Programs |
29(set) |
W e ight |
83kg |
Service tenet
Provide you the best service with “fast + satisfactory + safe”.
Warranty period:
12 months long after the user received the product.
Warranty items:
Only for abnormal breakdown caused by the machine design or manufacture defect, free repair and accessory will be provided.
Technology service ability:
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Service after sell:
In order to guarantee the machine used normally, we’d have training on how to operate, use and maintain our product by English manual, video, guiding on line.
Use instruction:
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
Do ensure using the product accord to the use instruction completely. Do not exceed the scope of application of the products.
Maintain the product after use, Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should
be taken care. All done help to extend the use period.
User document management:
Establish perfect user document management in EPR system, Every product running details would be followed to manage.
The users would be taken good care.
