Quick Details
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
CE/TUV/ISO9001/ISO14001
-
Warranty:
-
5 years
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
NUUKO
-
Model Number:
-
1200W balcony solar system
-
Output Voltage (V):
-
110v/220v/230v/240v
-
Output Frequency:
-
50/60hz
-
Work Time (h):
-
24 Hours
-
Product name:
-
Complete Set Solar Energy System
-
Solar panel:
-
Efficiency Monocrystalline Silicon
-
Inverter:
-
Micro Inverter
-
Type:
-
On grid System
-
Battery:
-
Lithium battery
-
Usage:
-
Home
-
Mounting Structure:
-
Balcony
-
OEM/ODM:
-
Optional
-
Accessories:
-
Available
-
Capacity:
-
Custom
Quick Details
-
Application:
-
Balcony
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lithium Ion
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
CE/TUV/ISO9001/ISO14001
-
Warranty:
-
5 years
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
NUUKO
-
Model Number:
-
1200W balcony solar system
-
Output Voltage (V):
-
110v/220v/230v/240v
-
Output Frequency:
-
50/60hz
-
Work Time (h):
-
24 Hours
-
Product name:
-
Complete Set Solar Energy System
-
Solar panel:
-
Efficiency Monocrystalline Silicon
-
Inverter:
-
Micro Inverter
-
Type:
-
On grid System
-
Battery:
-
Lithium battery
-
Usage:
-
Home
-
Mounting Structure:
-
Balcony
-
OEM/ODM:
-
Optional
-
Accessories:
-
Available
-
Capacity:
-
Custom
Product Description
• Based on the half-cell technology, the module produces higher power output and effectively reduces the system cost; The half-cell technology helps to effectively alleviate the hot spot risk, reducing shading loss and lowering internal resistance
• To maximize the customer value by more power yield generation and less carbon emission
• Materials: high-quality A-grade solar cells. Surface made of high transmittance tempered solar glass with weatherproof coating; corrosion-resistant aluminum frame for extended outdoor use with pre-drilled mounting holes;

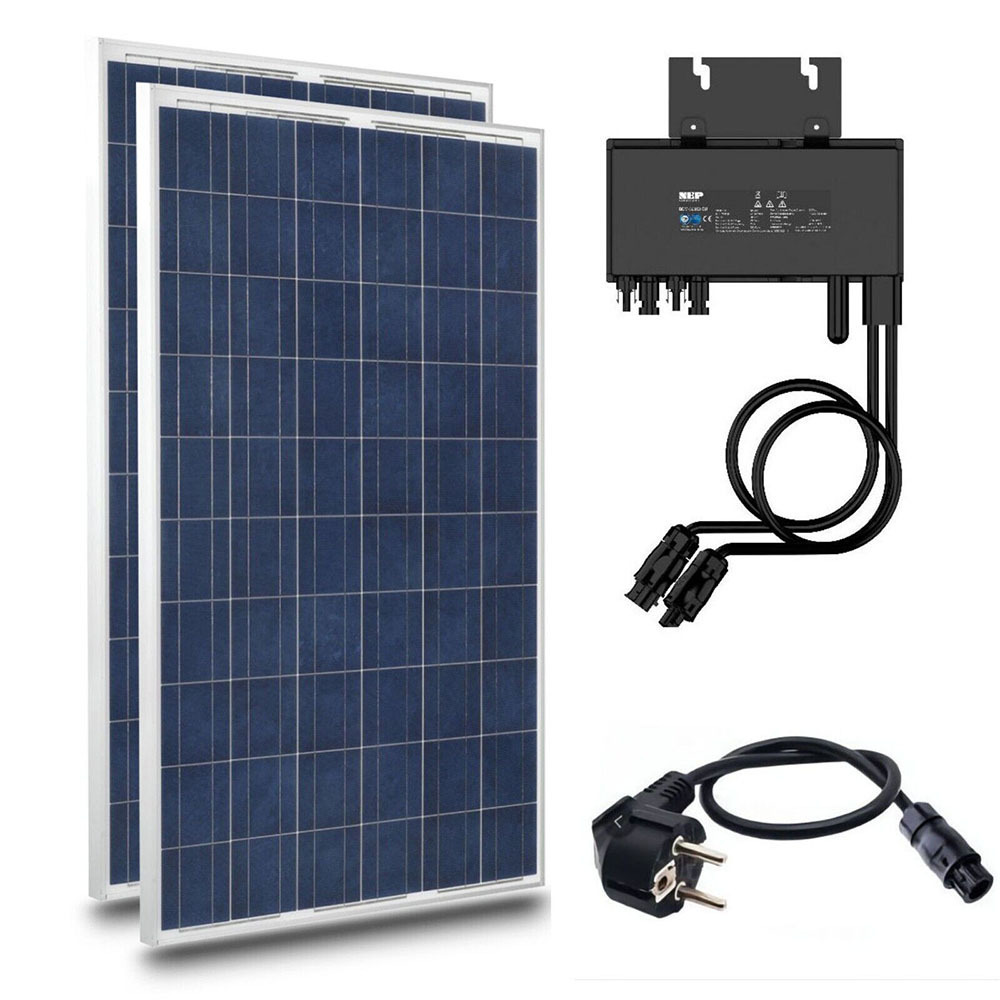

• LEFENG balcony solar system is equipped with two 410 W monocrystalline silicon solar panels, a EU plug with AC cable 1.5mm2x3, 5M length with connectors and a 800w micro inverter
• With its adjustable aluminum bracket and hookers, this solar system could be attached on your balcony or fence stably.
• To maximize the customer value by more power yield generation and less carbon emission
• Materials: high-quality A-grade solar cells. Surface made of high transmittance tempered solar glass with weatherproof coating; corrosion-resistant aluminum frame for extended outdoor use with pre-drilled mounting holes;
• LEFENG balcony solar system is equipped with two 410 W monocrystalline silicon solar panels, a EU plug with AC cable 1.5mm2x3, 5M length with connectors and a 800w micro inverter
• With its adjustable aluminum bracket and hookers, this solar system could be attached on your balcony or fence stably.
|
Item
|
400W
|
600W
|
800W
|
1200W
|
|
Solar Panel
|
1 pc of 410W Panel
|
2 pcs of 410W Panels
|
3 pcs of 410W Panels
|
4 pcs of 410W Panels
|
|
Micro Inverter
|
400W
|
600W
|
800W
|
1200W
|
|
Cable
|
EU plug with AC cable 1.5m㎡X3, 5M length
|
EU plug with AC cable 1.5m㎡X3, 5M length
|
EU plug with AC cable 1.5m㎡X3, 5M length
|
EU plug with AC cable 1.5m㎡X3, 5M length
|
|
Bracket
|
1 Set
|
1 Set
|
1 Set
|
1 Set
|
Half Cell Solar Panel-410W
Maximum Power (Pmax/W): 410
Open Circuit Voltage(Voc/V): 37.17
Short Circuit Current(Isc/A): 13.86
Maximun Power Voltage(Vmp/V): 30.80
Maximum Power Current(Imp/A): 13.15
Module Efficiency(%): 20.70
Connector: MC4 Compatible
Dimensions: 1722mm*1134mm*30mm
Open Circuit Voltage(Voc/V): 37.17
Short Circuit Current(Isc/A): 13.86
Maximun Power Voltage(Vmp/V): 30.80
Maximum Power Current(Imp/A): 13.15
Module Efficiency(%): 20.70
Connector: MC4 Compatible
Dimensions: 1722mm*1134mm*30mm
800W 220V Micro Inverter
Number of input MC4 Connector: 2sets
MPPT Voltage Range: 22V-48V
Operation Voltage Range: 20V-50V
Maximum Input Voltage: 50V
Startup Voltage: 22V
Maximum Input Power: 800W
Maximum Input Current: 10.5A
Peak Efficiency: 95%
MPPT Voltage Range: 22V-48V
Operation Voltage Range: 20V-50V
Maximum Input Voltage: 50V
Startup Voltage: 22V
Maximum Input Power: 800W
Maximum Input Current: 10.5A
Peak Efficiency: 95%
Balcony PV Mounting System
Wind Load: up to 60m/s
Snow Load: up to 1.5KN/㎡
Material: AL6005-T5 (Anodized)
Applicable Solar Module: Framed
Panel Layout: Landscape
Small Components: AL6005-T5 (Anodized)
Color: Silver or Customized
Warranty: 10-Year Warranty
Snow Load: up to 1.5KN/㎡
Material: AL6005-T5 (Anodized)
Applicable Solar Module: Framed
Panel Layout: Landscape
Small Components: AL6005-T5 (Anodized)
Color: Silver or Customized
Warranty: 10-Year Warranty
