Quick Details
-
Power (kW):
-
30 kW
-
Weight (KG):
-
600000 KG
-
Service:
-
customized
-
Control:
-
full automatic
-
Packing:
-
in Wooden Case or as You Need
-
Type of Machine:
-
Huge Frame Type Vulcanizing Press
-
Working Layer Number:
-
1
-
Heating Mode:
-
Steam, Electricity, Thermal Oil
-
Specification 1:
-
National Standard
-
Adpated Belt Width:
-
1800m
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ShunCheong
-
Voltage:
-
380V
-
Power (kW):
-
30 kW
-
Weight (KG):
-
600000 KG
-
Service:
-
customized
-
Control:
-
full automatic
-
Packing:
-
in Wooden Case or as You Need
-
Type of Machine:
-
Huge Frame Type Vulcanizing Press
-
Working Layer Number:
-
1
-
Heating Mode:
-
Steam, Electricity, Thermal Oil
-
Specification 1:
-
National Standard
-
Adpated Belt Width:
-
1800m

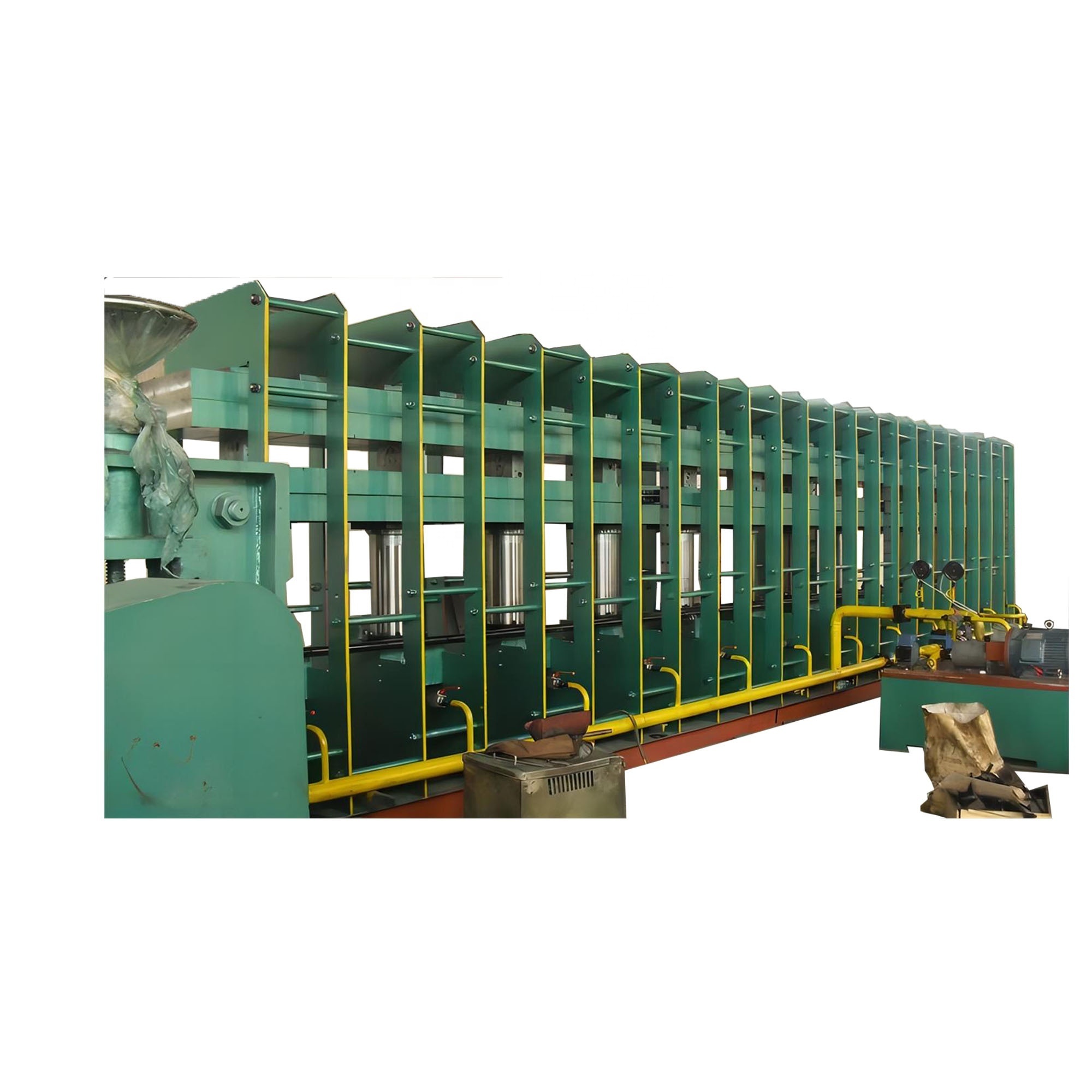

Conveyor Belt Vulcanizing Machine Host Press/V Belt Making Machine
Description:
The fabric core conveyor belt vulcanizing machine is a technologically advanced device designed for the efficient and effective vulcanization of fabric-based conveyor belts. This machine plays a crucial role in the manufacturing and maintenance of conveyor systems used in various industries such as mining, construction, and logistics.
The fabric core conveyor belt vulcanizing machine is specifically engineered to ensure the seamless joining and repair of fabric-based conveyor belts. It utilizes a combination of heat, pressure, and curing agents to create a strong and durable bond between belt sections, enabling the conveyor system to function reliably and safely.
Key Features:
Precise Temperature and Pressure Control: The vulcanizing machine features advanced temperature and pressure control mechanisms to ensure optimal vulcanization conditions. This guarantees consistent and high-quality bonding between conveyor belt segments.
Efficient Heating System: Equipped with a powerful and efficient heating system, the machine rapidly and uniformly heats the belt sections to the desired vulcanization temperature. This ensures quick processing times and reduces downtime.
User-Friendly Controls: The machine incorporates intuitive controls and a user-friendly interface, allowing operators to easily set and monitor temperature, pressure, and vulcanization time parameters. This simplifies the operation and ensures precise control over the vulcanization process.
Robust Construction: Designed for durability and long-term performance, the vulcanizing machine features a sturdy frame and high-quality components. It is built to withstand heavy usage and harsh industrial environments.
Technical Parameters:
|
|
XLB-DQ1200× 1200× 2 |
XLB-DQ1300× 2000× 1 |
XLB-Q1200× 2500× 1 |
XLB-Q1500× 2000× 1 |
XLB-Q2000× 3000× 1 |
XLB-Q1400× 5700× 1 |
|
Total pressure(MN) |
315t |
560t |
750t |
1000t |
1800t |
2800t |
|
Plate size(mm) |
1200× 1200 |
1300× 2000 |
1200× 2500 |
1500× 2500 |
2000× 3000 |
1400× 5700 |
|
Daylight (mm) |
200 |
400 |
400 |
400 |
400 |
400 |
|
No of Daylights |
2 |
1 |
1 |
1 |
1 |
1 |
|
Piston stroke(mm) |
400 |
400 |
400 |
400 |
400 |
400 |
|
Plate Unit Area pressure(kg/cm2) |
22 |
21.5 |
25 |
33.5 |
30 |
35 |
|
Main motor power(kw) |
3 |
8 |
9.5 |
11 |
26 |
43.5 |
|
Overall dimension(L× W× H) (mm) |
1685× 1320× 2450 |
2000× 1860× 2500 |
2560× 1700× 2780 |
2810× 1550× 3325 |
2900× 3200× 2860 |
2400× 5800× 3600 |
|
Weight(kg) |
9500 |
17000 |
20000 |
24000 |
66000 |
110000 |
In addition, our machineries have exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries.
If you interested in our products mentioned above. Kindly let us know by return email. Then I will supply you with further information. Meanwhile, welcome to visit our factory!
Conveyor Belt Vulcanizing Press, Fabric Core Belt Press
Packaging
Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
There are 15 experienced engineers and 108 skilled workers in our company, guaranteeing delivery on time as stipulated in the contract. At the same time, the company established a long-term cooperative relation with cosco, for ensuring the goods arriving port on time.
Our Services
Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
In the process of production, we will take photos and send to customers for their track the progress.
Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
We supply overseas engineer service and help to train your workers to operate the machine.
FAQ
1. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.
2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.
3. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.
5. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.
6. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Jiaodong airport.
We will pick up you at the airport.
