STARFLO BW2020A 115V AC Mini Unmanned Vending Drinking Machine 5 Gallon Bottled Water Dispenser Pump for Fridge Ice Maker Faucet

STARFLO BW2020A 115V AC Mini Unmanned Vending Drinking Machine 5 Gallon Bottled Water Dispenser Pump for Fridge Ice Maker Faucet

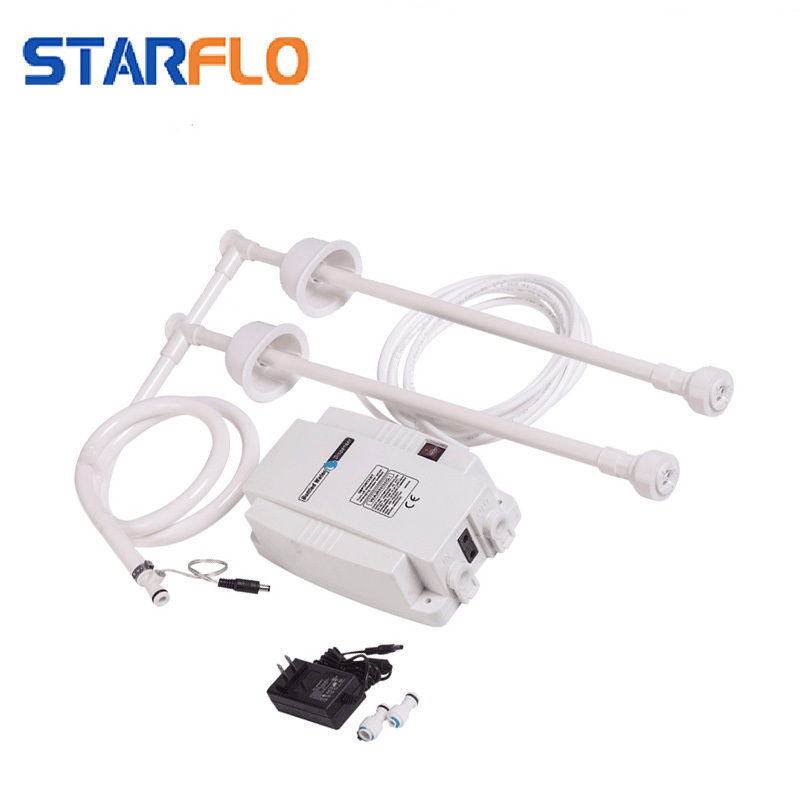

T his water dispensing pump is designed for convenience and portability. When the unit is plugged into an AC power source and a water bottle is connected to the system, fresh water is available and convenient to use.

STARFLO Bottled Water Dispensing Pump System is designed to pump water from commercially available water bottles. The system delivers the bottled water under pressure to a sink mounted drinking water faucet, or to the water inlet of a refrigerator, ice maker, coffee brewer or other equipment.

The suction wand, when inserted into the water bottle, activates the float switch on the pump.

This float switch also shuts off the system when the bottle is empty.

The wand has a build in back-flow preventor valve that prevents water in the system from flowing back into the 19 liter bottle or spilling while chance bottles.

The heard of system is the pump module that automatically adjusts the flow and presure to fill an appliance or faucet , and stop automatically.

FEATURES

• Easiest way to connect this to your filtration kit/espresso machine
• Float switch for auto shut-off when bottle is empty
• Built-in check valve to prevent back flow
• Universal seal cap fits most water containers
• Compact size for easy mounting
• Long Life Motor: Ensures years of reliable operation
• Easy installed

APPLICATION

Liquid bottle dispenser is ideal for mobile locations or home users who can't or don't want to direct plumb.  The Bottled Water Dispensing System will deliver the water under pressure to an individual drinking water faucet, the water inlet of a refrigerator for the ice-maker and chilled drinking water tap, and to certain  commercial coffee / tea brewers.

FLOW

(GPM)

PRESSURE

(PSI)

VOLTS

(V)

AMPS

(A)

DIMENSIONS

(H×W×D)

WEIGHT

(KGS)

HOW THE SYSTEM WORKS:

The Bottled Water Dispensing System was designed to pump purified water from a commercially

available 5-gallon purified water bottle. The system will deliver the water under pressure to an individual drinking water faucet,the water inlet of a refrigerator for the icemaker and chilled drinking water tap, and to certain commercial coffee / tea brewers.

When the suction wand is inserted into the standard 5-gallon bottle, it will activate the float switch on the end of the wand and turn on the pump. This same float switch shuts off the system when the bottle is empty. The wand has a built in back-flow preventor valve that prevents water in the system from flowing back into the bottle, or spilling while changing bottles.

The heart of the system is the pump module that automatically adjusts the flow and pressure to fill an appliance or faucet, and stops automatically.

The system is equipped with an automatic thermal cut-off device for additional protection.

Q: What is your MOQ?
A: 100 pieces in general, but no MOQ requirement for sample testing.

Q: Do you accept OEM/ODM service?
A: Yes. We are also the OEM/ODM supplier for many famous companies, and have different customer make their own OEM product.

Like customers' own lable and box design with customers' logo.

Q: What is your terms of payment?
A: 30% T/T in advance,70% after finish production. If you have any another question, pls feel free to contact us.

Q: Can I get some samples before place order and how long for a sample?

A: Yes, Sample order is welcome, usually the sample delivery time is within 7days.

Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 10-15 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.

Q: Can I buy different products in one container?
A: Yes, you can mix different models of pumps in one container.

Q: What is your warranty?
A: 1 year, and within 24 hours reply will be provided to solve customers' problems.

Q: How do you ship the goods ?

Q: shipping by express (sample order) and by air or by sea (bulk order), please contact before order because the freight base on quantity.

Q: What is your port of loading?
A: Shanghai port,  Ningbo port, Fuzhou port , Xiamen port.
