Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
15DTS-2C
-
Mechanical Life:
-
10 Years
-
Material and color:
-
Black tempered glass ( others customized)
-
Size:
-
86*2*86mm size, other size customized
-
communication protocol:
-
RS 485 MODBUS
-
baud rate:
-
9600/19200/38400
-
Buttons:
-
10 buttons in 1 panel
-
Colors:
-
white/black/champagne/gray, etc. customize
-
LED:
-
different LED back light option
-
touch:
-
high sensitivity touch operating
-
Light sensor:
-
customized in bulk order to be added
-
Fixed screw center distance:
-
60mm, support 2 connected mounting box install
Quick Details
-
Max. Current:
-
5A
-
Max. Voltage:
-
DC 12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
15DTS-2C
-
Mechanical Life:
-
10 Years
-
Material and color:
-
Black tempered glass ( others customized)
-
Size:
-
86*2*86mm size, other size customized
-
communication protocol:
-
RS 485 MODBUS
-
baud rate:
-
9600/19200/38400
-
Buttons:
-
10 buttons in 1 panel
-
Colors:
-
white/black/champagne/gray, etc. customize
-
LED:
-
different LED back light option
-
touch:
-
high sensitivity touch operating
-
Light sensor:
-
customized in bulk order to be added
-
Fixed screw center distance:
-
60mm, support 2 connected mounting box install

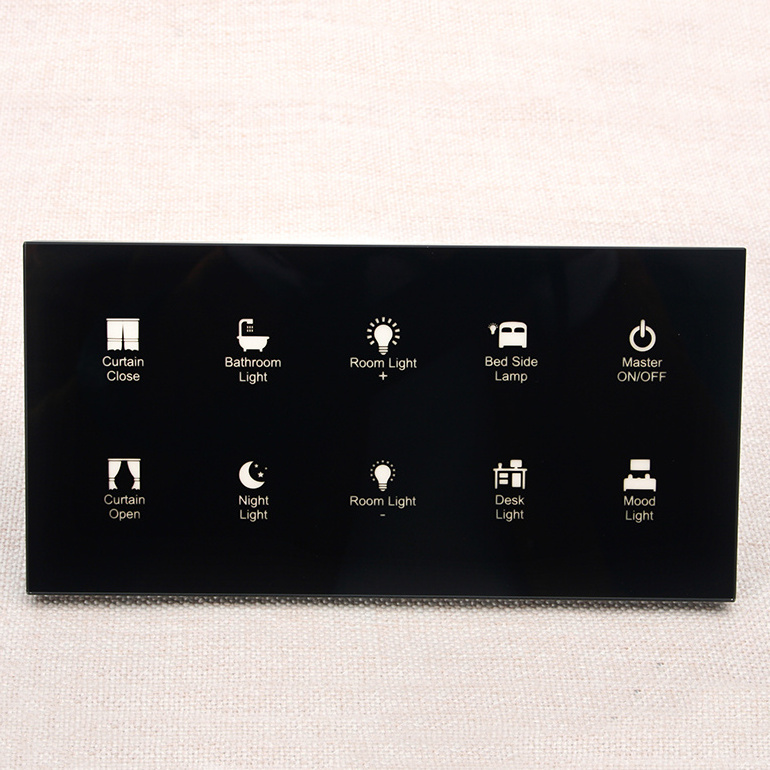

RS485 MODBUS Touch Bedside switch, 10 buttons connected panel
This is our 15D series touch switch, connected panel 86*2*86 mm size, for bedside panel using touch switch, 10 buttons. All the button content/icons can be customized as need.
Whole system is including whole solution of 1-8 gang light control touch switch, with frame option. The function can be lights control or DND/MUR service request, etc.
It is RS485 MODBUS protocol, for smart hotels/apartment using, support centralized control using software.
| Material | 100% pure Tempered glass |
| Color | black (white/silver/champagne/gray option) |
| Size | 86*86*2*35mm, 2 connected panels |
| Function buttons | 10 gang electronic touch switch/ DND MUR service button or lights control button |
| words and icons printed | With nice words or icons designed and printed, in different languages |
| Different colors LED | blue/white/red/green/yellow different colors LED option |
| High sensitivity | high sensitivity for easy operating |
| Voltage | 12V DC |
| Connect style | RS485 MOODBUS protocol communication |
| Networking centralized control | Support networking centralized control by software |
| Good software | Nice good software, easy operating, smart |
| Operating temperature | -10℃~60℃ |
| Working humidity | 0~95% |
86*172*35mm Size Tempered Glass Connected panel
This panel is 86*172*35mm size, 2 connected panel, pure tempered glass material, the size and glass color can be customized as need.
10 Buttons with Nice Design Function Buttons
There is 10 buttons nice design function buttons, for light lamp control, curtain control, dimmer, night light, mood light, bedside lamp, master control, don't disturb, make up room, etc.
All these content and icons can be designed and printed at request.
RS485 MODBUS Communication Protocol
This product is using RS485 modbus communication protocol, fashion and stable, can be customized at request.
TCP/IP Method Support Networking Centralized Control by Software
This product support TCP/IP networking centralized control using smart software. The hotel reception person can check each room each lights status, and also can be do the control directly by software, support realized different scenes.
Buzzer Function
This panel designed with buzzer function, when press the button, will a voice indicator, this is very practical and User-friendly design especially to those Vision not good people.
Rich Matched Appearance Products Choice
Nice design doorbell panel, and other touch panel available.
We can design and print make products upon different clients's request.
Whole Solution Customized
There is whole solution available, 1-8 button, nice design, lights control, dimmer/curtain/night/doorbell/master/DND/LAUNDRY/MUR/WAIT, etc.
Different Colors Tempered Glass Option
The glass color can be special made for you, white/black/gray/silver/champagne, etc.
Power off Status Memory Function
It is with power off status memory function, when power off suddenly, the panel will record the status, and once power on it will display as the same status.
Technical Data
Input voltage: 12V
Communication protocol: Modbus
Baud rate: 9600/19200/38400, 8 data bits, no parity, 1 stop bit
Product size: 86*86*42mm
Fixed screw center distance: 60mm (86mm button box)
Operating temperature: -10℃--60℃
Working humidity: 0 - 95%
Customized based on exact project is available!
